8圖樣標注
8.1在齒輪工作圖上，應標注齒輪的精度等級和側隙種類。
8.2標注示例

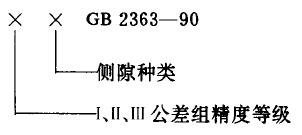

8.2.1齒輪的三個公差組精度指標，采用相同的精度等級時，標注為：
例：齒輪的Ⅰ、Ⅱ、Ⅲ公差組精度等級同為7級，側隙種類為g，標注為：
7 g GB 2363—90

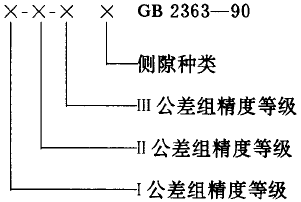

8.2.2齒輪的三個公差組精度指標，采用不同的精度等級時，標注為：
例：齒輪的Ⅰ公差組精度等級為7級，Ⅱ公差組精度等級為7級，Ⅲ公差組精度等級為6級，側隙種類為f標注為：
7—7—6 f GB2363—90
8.2.3當自行規(guī)定齒輪傳動側隙時，側隙種類不標注。此時可在相應側隙指標的公稱尺寸上標注其上下下偏差。
例：齒輪的Ⅰ、Ⅱ、Ⅲ公差組精度等級同為7級，側隙上偏差為-0.008、下偏差-0.050，標注為：
表2齒輪各檢驗項目的公差或極限偏差
|
精度
等級 |
代號 |
法向模數
mn mm |
分度圓直徑d,mm |
|
≤12 |
＞12
～20 |
＞20
～32 |
＞32
～50 |
＞50
～80 |
＞80
～125 |
＞125
～200 |
＞200
～315 |
＞315
～400 |
|
μm |
|
3 |
Fi′ |
0.1～0.5 |
7 |
7.5 |
8 |
8.5 |
9 |
10 |
11 |
12 |
13 |
|
＞0.5～1.0＜ |
7.5 |
8 |
8.5 |
9 |
10 |
11 |
12 |
13 |
14 |
|
Fi″ |
0.1～0.5 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
|
＞0.5～1.0＜ |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
13 |
|
FP |
0.1～＜1.0 |
4 |
5 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
|
FPk |
0.1～＜1.0 |
2 |
3 |
3 |
4 |
4 |
4 |
5 |
6 |
7 |
|
Fr |
0.1～0.5 |
3 |
3.5 |
4 |
4.5 |
5 |
5.5 |
6 |
6.5 |
7 |
|
＞0.5～1.0＜ |
4 |
4.5 |
4.5 |
5 |
5.5 |
6 |
6.5 |
7 |
8 |
|
fi′ |
0.1～0.5 |
3 |
3 |
3 |
2 |
2 |
2 |
2 |
2 |
2 |
|
＞0.5～1.0＜ |
4 |
4 |
4 |
3 |
3 |
3 |
3 |
3 |
3 |
|
fi″ |
0.1～0.5 |
3 |
|
＞0.5～1.0＜ |
4 |
|
fPt |
0.1～＜1.0 |
2 |
2 |
2 |
2 |
2 |
2 |
2.5 |
2.5 |
2.5 |
|
ff |
0.1～0.5 |
3 |
3 |
3 |
2 |
2 |
2 |
2 |
2 |
2 |
|
＞0.5～1.0＜ |
4 |
4 |
4 |
3 |
3 |
3 |
3 |
3 |
3 |
|
fpb |
0.1～0.5 |
1.5 |
|
＞0.5～1.0＜ |
2 |
|
Fβ |
齒寬b,mm |
≤10 |
＞10～20 |
＞20～40 |
|
公差，μm |
2 |
3 |
4 |
|
4 |
Fi′ |
0.1～0.5 |
11 |
11.5 |
12 |
13 |
14 |
15 |
17 |
19 |
21 |
|
＞0.5～1.0＜ |
11.5 |
12 |
13 |
14 |
15 |
16 |
18 |
20 |
22 |
|
Fi″ |
0.1～0.5 |
8 |
9 |
10 |
11 |
12 |
13 |
14 |
15 |
16 |
|
＞0.5～1.0＜ |
9 |
10 |
11 |
12 |
13 |
14 |
15 |
16 |
17 |
|
FP |
0.1～＜1.0 |
7 |
8 |
9 |
10 |
11 |
12 |
13 |
16 |
19 |
|
FPk |
0.1～＜1.0 |
4 |
4 |
5 |
6 |
6 |
7 |
8 |
9 |
11 |
|
Fr |
0.1～0.5 |
5 |
6 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
|
＞0.5～1.0＜ |
6 |
7 |
7 |
8 |
9 |
10 |
11 |
12 |
13 |
|
fi′ |
0.1～0.5 |
5 |
5 |
5 |
4 |
4 |
4 |
4 |
4 |
4 |
|
＞0.5～1.0＜ |
6 |
6 |
6 |
5 |
5 |
5 |
5 |
5 |
5 |
|
fi″ |
0.1～0.5 |
4 |
|
＞0.5～1.0＜ |
6 |
|
fPt |
0.1～＜1.0 |
3 |
3 |
3 |
3 |
3 |
3 |
3.5 |
4 |
4.5 |
|
ff |
0.1～0.5 |
4 |
4 |
4 |
3 |
3 |
3 |
2 |
2 |
2 |
|
＞0.5～1.0＜ |
5 |
5 |
5 |
4 |
4 |
4 |
4 |
4 |
4 |
|
fpb |
0.1～0.5 |
3 |
|
＞0.5～1.0＜ |
3.5 |
|
Fβ |
齒寬b,mm |
≤10 |
＞10～20 |
＞20～40 |
|
公差，μm |
3 |
4 |
5 |
|
5 |
Fi′ |
0.1～0.5 |
18 |
19 |
20 |
21 |
22 |
25 |
27 |
296 |
32 |
|
＞0.5～1.0＜ |
19 |
20 |
21 |
22 |
24 |
26 |
28 |
30 |
34 |
|
Fi″ |
0.1～0.5 |
15 |
16 |
17 |
18 |
19 |
20 |
22 |
24 |
26 |
|
＞0.5～1.0＜ |
17 |
18 |
19 |
20 |
21 |
22 |
24 |
26 |
28 |
|
FP |
0.1～＜1.0 |
11 |
12 |
14 |
16 |
18 |
20 |
22 |
26 |
30 |
|
FPk |
0.1～＜1.0 |
6 |
7 |
8 |
9 |
10 |
11 |
13 |
15 |
17 |
|
Fw |
0.1～＜1.0 |
4 |
5 |
6 |
7 |
8 |
10 |
12 |
14 |
16 |
|
Fr |
0.1～0.5 |
8 |
9 |
10 |
11 |
12 |
13 |
14 |
16 |
18 |
|
＞0.5～1.0＜ |
9 |
10 |
11 |
12 |
13 |
14 |
16 |
18 |
20 |
|
fi′ |
0.1～0.5 |
7 |
7 |
7 |
6 |
6 |
6 |
6 |
6 |
6 |
|
＞0.5～1.0＜ |
8 |
8 |
8 |
7 |
7 |
7 |
7 |
7 |
7 |
|
fi″ |
0.1～0.5 |
7 |
|
＞0.5～1.0＜ |
9 |
|
fPt |
0.1～＜1.0 |
3.5 |
3.5 |
4 |
4.5 |
5 |
5.5 |
6 |
7 |
7 |
|
ff |
0.1～0.5 |
6 |
6 |
6 |
5 |
5 |
5 |
4 |
4 |
4 |
|
＞0.5～1.0＜ |
7 |
7 |
7 |
6 |
6 |
6 |
5 |
5 |
5 |
|
fpb |
0.1～0.5 |
4 |
|
＞0.5～1.0＜ |
5 |
|
Fβ |
齒寬b,mm |
≤10 |
＞10～20 |
＞20～40 |
|
公差，μm |
5 |
6 |
8 |
|
6 |
Fi′ |
0.1～0.5 |
24 |
26 |
28 |
30 |
32 |
34 |
38 |
42 |
46 |
|
＞0.5～1.0＜ |
26 |
28 |
30 |
32 |
34 |
37 |
40 |
46 |
50 |
|
Fi″ |
0.1～0.5 |
21 |
22 |
24 |
26 |
28 |
30 |
32 |
34 |
36 |
|
＞0.5～1.0＜ |
24 |
25 |
26 |
28 |
30 |
32 |
34 |
36 |
38 |
|
FP |
0.1～＜1.0 |
16 |
18 |
20 |
22 |
24 |
28 |
32 |
36 |
42 |
|
FPk |
0.1～＜1.0 |
9 |
10 |
11 |
12 |
14 |
16 |
18 |
20 |
24 |
|
Fw |
0.1～＜1.0 |
6 |
7 |
8 |
10 |
12 |
14 |
16 |
18 |
22 |
|
Fr |
0.1～0.5 |
13 |
14 |
15 |
16 |
18 |
20 |
22 |
26 |
30 |
|
＞0.5～1.0＜ |
15 |
16 |
17 |
18 |
20 |
22 |
24 |
28 |
32 |
|
fi′ |
0.1～0.5 |
10 |
10 |
10 |
10 |
10 |
10 |
10 |
10 |
10 |
|
＞0.5～1.0＜ |
12 |
12 |
12 |
12 |
12 |
11 |
11 |
11 |
11 |
|
fi″ |
0.1～0.5 |
10 |
|
＞0.5～1.0＜ |
12 |
|
fPt |
0.1～＜1.0 |
5 |
5.5 |
6 |
6.5 |
7 |
8 |
9 |
10 |
11 |
|
ff |
0.1～0.5 |
8 |
8 |
8 |
7 |
7 |
7 |
6 |
6 |
6 |
|
＞0.5～1.0＜ |
10 |
10 |
10 |
9 |
9 |
8 |
8 |
8 |
8 |
|
fpb |
0.1～0.5 |
7 |
|
＞0.5～1.0＜ |
8 |
|
Fβ |
齒寬b,mm |
≤10 |
＞10～20 |
＞20～40 |
|
公差，μm |
6 |
8 |
10 |
|
7 |
Fi′ |
0.1～0.5 |
34 |
36 |
38 |
40 |
44 |
48 |
52 |
58 |
64 |
|
＞0.5～1.0＜ |
36 |
38 |
40 |
42 |
46 |
50 |
54 |
62 |
70 |
|
Fi″ |
0.1～0.5 |
30 |
32 |
34 |
36 |
38 |
40 |
42 |
45 |
48 |
|
＞0.5～1.0＜ |
34 |
36 |
38 |
40 |
42 |
44 |
46 |
48 |
52 |
|
FP |
0.1～＜1.0 |
23 |
25 |
28 |
32 |
36 |
40 |
46 |
52 |
58 |
|
FPk |
0.1～＜1.0 |
12 |
14 |
16 |
18 |
20 |
24 |
27 |
30 |
33 |
|
Fw |
0.1～＜1.0 |
8 |
10 |
12 |
14 |
16 |
20 |
24 |
28 |
32 |
|
Fr |
0.1～0.5 |
18 |
20 |
22 |
24 |
26 |
28 |
32 |
36 |
40 |
|
＞0.5～1.0＜ |
20 |
22 |
24 |
26 |
28 |
30 |
34 |
38 |
42 |
|
fi′ |
0.1～0.5 |
15 |
15 |
15 |
13 |
13 |
13 |
13 |
13 |
13 |
|
＞0.5～1.0＜ |
20 |
20 |
20 |
17 |
17 |
15 |
15 |
15 |
15 |
|
fi″ |
0.1～0.5 |
14 |
|
＞0.5～1.0＜ |
18 |
|
fPt |
0.1～＜1.0 |
7 |
8 |
9 |
10 |
11 |
12 |
13 |
14 |
15 |
|
ff |
0.1～0.5 |
11 |
11 |
11 |
10 |
10 |
9 |
9 |
9 |
9 |
|
＞0.5～1.0＜ |
13 |
13 |
13 |
12 |
12 |
11 |
11 |
11 |
11 |
|
fpb |
0.1～0.5 |
10 |
|
＞0.5～1.0＜ |
11 |
|
Fβ |
齒寬b,mm |
≤10 |
＞10～20 |
＞20～40 |
|
公差，μm |
9 |
12 |
15 |
|
8 |
Fi″ |
0.1～0.5 |
42 |
44 |
46 |
48 |
50 |
54 |
58 |
62 |
66 |
|
＞0.5～1.0＜ |
48 |
50 |
52 |
54 |
56 |
60 |
64 |
68 |
72 |
|
FP |
0.1～＜1.0 |
32 |
35 |
40 |
45 |
50 |
55 |
62 |
70 |
80 |
|
FPk |
0.1～＜1.0 |
18 |
20 |
22 |
25 |
28 |
32 |
36 |
40 |
46 |
|
Fw |
0.1～＜1.0 |
12 |
14 |
17 |
20 |
24 |
28 |
32 |
38 |
44 |
|
Fr |
0.1～0.5 |
26 |
28 |
30 |
32 |
36 |
40 |
44 |
48 |
52 |
|
＞0.5～1.0＜ |
28 |
30 |
32 |
36 |
40 |
44 |
48 |
52 |
56 |
|
fi″ |
0.1～0.5 |
20 |
|
＞0.5～1.0＜ |
25 |
|
fPt |
0.1～＜1.0 |
12 |
13 |
14 |
15 |
16 |
17 |
18 |
19 |
20 |
|
ff |
0.1～0.5 |
15 |
15 |
15 |
14 |
14 |
13 |
13 |
13 |
13 |
|
＞0.5～1.0＜ |
18 |
18 |
18 |
16 |
16 |
14 |
14 |
14 |
14 |
|
fpb |
0.1～0.5 |
14 |
|
＞0.5～1.0＜ |
15 |
|
Fβ |
齒寬b,mm |
≤10 |
＞10～20 |
＞20～40 |
|
公差，μm |
11 |
15 |
19 |
|
9 |
Fi″ |
0.1～0.5 |
54 |
56 |
58 |
60 |
62 |
65 |
70 |
75 |
80 |
|
＞0.5～1.0＜ |
62 |
64 |
66 |
68 |
70 |
75 |
80 |
85 |
90 |
|
Fw |
0.1～＜1.0 |
15 |
18 |
21 |
25 |
30 |
35 |
40 |
47 |
55 |
|
Fr |
0.1～0.5 |
32 |
34 |
37 |
40 |
45 |
50 |
55 |
60 |
65 |
|
＞0.5～1.0＜ |
35 |
37 |
40 |
45 |
50 |
55 |
60 |
65 |
70 |
|
fi″ |
0.1～0.5 |
25 |
|
＞0.5～1.0＜ |
30 |
|
fPt |
0.1～＜1.0 |
16 |
17 |
18 |
19 |
20 |
22 |
25 |
27 |
30 |
|
ff |
0.1～0.5 |
20 |
20 |
20 |
18 |
18 |
18 |
16 |
16 |
16 |
|
＞0.5～1.0＜ |
25 |
25 |
25 |
22 |
22 |
22 |
20 |
20 |
20 |
|
Fβ |
齒寬b,mm |
≤10 |
＞10～20 |
＞20～40 |
|
公差，μm |
11 |
15 |
19 |
|
10 |
Fi″ |
0.1～0.5 |
60 |
65 |
70 |
75 |
80 |
85 |
90 |
95 |
100 |
|
＞0.5～1.0＜ |
70 |
75 |
80 |
85 |
90 |
95 |
100 |
105 |
110 |
|
Fr |
0.1～0.5 |
40 |
42 |
45 |
50 |
56 |
62 |
68 |
76 |
85 |
|
＞0.5～1.0＜ |
44 |
46 |
50 |
56 |
62 |
68 |
74 |
80 |
90 |
|
fi″ |
0.1～0.5 |
30 |
|
＞0.5～1.0＜ |
35 |
|
ff |
0.1～0.5 |
25 |
25 |
25 |
23 |
23 |
23 |
20 |
20 |
20 |
|
＞0.5～1.0＜ |
30 |
30 |
30 |
27 |
27 |
27 |
25 |
25 |
25 |
|
11 |
Fr |
0.1～0.5 |
50 |
55 |
60 |
65 |
70 |
75 |
85 |
95 |
105 |
|
＞0.5～1.0＜ |
55 |
60 |
65 |
70 |
75 |
80 |
90 |
100 |
110 |
|
12 |
Fr |
0.1～0.5 |
65 |
70 |
75 |
80 |
85 |
90 |
105 |
115 |
130 |
|
＞0.5～1.0＜ |
75 |
80 |
85 |
90 |
95 |
100 |
110 |
120 |
135 |
表3 3級精度側隙指標的極限限偏差
|
分度圓
直徑
d
mm |
法向
模數
mn
mm |
|
|
|
|
側隙種類 |
|
h |
g |
f |
e |
d |
h |
g |
f |
e |
d |
h |
g |
f |
e |
d |
|
μm |
|
≤12 |
0.1～0.5 |
0
-6 |
-4
-10 |
-6
-12 |
-10
-17 |
-15
-22 |
-3
-8 |
-9
-14 |
-12
-17 |
-19
-26 |
-27
-34 |
-1
-3 |
-3
-5 |
-5
-7 |
-8
-11 |
-11
-14 |
|
＞0.5～＜1.0 |
0
-7 |
-4
-11 |
-6
-13 |
-10
-18 |
-15
-23 |
-3
-7 |
-9
-13 |
-12
-16 |
-18
-24 |
-25
-31 |
-2
-4 |
-4
-6 |
-6
-8 |
-9
-12 |
-12
-15 |
|
＞12～20 |
0.1～0.5 |
0
-7 |
-5
-12 |
-7
-14 |
-12
-20 |
-18
-26 |
-4
-9 |
-12
-17 |
-16
-21 |
-24
-32 |
-34
-42 |
-2
-4 |
-5
-7 |
-7
-9 |
-9
-12 |
-13
-16 |
|
＞0.5～＜1.0 |
0
-8 |
-5
-13 |
-7
-15 |
-12
-20 |
-18
-26 |
-4
-9 |
-12
-17 |
-15
-20 |
-21
-28 |
-31
-38 |
-2
-4 |
-5
-7 |
-7
-9 |
-9
-12 |
-13
-16 |
|
＞20～32 |
0.1～0.5 |
-1
-9 |
-7
-15 |
-10
-18 |
-15
-23 |
-23
-31 |
-6
-12 |
-17
-23 |
-23
-29 |
-30
-39 |
-45
-54 |
-2
-4 |
-6
-8 |
-8
-10 |
-11
-14 |
-17
-20 |
|
＞0.5～＜1.0 |
-1
-9 |
-7
-15 |
-10
-18 |
-15
-24 |
-23
-32 |
-5
-10 |
-15
-20 |
-20
-25 |
-29
-37 |
-42
-50 |
-2
-4 |
-6
-8 |
-8
-10 |
-12
-15 |
-17
-20 |
|
＞32～50 |
0.1～0.5 |
-1
-9 |
-8
-16 |
-12
-20 |
-17
-26 |
-27
-36 |
-6
-12 |
-19
-25 |
-27
-33 |
-35
-45 |
-54
-64 |
-2
-4 |
-7
-9 |
-10
-12 |
-13
-17 |
-20
-24 |
|
＞0.5～＜1.0 |
-1
-10 |
-8
-17 |
-12
-21 |
-27
-26 |
-27
-36 |
-7
-13 |
-19
-25 |
-26
-32 |
-34
-43 |
-51
-60 |
-3
-5 |
-7
-9 |
-10
-12 |
-13
-17 |
-20
-24 |
|
＞50～80 |
0.1～0.5 |
-1
-10 |
-9
-18 |
-14
-23 |
-21
-30 |
-31
-40 |
-7
-14 |
-22
-29 |
-32
-39 |
-43
-54 |
-63
-74 |
-3
-5 |
-8
-10 |
-11
-13 |
-15
-19 |
-22
-26 |
|
＞0.5～＜1.0 |
-1
-10 |
-9
-18 |
-14
-23 |
-21
-31 |
-31
-41 |
-6
-13 |
-20
-27 |
-30
-37 |
-42
-52 |
-61
-71 |
-3
-5 |
-8
-10 |
-11
-13 |
-16
-20 |
-23
-27 |
|
＞80～125 |
0.1～0.5 |
-2
-12 |
-12
-22 |
-17
-27 |
-26
-36 |
-38
-48 |
-10
-18 |
-29
-37 |
-39
-47 |
-54
-66 |
-78
-90 |
-3
-6 |
-10
-13 |
-13
-16 |
-19
-23 |
-27
-31 |
|
＞0.5～＜1.0 |
-2
-12 |
-12
-22 |
-17
-27 |
-26
-37 |
-38
-49 |
-9
-17 |
-28
-36 |
-38
-46 |
-53
-65 |
-77
-89 |
-3
-6 |
-10
-13 |
-13
-16 |
-19
-23 |
-27
-31 |
|
＞125～200 |
0.1～0.5 |
-2
-13 |
-14
-25 |
-19
-30 |
-30
-41 |
-46
-57 |
-10
-19 |
-34
-43 |
-44
-53 |
-63
-76 |
-95
-108 |
-4
-7 |
-12
-15 |
-15
-18 |
-22
-27 |
-33
-38 |
|
＞0.5～＜1.0 |
-2
-13 |
-14
-25 |
-19
-30 |
-30
-41 |
-46
-57 |
-10
-19 |
-33
-42 |
-43
-52 |
-62
-75 |
-92
-105 |
-4
-7 |
-12
-15 |
-15
-18 |
-22
-27 |
-33
-38 |
|
＞200～315 |
0.1～0.5 |
-3
-15 |
-17
-29 |
-23
-35 |
-37
-49 |
-55
-67 |
-13
-22 |
-40
-49 |
-53
-62 |
-77
-92 |
-113
-128 |
-5
-8 |
-14
-17 |
-18
-21 |
-27
-32 |
-39
-44 |
|
＞0.5～＜1.0 |
-3
-16 |
-17
-30 |
-23
-36 |
-37
-49 |
-55
-67 |
-14
-23 |
-41
-50 |
-54
-63 |
-76
-91 |
-111
-126 |
-5
-8 |
-15
-18 |
-19
-22 |
-27
-32 |
-39
-44 |
|
＞315～400 |
0.1～0.5 |
-4
-17 |
-21
-34 |
-28
-41 |
-44
-57 |
-64
-77 |
-15
-23 |
-49
-60 |
-62
-73 |
-92
-108 |
-131
-147 |
-6
-10 |
-17
-21 |
-22
-26 |
-32
-38 |
-45
-51 |
|
＞0.5～＜1.0 |
-4
-18 |
-21
-35 |
-28
-42 |
-44
-58 |
-64
-78 |
-16
-27 |
-50
-61 |
-63
-74 |
-93
-109 |
-132
-148 |
-6
-10 |
-17
-21 |
-22
-26 |
-32
-38 |
-46
-52 | |
|
