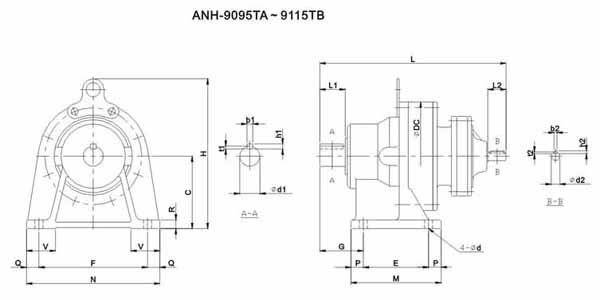

ADC系列擺線減速機尺寸圖表ANH-9095～9115
|
ANH-9095~9115尺寸圖表 | |||||||||||||||
|
ANH |
L |
C |
DC |
E |
F |
G |
H |
M |
N |
P |
Q |
R |
V |
d |
W(kg) |
|
9095TA |
243 |
100 |
150 |
90 |
150 |
60 |
207 |
134 |
184 |
17 |
17 |
12 |
41 |
11 |
14 |
|
9105TA |
257 |
100 |
150 |
90 |
150 |
60 |
207 |
134 |
184 |
17 |
17 |
12 |
41 |
11 |
17 |
|
9115TA |
293 |
120 |
204 |
115 |
190 |
82 |
257 |
159 |
234 |
22 |
22 |
15 |
56 |
14 |
28 |
|
9115TB |
312 |
120 |
204 |
115 |
190 |
82 |
257 |
159 |
234 |
22 |
22 |
15 |
56 |
14 |
31 |
|
型號 |
輸出軸尺寸 |
輸入軸尺寸 | ||||||||
|
d1 |
L1 |
b1 |
h1 |
t1 |
d2 |
L2 |
b2 |
h2 |
t1 | |
|
ANH-9095TA-Ratio |
28 |
35 |
8 |
7 |
4 |
12 |
25 |
4 |
4 |
2.5 |
|
ANH-9105TA-Ratio |
28 |
35 |
8 |
7 |
4 |
12 |
25 |
4 |
4 |
2.5 |
|
ANH-9115TA-Ratio |
38 |
55 |
10 |
8 |
5 |
12 |
25 |
4 |
4 |
2.5 |
|
ANH-9115TA-Ratio |
38 |
55 |
10 |
8 |
5 |
15 |
25 |
5 |
5 |
3 |
ADC系列擺線減速機尺寸圖表AHH-9135～9185TA
|
AHH-9135~9185TA尺寸圖表 | |||||||||||||||
|
AHH |
L |
C |
DC |
E |
F |
G |
H |
M |
N |
P |
Q |
R |
V |
d |
W(kg) |
|
9135TA |
347 |
150 |
230 |
145 |
290 |
100 |
300 |
199 |
334 |
27 |
22 |
23 |
66 |
18 |
43 |
|
9135TB |
363 |
150 |
230 |
145 |
290 |
100 |
300 |
199 |
334 |
27 |
22 |
23 |
66 |
18 |
47 |
|
9135TC |
369 |
150 |
230 |
145 |
290 |
100 |
300 |
199 |
334 |
27 |
22 |
23 |
66 |
18 |
48 |
|
9145TA |
367 |
150 |
230 |
145 |
290 |
120 |
300 |
199 |
334 |
27 |
22 |
23 |
66 |
18 |
43 |
|
9145TB |
383 |
150 |
230 |
145 |
290 |
120 |
300 |
199 |
334 |
27 |
22 |
23 |
66 |
18 |
47 |
|
9145TC |
389 |
150 |
230 |
145 |
290 |
120 |
300 |
199 |
334 |
27 |
22 |
23 |
66 |
18 |
48 |
|
9165TA |
433 |
160 |
300 |
150 |
370 |
139 |
349 |
242 |
414 |
46 |
22 |
23 |
76 |
18 |
87 |
|
9165TB |
439 |
160 |
300 |
150 |
370 |
139 |
349 |
242 |
414 |
46 |
22 |
23 |
76 |
18 |
89 |
|
9175TA |
478 |
200 |
340 |
275 |
380 |
125 |
416 |
337 |
432 |
31 |
26 |
31 |
81 |
22 |
123 |
|
9175TB |
484 |
200 |
340 |
275 |
380 |
125 |
416 |
337 |
432 |
31 |
26 |
31 |
81 |
22 |
125 |
|
9185TA |
526 |
220 |
370 |
320 |
420 |
145 |
451 |
382 |
472 |
31 |
26 |
31 |
86 |
22 |
167 |
|
型號 |
輸出軸尺寸 |
輸入軸尺寸 | ||||||||||
|
d1 |
L1 |
b1 |
h1 |
t1 |
S1 |
m1 |
d2 |
L2 |
b2 |
h2 |
t1 | |
|
AHH-9135TA-Ratio |
50 |
70 |
14 |
9 |
5.5 |
M10 |
18 |
12 |
25 |
4 |
4 |
2.5 |
|
AHH-9135TB-Ratio |
50 |
70 |
14 |
9 |
5.5 |
M10 |
18 |
15 |
25 |
5 |
5 |
3 |
|
AHH-9135TC-Ratio |
50 |
70 |
14 |
9 |
5.5 |
M10 |
18 |
15 |
25 |
5 |
5 |
3 |
|
AHH-9145TA-Ratio |
50 |
90 |
14 |
9 |
5.5 |
M10 |
18 |
12 |
25 |
4 |
4 |
2.5 |
|
AHH-9145TB-Ratio |
50 |
90 |
14 |
9 |
5.5 |
M10 |
18 |
15 |
25 |
5 |
5 |
3 |
|
AHH-9145TC-Ratio |
50 |
90 |
14 |
9 |
5.5 |
M10 |
18 |
15 |
25 |
5 |
5 |
3 |
|
AHH-9165TA-Ratio |
60 |
90 |
18 |
11 |
7 |
M10 |
18 |
15 |
25 |
5 |
5 |
3 |
|
AHH-9165TB-Ratio |
60 |
90 |
18 |
11 |
7 |
M10 |
18 |
15 |
25 |
5 |
5 |
3 |
|
AHH-9175TA-Ratio |
70 |
90 |
20 |
12 |
7.5 |
M12 |
24 |
15 |
25 |
5 |
5 |
3 |
|
AHH-9175TB-Ratio |
70 |
90 |
20 |
12 |
7.5 |
M12 |
24 |
15 |
25 |
5 |
5 |
3 |
|
AHH-9185TA-Ratio |
80 |
110 |
22 |
14 |
9 |
M12 |
24 |
15 |
25 |
5 |
5 |
3 |

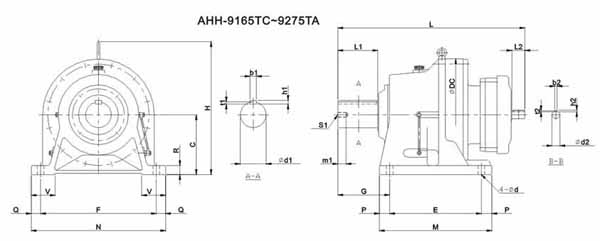

ADC系列擺線減速機尺寸圖表AHH-9165TC～9275TA
|
AHH-9165TC~9275TA尺寸圖表 | |||||||||||||||
|
AHH |
L |
C |
DC |
E |
F |
G |
H |
M |
N |
P |
Q |
R |
V |
d |
W(kg) |
|
9165TC |
462 |
160 |
300 |
150 |
370 |
139 |
349 |
242 |
414 |
46 |
22 |
26 |
75 |
18 |
95 |
|
9175TC |
509 |
200 |
340 |
275 |
380 |
125 |
416 |
337 |
432 |
31 |
26 |
30 |
80 |
22 |
130 |
|
9185TB |
577 |
220 |
370 |
320 |
420 |
145 |
451 |
382 |
472 |
31 |
26 |
30 |
85 |
22 |
185 |
|
9195TA |
629 |
250 |
430 |
380 |
480 |
170 |
531 |
442 |
532 |
31 |
26 |
36 |
90 |
26 |
242 |
|
9195TB |
653 |
250 |
430 |
380 |
480 |
170 |
531 |
442 |
532 |
31 |
26 |
36 |
90 |
26 |
250 |
|
9205TA |
670 |
250 |
448 |
360 |
440 |
215 |
530 |
442 |
532 |
41 |
46 |
36 |
100 |
26 |
262 |
|
9205TB |
705 |
250 |
448 |
360 |
440 |
215 |
530 |
442 |
532 |
41 |
46 |
36 |
100 |
26 |
275 |
|
9215TA |
731 |
265 |
485 |
395 |
480 |
210 |
575 |
477 |
582 |
41 |
51 |
40 |
110 |
26 |
355 |
|
9215TB |
780 |
265 |
485 |
395 |
480 |
210 |
575 |
477 |
582 |
41 |
51 |
40 |
110 |
26 |
378 |
|
9225TA |
773 |
280 |
526 |
420 |
540 |
230 |
610 |
522 |
622 |
51 |
41 |
40 |
115 |
33 |
430 |
|
9225TB |
860 |
280 |
526 |
420 |
540 |
230 |
610 |
522 |
622 |
51 |
41 |
40 |
115 |
33 |
478 |
|
9235TA |
883 |
300 |
562 |
460 |
580 |
260 |
667 |
562 |
672 |
51 |
46 |
46 |
120 |
33 |
550 |
|
9235TB |
938 |
300 |
562 |
460 |
580 |
260 |
667 |
562 |
672 |
51 |
46 |
46 |
120 |
33 |
585 |
|
9245TA |
921 |
335 |
614 |
480 |
630 |
263 |
729 |
582 |
722 |
51 |
46 |
46 |
130 |
39 |
658 |
|
9245TB |
975 |
335 |
614 |
480 |
630 |
263 |
729 |
582 |
722 |
51 |
46 |
46 |
130 |
39 |
688 |
|
9255TA |
1081 |
375 |
670 |
520 |
670 |
320 |
815 |
632 |
782 |
56 |
56 |
50 |
140 |
39 |
1012 |
|
9255TB |
1133 |
375 |
670 |
520 |
670 |
320 |
815 |
632 |
782 |
56 |
56 |
50 |
140 |
39 |
1090 |
|
9265TA |
1243 |
400 |
736 |
590 |
770 |
390 |
874 |
702 |
882 |
56 |
56 |
55 |
160 |
45 |
1340 |
|
9275TA |
1504 |
540 |
950 |
420 |
1050 |
485 |
1161 |
1040 |
1162 |
100 |
56 |
60 |
200 |
45 |
2482 |
|
型號 |
輸出軸尺寸 |
輸入軸尺寸 | ||||||||||
|
d1 |
L1 |
b1 |
h1 |
t1 |
S1 |
m1 |
d2 |
L2 |
b2 |
h2 |
t1 | |
|
AHH-9165TC-Ratio |
60 |
90 |
18 |
11 |
7 |
M10 |
18 |
18 |
35 |
6 |
6 |
3.5 |
|
AHH-9175TC-Ratio |
70 |
90 |
20 |
12 |
7.5 |
M12 |
24 |
18 |
35 |
6 |
6 |
3.5 |
|
AHH-9185TB-Ratio |
80 |
110 |
22 |
14 |
9 |
M12 |
24 |
22 |
40 |
6 |
6 |
3.5 |
|
AHH-9195TA-Ratio |
95 |
135 |
25 |
14 |
9 |
M20 |
34 |
18 |
35 |
6 |
6 |
3.5 |
|
AHH-9195TB-Ratio |
95 |
135 |
25 |
14 |
9 |
M20 |
34 |
22 |
40 |
6 |
6 |
3.5 |
|
AHH-9205TA-Ratio |
100 |
165 |
28 |
16 |
10 |
M20 |
34 |
18 |
35 |
6 |
6 |
3.5 |
|
AHH-9205TB-Ratio |
100 |
165 |
28 |
16 |
10 |
M20 |
34 |
22 |
40 |
6 |
6 |
3.5 |
|
AHH-9215TA-Ratio |
110 |
165 |
28 |
16 |
10 |
M20 |
34 |
22 |
40 |
6 |
6 |
3.5 |
|
AHH-9215TB-Ratio |
110 |
165 |
28 |
16 |
10 |
M20 |
34 |
30 |
45 |
8 |
7 |
4 |
|
AHH-9225TA-Ratio |
120 |
165 |
32 |
18 |
11 |
M20 |
34 |
22 |
40 |
6 |
6 |
3.5 |
|
AHH-9225TB-Ratio |
120 |
165 |
32 |
18 |
11 |
M20 |
34 |
35 |
55 |
10 |
8 |
5 |
|
AHH-9235TA-Ratio |
130 |
200 |
32 |
18 |
11 |
M24 |
41 |
30 |
45 |
8 |
7 |
4 |
|
AHH-9235TB-Ratio |
130 |
200 |
32 |
18 |
11 |
M24 |
41 |
40 |
65 |
12 |
8 |
5 |
|
AHH-9245TA-Ratio |
140 |
200 |
36 |
20 |
12 |
M24 |
41 |
30 |
45 |
8 |
7 |
4 |
|
AHH-9245TB-Ratio |
140 |
200 |
36 |
20 |
12 |
M24 |
41 |
40 |
65 |
12 |
8 |
5 |
|
AHH-9255TA-Ratio |
160 |
240 |
40 |
22 |
13 |
M30 |
49 |
35 |
55 |
10 |
8 |
5 |
|
AHH-9255TB-Ratio |
160 |
240 |
40 |
22 |
13 |
M30 |
49 |
45 |
70 |
14 |
9 |
5.5 |
|
AHH-9265TA-Ratio |
170 |
300 |
40 |
22 |
13 |
M30 |
49 |
45 |
70 |
14 |
9 |
5.5 |
|
AHH-9275TA-Ratio |
180 |
330 |
45 |
25 |
15 |
M30 |
52 |
45 |
70 |
14 |
9 |
5.5 |

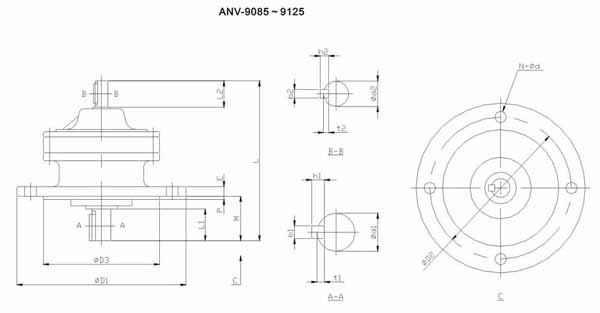

ADC系列擺線減速機尺寸圖表ANV-9085～9125
|
ANV-9085~9125尺寸圖表 | |||||||||||
|
ANV |
L |
D1 |
D2 |
D3 |
H |
M |
E |
P |
N |
d |
W(kg) |
|
9085 |
151 |
160 |
134 |
110 |
- |
42 |
9 |
3 |
4 |
11 |
4.7 |
|
9095 |
202 |
160 |
134 |
110 |
107 |
48 |
9 |
3 |
4 |
11 |
9.2 |
|
9105 |
208 |
160 |
134 |
110 |
107 |
48 |
9 |
3 |
4 |
11 |
11 |
|
9115 |
259 |
210 |
180 |
140 |
137 |
69 |
13 |
4 |
6 |
11 |
23 |
|
9125 |
259 |
210 |
180 |
140 |
137 |
69 |
13 |
4 |
6 |
11 |
23 |
|
型號 |
輸出軸尺寸 |
輸入軸尺寸 | ||||||||
|
d1 |
L1 |
b1 |
h1 |
t1 |
d2 |
L2 |
b2 |
h2 |
t2 | |
|
ANV-9085-Ratio |
18 |
30 |
6 |
6 |
3.5 |
12 |
25 |
4 |
4 |
2.5 |
|
ANV-9095-Ratio |
28 |
35 |
8 |
7 |
4 |
15 |
25 |
5 |
5 |
3 |
|
ANV-9105-Ratio |
28 |
35 |
8 |
7 |
4 |
15 |
25 |
5 |
5 |
3 |
|
ANV-9115-Ratio |
38 |
55 |
10 |
8 |
5 |
18 |
35 |
6 |
6 |
3.5 |
|
ANV-9125-Ratio |
38 |
55 |
10 |
8 |
5 |
18 |
35 |
6 |
6 |
3.5 |

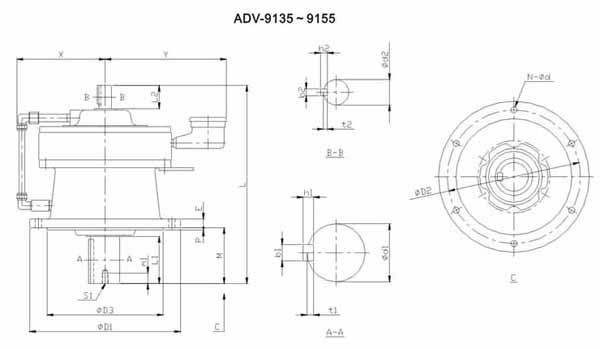

ADC系列擺線減速機尺寸圖表ADV-9135～9155
|
ADV-9135~9155尺寸圖表 | ||||||||||||
|
ADV |
L |
D1 |
D2 |
D3 |
M |
E |
P |
N |
d |
X |
Y |
W(kg) |
|
9135 |
321 |
260 |
230 |
200 |
76 |
15 |
4 |
6 |
11 |
155 |
210 |
43 |
|
9145 |
341 |
260 |
230 |
200 |
96 |
15 |
4 |
6 |
11 |
155 |
210 |
44 |
|
9155 |
341 |
260 |
230 |
200 |
96 |
15 |
4 |
6 |
11 |
155 |
210 |
44 |
|
型號 |
輸出軸尺寸 |
輸入軸尺寸 | ||||||||||
|
d1 |
L1 |
b1 |
h1 |
t1 |
S1 |
M1 |
d2 |
L2 |
b2 |
h2 |
T1 | |
|
ADV-9135-Ratio |
50 |
61 |
14 |
9 |
5.5 |
M10 |
18 |
22 |
40 |
6 |
6 |
3.5 |
|
ADV-9145-Ratio |
50 |
81 |
14 |
9 |
5.5 |
M10 |
18 |
22 |
40 |
6 |
6 |
3.5 |
|
ADV-9155-Ratio |
50 |
81 |
14 |
9 |
5.5 |
M10 |
18 |
22 |
40 |
6 |
6 |
3.5 |

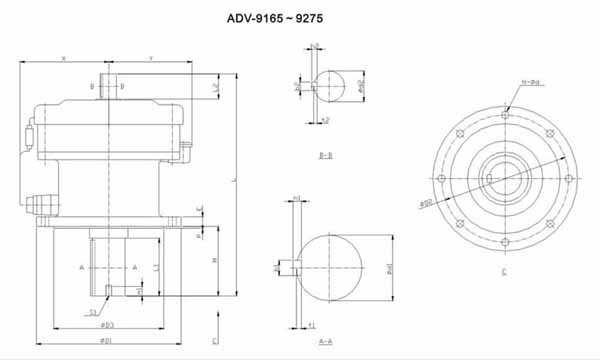

ADC系列擺線減速機尺寸圖表ADV-9165～9275
|
ADV-9165~9275尺寸圖表 | ||||||||||||
|
ADV |
L |
D1 |
D2 |
D3 |
M |
E |
P |
N |
d |
X |
Y |
W(kg) |
|
9165 |
413 |
400 |
310 |
270 |
89 |
20 |
4 |
6 |
11 |
218 |
200 |
80 |
|
9175 |
477 |
400 |
360 |
316 |
94 |
22 |
5 |
8 |
14 |
224 |
227 |
127 |
|
9185 |
527 |
430 |
390 |
345 |
110 |
22 |
5 |
8 |
18 |
238 |
242 |
152 |
|
9195 |
620 |
490 |
450 |
400 |
145 |
30 |
6 |
12 |
18 |
266 |
272 |
226 |
|
9205 |
678 |
455 |
405 |
355 |
204 |
30 |
5 |
8 |
22 |
342 |
290 |
245 |
|
9215 |
708 |
490 |
440 |
390 |
203 |
35 |
7 |
8 |
24 |
340 |
308 |
315 |
|
9225 |
752 |
535 |
475 |
415 |
210 |
35 |
10 |
8 |
27 |
355 |
328 |
400 |
|
9235 |
839 |
570 |
510 |
450 |
250 |
40 |
10 |
8 |
27 |
360 |
345 |
475 |
|
9245 |
877 |
635 |
560 |
485 |
250 |
40 |
10 |
8 |
33 |
372 |
372 |
570 |
|
9255 |
1040 |
685 |
610 |
535 |
295 |
45 |
10 |
8 |
33 |
428 |
400 |
868 |
|
9265 |
1150 |
750 |
660 |
570 |
360 |
50 |
10 |
8 |
39 |
462 |
432 |
1126 |
|
9275 |
1462 |
1160 |
1020 |
900 |
355 |
60 |
10 |
8 |
39 |
612 |
615 |
2610 |
|
型號 |
輸出軸尺寸 |
輸入軸尺寸 | ||||||||||
|
d1 |
L1 |
b1 |
h1 |
t1 |
S1 |
m1 |
d2 |
L2 |
b2 |
h2 |
T1 | |
|
ADV-9165-Ratio |
60 |
80 |
18 |
11 |
7 |
M10 |
18 |
30 |
45 |
8 |
7 |
4 |
|
ADV-9175-Ratio |
70 |
84 |
20 |
12 |
7.5 |
M12 |
24 |
35 |
55 |
10 |
8 |
5 |
|
ADV-9185-Ratio |
80 |
100 |
22 |
14 |
9 |
M12 |
24 |
40 |
65 |
12 |
8 |
5 |
|
ADV-9195-Ratio |
95 |
125 |
25 |
14 |
9 |
M20 |
34 |
45 |
70 |
14 |
9 |
5.5 |
|
ADV-9205-Ratio |
100 |
165 |
28 |
16 |
10 |
M20 |
34 |
45 |
82 |
14 |
9 |
5.5 |
|
ADV-9215-Ratio |
110 |
165 |
28 |
16 |
10 |
M20 |
34 |
50 |
82 |
14 |
9 |
5.5 |
|
ADV-9225-Ratio |
120 |
165 |
32 |
18 |
11 |
M20 |
34 |
55 |
82 |
16 |
10 |
6 |
|
ADV-9235-Ratio |
130 |
200 |
32 |
18 |
11 |
M24 |
41 |
60 |
105 |
18 |
11 |
7 |
|
ADV-9245-Ratio |
140 |
200 |
36 |
20 |
12 |
M24 |
41 |
65 |
105 |
18 |
11 |
7 |
|
ADV-9255-Ratio |
160 |
240 |
40 |
22 |
13 |
M30 |
49 |
80 |
130 |
22 |
14 |
9 |
|
ADV-9265-Ratio |
170 |
300 |
40 |
22 |
13 |
M30 |
49 |
80 |
130 |
22 |
14 |
9 |
|
ADV-9275-Ratio |
180 |
320 |
45 |
25 |
15 |
M30 |
52 |
90 |
150 |
25 |
14 |
9 |
潤滑
推薦用油脂

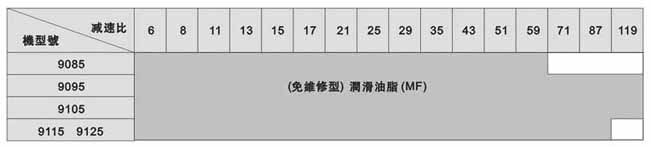

因?yàn)橄卤硭懈餍吞枬櫥途言诔鰪S前為您裝潢，故您可直接使用，而不必再加油。
推薦用油脂
|
環境溫度
℃ |
|
擺線傳動 |
|
|
1）
表7和表8中 所示免維修型 |
2）
除（1）所示以外機型號 | ||
|
殼牌油 |
Cosmo油 |
殼牌油 | |
|
-10~50 |
ALVANIA 愛萬利油脂
RA |
COSMO油脂
DYNAMAX SH2 |
ALVANIA 愛萬利
油脂2 |
推薦用潤滑油
|
環境溫度 |
Gulf海灣牌 |
Esso牌 |
Mobil美孚牌 |
Shell殼牌 |
Caltex牌 |
Bp牌 |
|
-10℃~50℃ |
EP潤滑劑
HD 68 |
Spartan
EP 68 |
美孕齒輪油 626
（lsoVG 68） |
Omala 可耐壓
68 |
|
Energol
GP-XP 68 |
|
0℃~35℃ |
EP潤滑劑
HD 100
HD150 |
Spartan
EP 100
EP 150 |
美孚齒輪油
627 629
(IsoVG 100,150) |
Omala 可耐壓
100 150 |
Meropa
100 150 |
Energol
GP-XP 100
GP-XP 150 |
|
30℃~50℃ |
EP潤滑劑
HD 220
HD 320
HD 460 |
Spartan
EP 220
EP 320
EP 460 |
美孕齒輪油
630 632
633 634
(IsoVG220~460) |
Omala 可耐壓
220 320
460 |
Meropa
220 320
460 |
Energol
GR-XP220
GR-XP320
GR-XP460 |
注：（1）如在冬季或在溫度相當?shù)偷沫h(huán)境中使用，請按不同溫度選用表中相應低粘度潤滑油。
（2）如需在非0℃~40℃環境溫度下連續使用，請向我司咨詢。

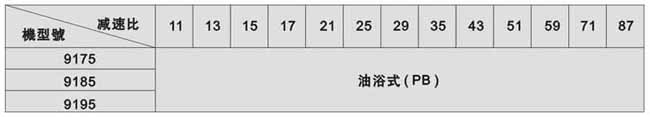

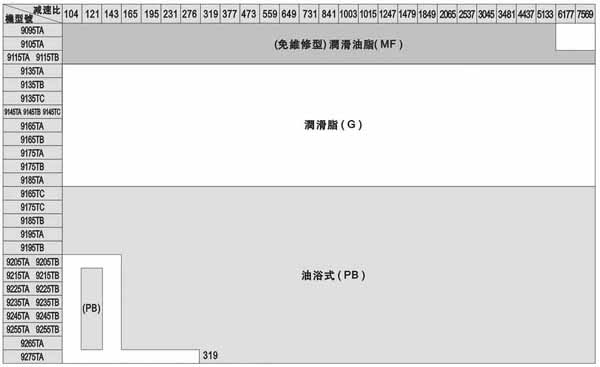

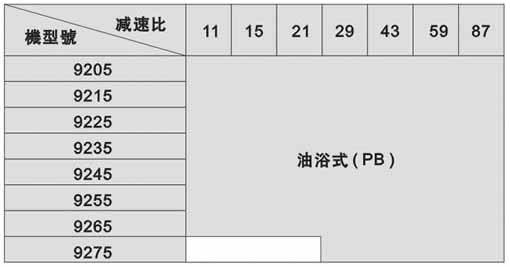

b）兩級減速

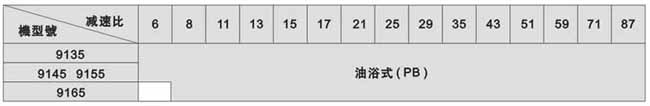

注：此表所列為輸入轉速為標準轉速情況下，標準潤滑方式。
立式安裝（如低速軸方向向上時，請向我司咨詢）

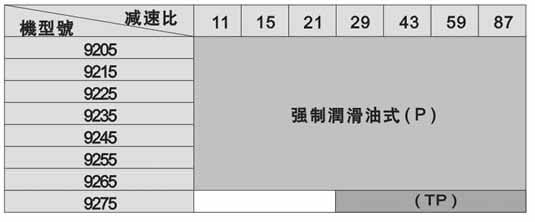

a)一級減速
TP：定量泵強制潤滑（見表9）

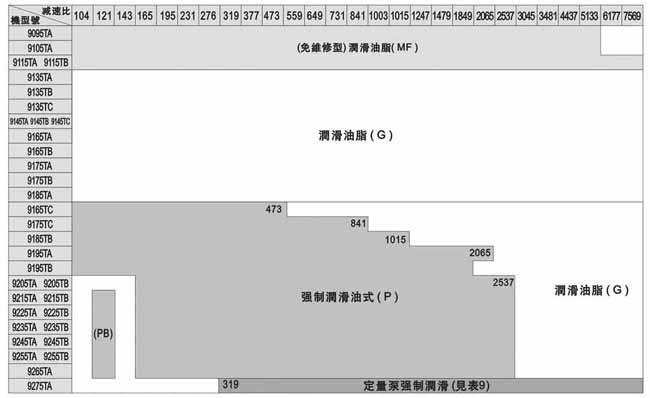

b) 兩級減速
注：此表所列為輸入轉速為標準轉速情況下，標準潤滑方式。
擺線泵型
|
擺線 |
次擺線泵 | |||||
|
型式 |
機型號 |
減速比 |
泵型號 |
泵電機 |
50HZ
排放量L/min 最大壓力kg/cm | |
|
立式 |
9275 |
29,43,59,87 |
TOP216HA-VB3 |
0.75KW 4極 |
24.0 |
8 |
|
9275TA |
全部速比 |
TOP204HA-VB3 |
0.4KW 4極 |
6.0 |
16 | |
| 頁次：5/6 每頁10條 共54條信息 分頁：[1][2][3][4][5][6] |
