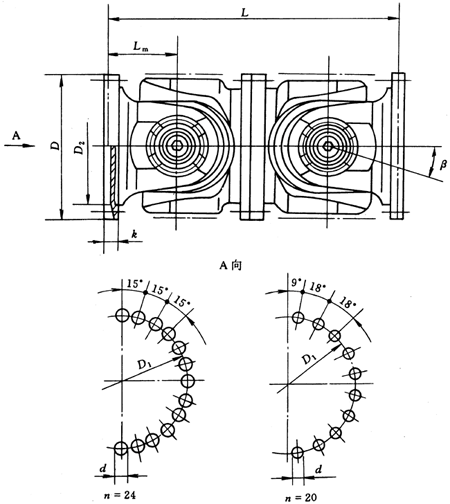

WD型大規格無伸縮短式萬向聯軸器外形安裝尺寸
WD型大規格無伸縮短式萬向聯軸器基本參數和主要尺寸（JB/T5513-91）/mm
|
型號 |
回轉直
徑D |
公稱轉矩
Tn/kN·m |
疲勞轉矩
Tf/kN·m |
軸線折
角β≤ |
Lmin |
D1
(js11) |
D2 |
Lm |
n-d |
k |
|
β=5° |
β=10° |
β=5° |
β=10° |
|
SWC680WD |
680 |
1400 |
710 |
5°, 10° |
1340 |
1440 |
635 |
550 |
335 |
360 |
24-25 |
55 |
|
SWC780WD |
780 |
2500 |
1250 |
1480 |
1620 |
725 |
640 |
370 |
405 |
24-31 |
62 |
|
SWC840WD |
840 |
3150 |
1600 |
1700 |
1920 |
775 |
710 |
425 |
480 |
24-38 |
70 |
|
SWC920WD |
920 |
4000 |
2000 |
1840 |
1920 |
855 |
760 |
460 |
480 |
24-38 |
80 |
|
SWC1000WD |
1000 |
5000 |
2500 |
2060 |
2140 |
915 |
840 |
515 |
535 |
20-50 |
90 |
|
SWC1100WD |
1100 |
6310 |
3150 |
2280 |
2400 |
1015 |
920 |
570 |
600 |
20-50 |
100 |
|
SWC1200WD |
1200 |
8000 |
4000 |
2480 |
2640 |
1100 |
1000 |
620 |
660 |
20-58 |
110 |
注：Tf為在交變負荷下按疲勞強度所允許的轉矩。
端面齒形尺寸及螺栓預緊力矩（JB/T5513-91）/mm
|
型號 |
回轉直
徑D |
螺栓
數n |
螺栓規格
d×L |
預緊力矩
Tn/N·m |
齒數Z |
b |
h |
h1 |
f |
R |
l |
t |
D1 |
α |
|
SWC680 |
680 |
24 |
M24×140 |
850 |
120 |
8.909 |
4.734 |
12.452 |
0.29 |
2.5 |
10 |
14 |
550 |
1°40′ |
|
SWC780 |
780 |
24 |
M30×160 |
1700 |
144 |
8.513 |
3.961 |
11.366 |
0.52 |
2.5 |
15 |
13 |
640 |
2° |
|
SWC840 |
840 |
24 |
M36×180 |
2960 |
144 |
9.168 |
4.861 |
13.166 |
0.52 |
2.5 |
15 |
15 |
710 |
2° |
|
SWC920 |
920 |
24 |
M36×200 |
2960 |
144 |
10.042 |
6.061 |
15.566 |
0.52 |
2.5 |
15 |
17 |
760 |
2° |
|
SWC1000 |
1000 |
20 |
M48×240 |
7160 |
180 |
8.73 |
4.059 |
11.961 |
0.72 |
2.5 |
15 |
13 |
840 |
2°44′43″ |
|
SWC1100 |
1100 |
20 |
M48×260 |
7160 |
180 |
9.603 |
5.258 |
14.36 |
0.72 |
2.5 |
15 |
16 |
920 |
2°44′43″ |
|
SWC1200 |
1200 |
20 |
M56×280 |
11500 |
180 |
10.476 |
6.457 |
16.578 |
0.72 |
2.5 |
15 |
18 |
1000 |
2°44′43″ | |
|
