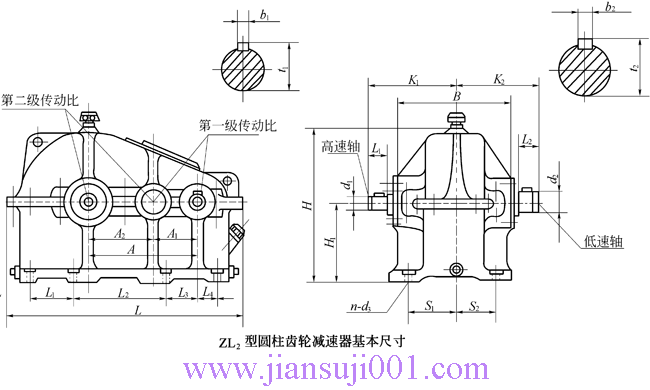

產品展示
|
型號 |
中心距 |
外形尺寸 |
地腳尺寸 |
重量 |
|
A |
A1 |
A2 |
L |
H |
H1 |
K1 |
K2 |
B |
d1 |
d2 |
l1 |
l2 |
b1 |
b2 |
t1 |
t2 |
l1 |
l2 |
l3 |
l4 |
s1 |
s2 |
n |
d3 |
|
ZL2--25 |
250 |
100 |
150 |
550 |
355 |
180 |
245 |
290 |
300 |
22 |
42 |
70 |
100 |
6 |
12 |
24.5 |
45.5 |
95 |
240 |
60 |
35 |
125 |
125 |
8 |
17 |
143 |
|
ZL2-35 |
350 |
150 |
200 |
750 |
455 |
230 |
280 |
350 |
350 |
25 |
55 |
80 |
100 |
8 |
16 |
28 |
60 |
130 |
310 |
90 |
40 |
145 |
145 |
8 |
17 |
260 |
|
ZL2-40 |
400 |
150 |
250 |
840 |
560 |
280 |
310 |
400 |
400 |
25 |
70 |
80 |
110 |
8 |
20 |
28 |
76 |
130 |
410 |
90 |
40 |
165 |
165 |
8 |
22 |
462 |
|
ZL2-50 |
500 |
200 |
300 |
1040 |
675 |
350 |
350 |
430 |
450 |
35 |
85 |
85 |
110 |
12 |
24 |
38.5 |
92 |
200 |
420 |
150 |
50 |
190 |
190 |
8 |
26 |
635 |
|
ZL2-60 |
600 |
250 |
350 |
1200 |
767 |
400 |
400 |
475 |
500 |
40 |
100 |
90 |
140 |
12 |
28 |
43.5 |
108 |
250 |
500 |
170 |
80 |
215 |
215 |
8 |
26 |
815 |
|
ZL2-65 |
650 |
250 |
400 |
1310 |
875 |
450 |
420 |
530 |
550 |
40 |
110 |
90 |
160 |
12 |
32 |
43.5 |
119 |
250 |
600 |
170 |
80 |
235 |
235 |
8 |
32 |
1155 |
|
ZL2-75 |
750 |
300 |
450 |
1450 |
960 |
500 |
470 |
570 |
600 |
55 |
120 |
100 |
180 |
16 |
32 |
60 |
129 |
300 |
650 |
200 |
100 |
260 |
260 |
8 |
32 |
1350 |
|
ZL2-85 |
850 |
350 |
500 |
1620 |
1060 |
550 |
530 |
660 |
700 |
65 |
140 |
110 |
200 |
18 |
36 |
70.5 |
150 |
350 |
690 |
250 |
100 |
300 |
300 |
8 |
40 |
2142 |
|
ZL2-100 |
1000 |
400 |
600 |
1870 |
1185 |
600 |
500 |
670 |
700 |
70 |
160 |
125 |
220 |
20 |
40 |
76 |
171 |
600 |
600 |
305 |
95 |
310 |
310 |
8 |
40 |
2500 |
|
ZL2-115 |
1150 |
450 |
700 |
2180 |
1460 |
750 |
630 |
630 |
1000 |
85 |
190 |
140 |
240 |
24 |
45 |
92 |
202 |
480 |
950 |
350 |
130 |
370 |
370 |
8 |
45 |
3900 |
|
ZL2-130 |
1300 |
500 |
800 |
2490 |
1620 |
850 |
700 |
700 |
1100 |
100 |
210 |
160 |
250 |
28 |
50 |
108 |
224 |
700 |
735 |
595 |
190 |
415 |
415 |
8 |
45 |
4500 |
ZL2型圓柱齒輪二級
減速器傳動比表：
|
傳動比代號 |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
|
總傳動比 |
9.423 |
10.35 |
11.411 |
12.635 |
14.603 |
15.75 |
17.775 |
20.49 |
23.34 |
26.91 |
|
傳動比代號 |
11 |
12 |
13 |
14 |
15 |
16 |
17 |
18 |
19 |
|
|
總傳動比 |
29.05 |
31.495 |
34.317 |
36.862 |
40.165 |
44.018 |
48.571 |
54.036 |
60.714 |
|
