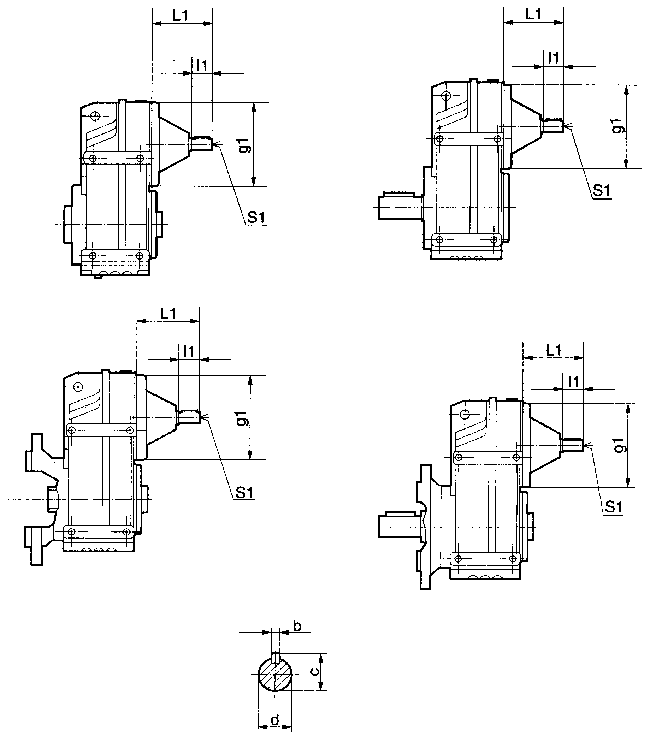

MP..系列平行軸斜齒輪減速機的安裝尺寸
|
型號 |
安裝尺寸 |
軸伸尺寸 |
外形尺寸 |
|
A0 |
a2
B0 |
e |
S |
A1 |
L5 |
S1
H0 |
l |
d |
c
b |
f |
h1
n |
07
P3 |
K |
L2 |
|
MP37 |
77 |
31
115 |
95 |
M10 |
22.5 |
11 |
M8
74 |
50 |
25k6 |
28
8 |
135 |
112
20 |
169
250 |
166 |
|
|
MP47 |
93 |
43
145 |
109 |
M10 |
31 |
15 |
M10
80 |
60 |
30k6 |
33
8 |
165 |
128.1
20 |
180
272 |
198 |
|
MP57 |
102 |
55
170 |
126 |
M12 |
30.5 |
17 |
M12
93 |
70 |
35k6 |
38
10 |
195 |
136
25 |
200
317 |
221 |
|
MP67 |
112 |
60
190 |
131 |
M16 |
38 |
17 |
M12
97 |
80 |
40k6 |
43
12 |
215 |
159.5
25 |
217
343 |
252 |
|
MP77 |
140 |
70
240 |
165 |
M16 |
37.5 |
26 |
M16
121 |
100 |
50k6 |
53.5
14 |
275 |
200
35 |
279
426 |
294 |
|
MP87 |
165 |
100
310 |
195 |
M20 |
43 |
26 |
M16
152 |
120 |
60m6 |
64
18 |
350 |
246.7
40 |
330
531 |
349 |
|
MP97 |
205 |
120
350 |
240 |
M20 |
50.5 |
28 |
M20
178 |
140 |
70m6 |
74.5
20 |
400 |
285
50 |
400
623 |
412 |
|
MP107 |
220 |
125
400 |
260 |
M24 |
76.5 |
36 |
M24
200 |
170 |
90m6 |
95
25 |
460 |
332.4
60 |
450
717 |
491 |
|
MP127 |
270 |
142
450 |
316 |
M24 |
81 |
45 |
M30
236 |
210 |
110m6 |
116
28 |
520 |
382.6
70 |
530
856 |
586 |
|
MP157 |
310 |
170
540 |
364 |
M24 |
111 |
55 |
M36
286 |
210 |
120m6 |
127
32 |
620 |
447
80 |
660
1021 |
662 |
MPA系列平等軸齒輪減速機的安裝尺寸
|
型號 |
安裝尺寸 |
軸伸尺寸 |
外形尺寸 |
|
a10 |
f4 |
C4 |
a9 |
H0 |
X3 |
L9 |
S4
M |
d2 |
d3 |
e |
L1 |
f |
L8 |
d |
c
b |
K
d7 |
09
P3 |
07
08 |
k8
k9 |
h1 |
L2 |
|
MPA37 |
31.5 |
2.5 |
12 |
158 |
74 |
7.5 |
17 |
14
M10 |
40 |
12.5 |
5 |
20 |
1 |
105 |
30H7 |
33.3
8 |
116
45 |
123
250 |
169
120 |
30
41.5 |
112 |
|
|
MPA47 |
32 |
3 |
12 |
170 |
80 |
14 |
22 |
14
M12 |
40 |
12.5 |
5 |
20 |
1.8 |
130 |
35H7 |
38.3
10 |
138
50 |
153
272 |
180
150 |
22
54 |
128.1 |
|
MPA57 |
40.5 |
1 |
14 |
198 |
93 |
19.5 |
29 |
14
M16 |
40 |
12.5 |
5 |
20 |
2.4 |
142 |
40H7 |
43.3
12 |
150
55 |
170
317 |
210
166 |
31
60 |
136 |
|
MPA67 |
41 |
3.5 |
16 |
218 |
97 |
12.5 |
29 |
14
M16 |
40 |
12.5 |
5 |
20 |
3 |
156 |
40H7 |
43.3
12 |
172
55 |
184
343 |
217
180 |
52
67 |
159.5 |
|
MPA77 |
50 |
4 |
20 |
278 |
121 |
12 |
32 |
22
M16 |
60 |
21 |
10 |
30 |
3.2 |
183 |
50H7 |
53.8
14 |
194
70 |
213
426 |
275
210 |
49
76 |
200 |
|
MPA87 |
62 |
4 |
26 |
346 |
152 |
20.5 |
36 |
22
M20 |
60 |
21 |
10 |
30 |
4.5 |
210 |
60H7 |
64.4
18 |
229
85 |
243
531 |
330
240 |
57
85 |
246.7 |
|
MPA97 |
70 |
4 |
30 |
395 |
178 |
28 |
34 |
26
M20 |
80 |
25 |
12 |
40 |
5 |
270 |
70H7 |
74.9
20 |
272
95 |
303
623 |
400
300 |
88
100 |
285 |
|
MPA107 |
87.5 |
2.5 |
36 |
485 |
200 |
32.5 |
40 |
26
M24 |
80 |
25 |
12 |
40 |
6 |
310 |
90H7 |
95.4
25 |
321
120 |
353
717 |
450
350 |
105
121 |
332.4 |
|
MPA127 |
110 |
2.5 |
40 |
550 |
236 |
30 |
38 |
33
M24 |
100 |
32 |
15 |
60 |
9 |
370 |
100H7 |
106.4
28 |
376
135 |
413
856 |
530
410 |
138
153 |
382.6 |
|
MPA157 |
150 |
7 |
45 |
660 |
286 |
98 |
36 |
33
M24 |
120 |
32 |
15 |
60 |
9 |
500 |
120H7 |
127.4
32 |
455
155 |
503
1021 |
660
500 |
170
140 |
447 |

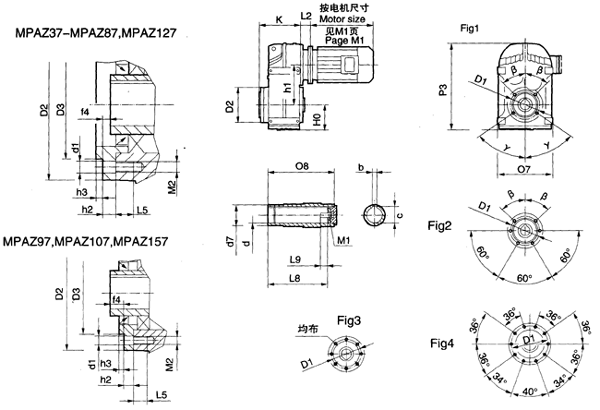

MPAZ系列平等軸齒輪減速機的安裝尺寸
|
型號 |
安裝尺寸 |
軸伸尺寸 |
外形尺寸 |
|
H0 |
D1 |
Fig |
β
γ |
f4 |
L5 |
h2
h3 |
M2
d1 |
d |
c
b |
L8
L9 |
M1 |
K
d7 |
O7
O8 |
h1
P3 |
D2
D3 |
L2 |
|
MPAZ37 |
74 |
94 |
1 |
45°
53° |
9 |
11 |
11.5
3 |
M8
9 |
30H7 |
33.3
8 |
105
17 |
M10×25－8.8 |
128
45 |
169
120 |
112
250 |
110
80j6 |
|
|
MPAZ47 |
80 |
102 |
1 |
50°
45° |
8 |
15 |
11
3 |
M10
11 |
35H7 |
38.3
10 |
130
22 |
M10×25－8.8 |
149
50 |
180
150 |
128.1
272 |
120
80j6 |
|
MPAZ57 |
93 |
125 |
2 |
47°
— |
9 |
17 |
12
3.5 |
M12
13.5 |
40H7 |
43.3
12 |
142
29 |
M16×40－8.8 |
162
55 |
200
166 |
136
317 |
155
105j6 |
|
MPAZ67 |
97 |
125 |
1 |
45°
45° |
8.5 |
17 |
12
3.5 |
M12
13.5 |
40H7 |
43.3
12 |
156
29 |
M16×40－8.8 |
184
55 |
217
180 |
159.5
343 |
155
105j6 |
|
MPAZ77 |
121 |
142 |
2 |
40°
— |
10 |
17 |
14
3.5 |
M12
13.5 |
50H7 |
53.8
14 |
183
32 |
M16×45－8.8 |
207.5
70 |
275
210 |
200
426 |
170
125j6 |
|
MPAZ87 |
152 |
178 |
2 |
45°
— |
11 |
25 |
15
4 |
M16
17.5 |
60H7 |
64.4
18 |
210
36 |
M20×50－8.8 |
229
85 |
330
240 |
246.7
531 |
215
155j6 |
|
MPAZ97 |
178 |
200 |
2 |
30°
— |
8 |
20 |
18
4 |
M16
17.5 |
70H7 |
74.9
20 |
270
34 |
M20×50－8.8 |
272
95 |
400
300 |
285
623 |
250
160j6 |
|
MPAZ107 |
200 |
255 |
3 |
—
— |
0.5 |
25 |
22
4 |
M16
17.5 |
90H7 |
95.4
25 |
310
40 |
M24×60－8.8 |
321
120 |
450
350 |
332.4
717 |
300
210j6 |
|
MPAZ127 |
236 |
300 |
3 |
—
— |
5 |
25 |
30
5 |
M16
17.5 |
100H7 |
106.4
28 |
370
38 |
M24×60－8.8 |
381
135 |
530
410 |
382.6
856 |
350
250h6 |
|
MPAZ157 |
286 |
340 |
4 |
—
— |
14 |
35 |
28
5 |
M24
26 |
120H7 |
32
127.4 |
457
36 |
M24×60－8.8 |
455
155 |
660
500 |
447
1021 |
400
290h6 |
MPAF系列平等軸齒輪減速機的安裝尺寸
|
型號 |
安裝尺寸 |
軸伸尺寸 |
外形尺寸 |
|
S1
H0 |
Fig |
D2 |
L8
L9 |
D1 |
R
M |
d |
c
b |
l |
O
O7 |
O9
P3 |
D |
C1 |
K |
h1 |
d7 |
L2 |
|
MPAF37 |
9
74 |
1 |
110h7 |
105
17 |
130 |
3.5
M10 |
30H7 |
33.3
8 |
24 |
60
169 |
123
250 |
160 |
10 |
140 |
112 |
45 |
電機尺寸 |
|
MPAF47 |
9
80 |
1 |
130h7 |
130
22 |
165 |
3.5
M12 |
35H7 |
38.3
10 |
24.5 |
75
180 |
153
272 |
200 |
12 |
162 |
128.1 |
50 |
|
MPAF57 |
13.5
93 |
1 |
180h7 |
142
29 |
215 |
4
M16 |
35H7 |
43.3
12 |
23.5 |
83
200 |
170
317 |
250 |
15 |
177 |
136 |
55 |
|
MPAF67 |
13.5
97 |
1 |
180h7 |
156
29 |
215 |
4
M16 |
40H7 |
43.3
12 |
23 |
90
217 |
184
343 |
250 |
15 |
195 |
159.5 |
55 |
|
MPAF77 |
13.5
121 |
1 |
230h7 |
183
32 |
265 |
4
M16 |
50H7 |
53.8
14 |
37 |
105
279 |
213
426 |
300 |
16 |
231 |
200 |
70 |
|
MPAF87 |
18
152 |
1 |
250h7 |
210
36 |
300 |
5
M20 |
60H7 |
64.4
18 |
30 |
120
330 |
243
531 |
350 |
18 |
259 |
246.7 |
85 |
|
MPAF97 |
18
178 |
2 |
350h7 |
270
34 |
400 |
5
M20 |
70H7 |
74.9
20 |
41.5 |
150
400 |
303
623 |
450 |
22 |
314 |
285 |
95 |
|
MPAF107 |
18
200 |
2 |
350h7 |
310
40 |
400 |
5
M24 |
90H7 |
95.4
25 |
41 |
175
450 |
353
717 |
450 |
22 |
362 |
332.4 |
120 |
|
MPAF127 |
18
236 |
2 |
450h7 |
370
38 |
500 |
5
M24 |
100H7 |
106.4
28 |
51 |
205
530 |
413
856 |
550 |
25 |
427 |
382.6 |
135 |
|
MPAF157 |
22
286 |
2 |
550h7 |
460
36 |
600 |
6
M24 |
120H7 |
127.4
32 |
60 |
250
660 |
503
1021 |
660 |
28 |
521 |
447 |
155 |

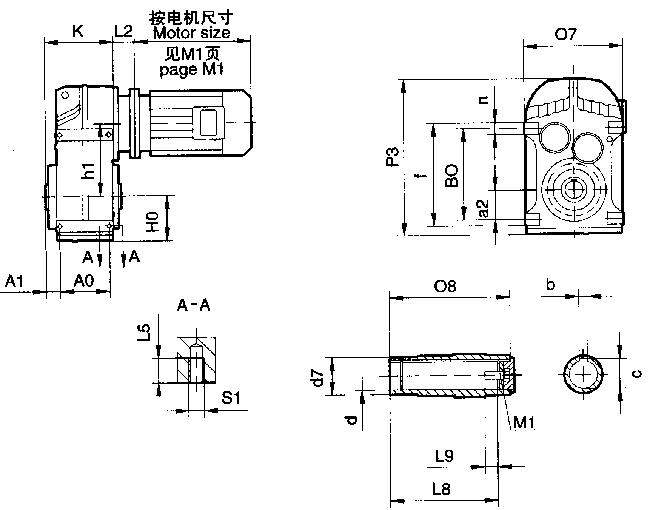

MPAB系列平等軸齒輪減速機的安裝尺寸
|
型號 |
安裝尺寸 |
軸伸尺寸 |
外形尺寸 |
|
A1
A0 |
a2
BO |
S1
H0 |
L5 |
d |
c
b |
L8
L9 |
M1 |
f |
h1
n |
O7
P3 |
O8
d7 |
K |
L2 |
|
MPAB37 |
22.5
77 |
31
115 |
M8
74 |
11 |
30H7 |
33.3
8 |
105
17 |
M10×25－8.8 |
135 |
112
20 |
169
250 |
120
45 |
166 |
電機尺寸 |
|
MPAB47 |
31
93 |
43
145 |
M10
80 |
15 |
35H7 |
38.3
10 |
130
22 |
M10×25－8.8 |
165 |
128.1
20 |
180
272 |
150
50 |
138 |
|
MPAB57 |
33.5
102 |
55
170 |
M12
80 |
17 |
40H7 |
43.3
12 |
142
29 |
M16×40－8.8 |
195 |
136
25 |
200
317 |
166
55 |
150 |
|
MPAB67 |
38
112 |
60
190 |
M12
97 |
17 |
40H7 |
43.3
12 |
156
29 |
M16×40－8.8 |
215 |
159.5
25 |
217
343 |
180
55 |
172 |
|
MPAB77 |
37.5
140 |
70
240 |
M16
121 |
26 |
50H7 |
53.8
14 |
183
32 |
M16×45－8.8 |
275 |
200
35 |
279
426 |
210
70 |
194 |
|
MPAB87 |
43
165 |
100
310 |
M16
152 |
26 |
60H7 |
64.4
18 |
210
36 |
M20×50－8.8 |
350 |
246.7
40 |
330
531 |
240
85 |
229 |
|
MPAB97 |
50.5
205 |
120
350 |
M20
178 |
28 |
70H7 |
74.9
20 |
270
34 |
M20×50－8.8 |
400 |
285
50 |
400
623 |
300
95 |
272 |
|
MPAB107 |
76.5
220 |
125
400 |
M24
200 |
36 |
90H7 |
95.4
25 |
310
40 |
M24×60－8.8 |
460 |
332.4
60 |
450
717 |
350
120 |
321 |
|
MPAB127 |
81
270 |
142
450 |
M30
236 |
45 |
100H7 |
106.4
28 |
370
38 |
M24×60－8.8 |
520 |
382.6
70 |
530
856 |
410
135 |
376 |
|
MPAB157 |
118
310 |
170
540 |
M36
250 |
55 |
120H7 |
127.4
32 |
457
36 |
M24×60－8.8 |
620 |
447
80 |
660
1021 |
500
155 |
455 |
MPF系列平等軸齒輪減速機的安裝尺寸
|
型號 |
安裝尺寸 |
軸伸尺寸 |
外形尺寸 |
|
D1 |
Fig |
D2 |
R |
S1 |
S |
c |
b |
d |
l |
D |
C1 |
K |
h1 |
L2 |
|
MPF37 |
130 |
1 |
110h7 |
3.5 |
9 |
M10 |
28 |
8 |
25k6 |
50 |
160 |
10 |
190 |
112 |
電機尺寸 |
|
MPF47 |
165 |
1 |
130h7 |
3.5 |
9 |
M10 |
33 |
8 |
30k6 |
60 |
200 |
12 |
222 |
128.1 |
|
MPF57 |
215 |
1 |
180h7 |
4 |
13.5 |
M12 |
38 |
10 |
35k6 |
70 |
250 |
15 |
243 |
136 |
|
MPF67 |
215 |
1 |
180h7 |
4 |
13.5 |
M16 |
43 |
12 |
40k6 |
80 |
250 |
15 |
275 |
159.5 |
|
MPF77 |
265 |
1 |
230h7 |
4 |
13.5 |
M16 |
53.5 |
14 |
50k6 |
100 |
300 |
16 |
331 |
200 |
|
MPF87 |
300 |
1 |
250h7 |
5 |
18 |
M20 |
64 |
18 |
60m6 |
120 |
350 |
18 |
379 |
246.7 |
|
MPF97 |
400 |
2 |
350h7 |
5 |
18 |
M20 |
74.5 |
20 |
70m6 |
140 |
450 |
22 |
454 |
285 |
|
MPF107 |
400 |
2 |
350h7 |
5 |
18 |
M24 |
95 |
25 |
90m6 |
170 |
450 |
22 |
532 |
332.4 |
|
MPF127 |
500 |
2 |
450h7 |
5 |
18 |
M24 |
116 |
28 |
110m6 |
210 |
550 |
25 |
637 |
382.6 |
|
MPF157 |
600 |
2 |
550h7 |
6 |
22 |
M24 |
127 |
32 |
120m6 |
210 |
660 |
28 |
725 |
447 |
注：其它尺寸見MP系列。
MP..MD..型系列平等軸斜齒輪的安裝尺寸
|
型號 |
L1 |
P3 |
H0 |
L2 |
|
MP..37MD17 |
145.5 |
59 |
76 |
電機尺寸 |
|
MP..47MD17 |
145.5 |
59 |
76 |
|
MP..57MD37 |
150.5 |
61 |
94 |
|
MP..67MD37 |
150.5 |
61 |
94 |
|
MP..77MD37 |
151 |
61 |
94 |
|
MP..87MD57 |
189 |
72 |
121 |
|
MP..97MD57 |
190 |
72 |
121 |
|
MP..107MD77 |
227 |
88 |
144 |
|
MP..127MD77 |
227 |
88 |
144 |
|
MP..127MD87 |
274 |
115 |
184 |
|
MP..157MD97 |
323 |
144 |
230 |
注：其它尺寸見MP系列。
MP..S系列平等軸斜齒輪減速機的安裝尺寸
|
型號 |
d |
L1 |
l1 |
S1 |
c |
b |
g1 |
|
MP..S37 |
16k6 |
115 |
40 |
M5 |
18 |
5 |
120 |
|
MP..S47 |
16k6 |
115 |
40 |
M5 |
18 |
5 |
120 |
|
MP..S57 |
19k6 |
120 |
40 |
M6 |
21.5 |
6 |
160 |
|
MP..S67 |
19k6 |
120 |
40 |
M6 |
21.5 |
6 |
160 |
|
MP..S77 |
24k6 |
140 |
50 |
M8 |
27 |
8 |
200 |
|
MP..S87 |
28k6 |
180 |
60 |
M10 |
31 |
8 |
250 |
|
MP..S97 |
38k6 |
220 |
80 |
M12 |
41 |
10 |
300 |
|
MP..S107 |
42k6 |
270 |
110 |
M16 |
45 |
12 |
350 |
|
MP..S127 |
55m6 |
297 |
110 |
M20 |
59 |
16 |
450 |
|
MP..S157 |
70m6 |
374 |
140 |
M20 |
74.5 |
20 |
550 |
注：其它尺寸見MP系列。
| 頁次：4/4 每頁10條 共38條信息 分頁：[1][2][3][4] |
国产又粗又猛又大的视频
|
久久日韩乱码一二三四区别
|
亚洲高清视频免费观看
|
国产精品99久久久久久久鸭无压
|
精品久久视频
|
