產品展示

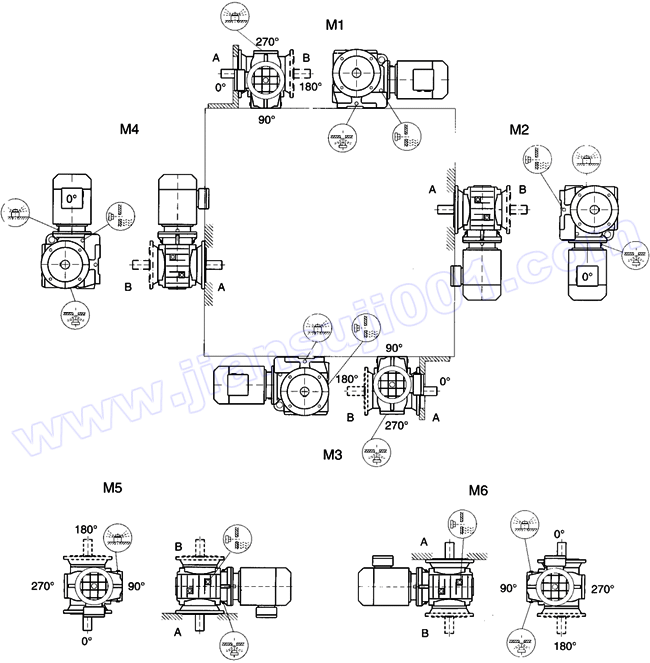

WSF/WSAF47-97安裝形式圖

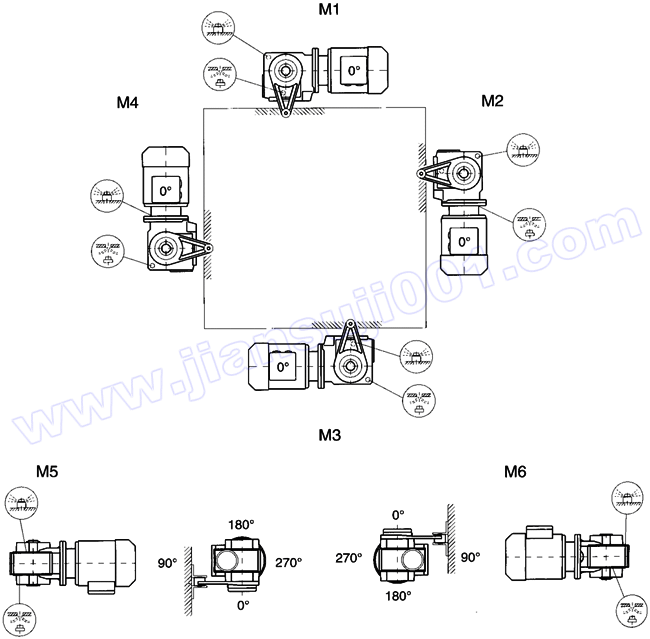

WSA37/WSAT37安裝形式圖

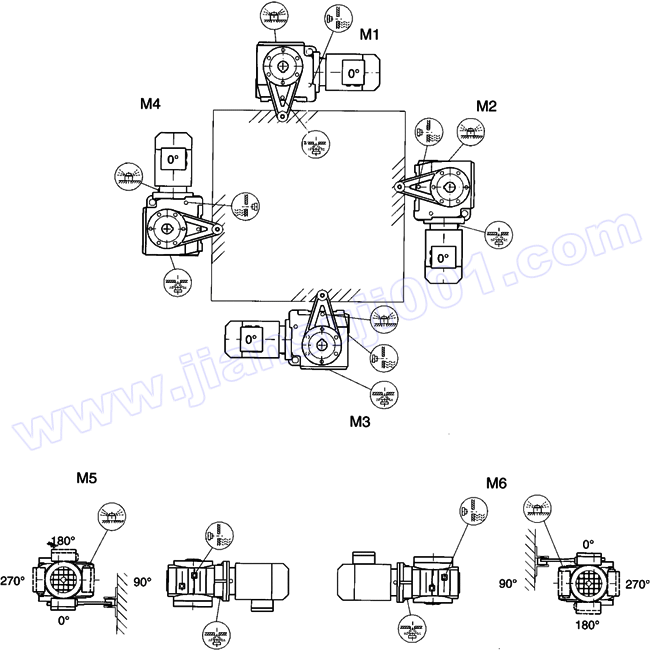

WSA/WSAT47-97安裝形式圖
|
電動機功率
（kW） |
輸出轉速
（r/min） |
輸出轉矩
（N·m） |
傳動比
（i） |
使用系數
（fB） |
機型號 |
電機極數 |
重量
（kg） |
|
0.18 |
0.39
0.43
0.50
0.59
0.69
0.80
0.91 |
2258
1951
1728
1541
1340
1169
1043 |
3574
3278
2791
2375
2022
1744
1544 |
1.05
1.22
1.37
1.54
1.77
1.96
2.1 |
WS 87WR57
WSA 87WR57
WSF 87WR57
WSAF 87WR57 |
4P
4P
4P
4P |
139
137
159
154 |
|
1.1
1.3
1.5
1.7
2.0
2.5 |
1034
902
798
707
612
493 |
1202
1096
923
845
706
552 |
1.17
1.34
1.51
1.71
1.97
2.4 |
WS 77WR37
WSA 77WR37
WSF 77WR37
WSAF 77WR37 |
4P
4P
4P
4P |
86
86
96
92 | |
|
2.5
3.0
3.5
3.9 |
472
410
343
313 |
570
458
401
363 |
1.15
1.32
1.44
1.64 |
WS 67WR37
WSA 67WR37
WSF 67WR37
WSAF 67WR37 |
4P
4P
4P
4P |
56
57
63
62 | |
|
4.1
5.1
5.9
7.0
7.7 |
292
239
206
180
162 |
340
276
238
199
182 |
1.04
1.31
1.52
1.70
1.85 |
WS 57WR17
WSA 57WR17
WSF 57WR17
WSAF 57WR17 |
4P
4P
4P
4P |
36
36
39
38 | |
|
7.4
8.1
9.4
11 |
168
150
135
110 |
189
172
148
133 |
1.05
1.18
1.31
1.44 |
WS 47WR17
WSA 47WR17
WSF 47WR17
WSAF 47WR17 |
4P
4P
4P
4P |
31
32
34
33 | |
|
3.9
4.3
4.6 |
258
234
220 |
219.14
201.07
185.25 |
1.86
2.1
2.2 |
WS 67
WSA 67
WSF 67
WSAF 67 |
6P
6P
6P
6P |
45
46
52
51 | |
|
4.1
4.5
5.3
5.8
6.1 |
235
217
190
175
165 |
207.14
190.00
161.76
146.67
139.47 |
1.19
1.29
1.39
1.49
1.70 |
WS 57
WSA 57
WSF 57
WSAF 57 |
6P
6P
6P
6P |
32
32
35
34 | |
|
6.7
7.4
8.7
9.5
10 |
150
139
121
112
106 |
207.14
190.00
161.76
146.67
136.67 |
1.87
2.01
2.2
2.3
2.6 |
WS 57
WSA 57
WSF 57
WSAF 57 |
4P
4P
4P
4P |
28
28
31
30 | |
|
5.1
5.7
6.2 |
194
170
159 |
166.56
149.36
136.67 |
0.86
0.94
1.00 |
WS 47
WSA 47
WSF 47
WSAF 47 |
6P
6P
6P
6P |
27
28
30
29 | |
|
7.1
8.0
9.4
9.4
10
11
12
13
13
15 |
142
129
124
109
103
97
91
86
82
72 |
196.21
176.00
166.56
149.36
136.67
125.56
117.14
109.88
100.00
94.94 |
1.13
1.22
1.30
1.46
1.55
1.65
1.75
1.85
1.95
2.1 |
WS 47
WSA 47
WSF 47
WSAF 47 |
4P
4P
4P
4P |
23
24
26
25 | |
|
16
18
19
20 |
70
63
61
57 |
87.53
78.00
73.62
71.25 |
2.3
2.4
2.6
2.8 |
WS 47
WSA 47
WSF 47
WSAF 47 |
4P
4P
4P
4P |
23
24
26
25 | |
|
9.2
10
11
12
13
14
15
16
18
19
21
23
25
27
30
32
35
40
44
47
51
55
61
65
70
73
80
87
95
104
113
130 |
110
102
96
84
79
75
70
63
60
57
51
49
52
48
44
42
37
34
31
29
26
25
23
22
21
19
18
17
16
14
14
12 |
152
140
125.72
114.67
105
97.14
90.91
88.00
76.00
72.94
66.00
60.20
55.13
51.00
46.20
43.10
39.90
35.00
32.05
30.10
27.56
25.32
23.10
21.55
19.95
19.15
17.50
1602
14.70
13.50
12.41
10.78 |
0.80
0.85
0.90
1.00
1.06
1.12
1.16
1.28
1.34
1.39
1.52
1.60
1.47
1.56
1.68
1.77
2.0
2.1
2.3
2.4
2.7
2.8
2.1
2.2
2.3
2.4
2.6
2.7
2.8
3.0
3.1
3.2 |
WS 37
WSA 37
WSF 37
WSAF 37 |
4P
4P
4P
4P |
17
16
18
18 |
|
電動機功率
（kW） |
輸出轉速
（r/min） |
輸出轉矩
（N·m） |
傳動比
（i） |
使用系數
（fB） |
機型號 |
電機極數 |
重量
（kg） |
|
0.25 |
0.59
0.69
0.80
0.91
1.0
1.2
1.4
1.6 |
2141
1861
1623
1446
1288
1156
1004
857 |
2375
2022
1744
1544
1423
1116
878 |
1.11
1.28
1.41
1.53
1.84
2.1
2.4
2.6 |
WS 87WR57
WSA 87WR57
WSF 87WR57
WSAF 87WR57 |
4P
4P
4P
4P |
143
141
163
158 |
|
1.5
1.7
2.0
2.5
2.9 |
1108
982
849
685
583 |
923
845
706
552
476 |
1.09
1.23
1.42
1.76
2.0 |
WS 77WR37
WSA 77WR37
WSF 77WR37
WSAF 77WR37 |
4P
4P
4P
4P |
90
90
100
96 | |
|
3.5
3.9
5.1 |
477
435
341 |
401
363
275 |
1.04
1.18
1.55 |
WS 67WR37
WSA 67WR37
WSF 67WR37
WSAF 67WR37 |
4P
4P
4P
4P |
60
61
67
66 | |
|
5.9
7.0
7.7
8.4
10 |
286
248
225
209
168 |
238
199
182
167
140 |
1.09
1.22
1.34
1.50
1.86 |
WS 57WR17
WSA 57WR17
WSF 57WR17
WSAF 57WR17 |
4P
4P
4P
4P |
40
40
43
42 | |
|
2.9
3.3
3.5
3.8
4.2 |
476
418
393
371
335 |
219.14
201.07
185.25
171.29
158.89 |
1.04
1.18
1.26
1.33
1.47 |
WS 67
WSA 67
WSF 67
WSAF 67 |
8P
8P
8P
8P |
53
54
60
59 | |
|
3.8
4.4
4.7
5.0
5.6 |
370
325
306
289
262 |
219.14
201.07
185.25
171.29
158.89 |
1.34
1.52
1.61
1.7
1.9 |
WS 67
WSA 67
WSF 67
WSAF 67 |
6P
6P
6P
6P |
47
48
54
53 | |
|
6.2
7.1
7.6
8.1
9.1
11
12
13 |
238
209
197
186
168
143
130
122 |
219.14
201.07
185.25
171.29
158.89
125.28
116.53
108.65 |
2.1
2.4
2.5
2.7
2.9
3.4
3.8
4.0 |
WS 67
WSA 67
WSF 67
WSAF 67 |
4P
4P
4P
4P |
45
46
52
51 | |
|
5.3
6.1
6.6 |
261
230
216 |
161.76
139.47
128.43 |
1.07
1.22
1.30 |
WS 57
WSA 57
WSF 57
WSAF 57 |
6P
6P
6P
6P |
34
34
37
36 | |
|
6.7
7.4
8.7
10
11
12
13
14
15
17 |
208
194
168
148
139
131
117
111
106
96 |
207.14
190.00
161.76
139.47
128.43
117.80
108.50
100.29
90.93
83.31 |
1.35
1.45
1.67
1.90
2.0
2.1
2.4
2.5
2.7
2.9 |
WS 57
WSA 57
WSF 57
WSAF 57 |
4P
4P
4P
4P |
32
32
35
34 | |
|
7.1
8.0
8.4
9.4
10
11
12
13
14
15
16
19
20
22
25
27
30 |
198
179
172
152
143
134
127
120
108
102
97
85
79
73
74
70
63 |
196.21
176.00
166.56
149.36
136.67
125.56
117.14
109.88
100.00
94.94
87.53
73.62
71.25
62.86
56.61
52.70
47.14 |
0.82
0.88
0.94
1.05
1.12
1.19
1.26
1.33
1.48
1.56
1.63
1.88
2.0
2.2
2.0
2.1
2.2 |
WS 47
WSA 47
WSF 47
WSAF 47 |
4P
4P
4P
4P |
27
28
30
29 | |
|
15
16
18
19
21
23
25
27
30
32
35
40
44
47
51
55
61 |
98
87
83
79
71
68
72
67
62
58
51
46
43
41
39
34
33 |
90.91
88.00
76.00
72.94
66.00
60.20
55.13
51.00
46.20
43.10
39.90
35.00
32.05
30.10
27.56
25.32
23.10 |
0.84
0.92
0.96
1.00
1.09
1.14
1.06
1.13
1.21
1.27
1.43
1.59
1.67
1.75
1.85
2.0
2.1 |
WS 37
WSA 37
WSF 37
WSAF 37 |
4P
4P
4P
4P |
21
20
22
22 | |
|
65
70
73
80
87
104
113
130
140
160
160 |
33
29
27
25
24
23
20
19
17
15
13 |
21.55
19.55
19.15
17.50
16.02
14.70
13.50
12.41
10.78
9.98
8.75 |
1.52
1.66
1.73
1.84
1.93
2.0
2.2
2.2
2.3
2.3
2.2 |
WS 37
WSA 37
WSF 37
WSAF 37 |
6P
6P
6P
6P |
21
20
22
22 |
|
電動機功率
（kW） |
輸出轉速
（r/min） |
輸出轉矩
（N·m） |
傳動比
（i） |
使用系數
（fB） |
機型號 |
電機極數 |
重量
（kg） |
|
0.37 |
0.91
1.0
1.2
1.4
1.6 |
2145
1907
1711
1486
1246 |
1544
1423
1116
1026
878 |
1.03
1.25
1.39
1.60
1.91 |
WS 87 WR57
WSA 87 WR57
WSF 87 WR57
WSAF 87 WR57 |
4P
4P
4P
4P |
144
142
164
159 |
|
2.5
2.9
3.4
3.7 |
1013
964
735
693 |
552
476
416
377 |
1.19
1.35
1.50
1.69 |
WS 77 WR37
WSA 77 WR37
WSF 77 WR37
WSAF 77 WR37 |
6P
6P
6P
6P |
91
91
101
97 | |
|
5.1
6.0 |
516
432 |
275
231 |
1.05
1.19 |
WS 67 WR37
WSA 67 WR37
WSF 67 WR37
WSAF 67 WR37 |
4P
4P
4P
4P |
61
62
68
67 | |
|
2.3
2.5
2.9 |
931
847
746 |
288.70
268.80
228.56 |
2.3
2.6
2.9 |
WS 87
WSA 87
WSF 87
WSAF 87 |
8P
8P
8P
8P |
126
124
146
141 | |
|
2.9
3.2
3.7
4.2 |
721
681
580
520 |
231.00
212.80
182.82
159.16 |
1.67
1.77
2.0
2.3 |
WS 77
WSA 77
WSF 77
WSAF 77 |
8P
8P
8P
8P |
86
86
96
92 | |
|
3.5
3.9
4.2 |
628
558
529 |
263.20
231.00
212.80 |
1.92
2.2
2.3 |
WS 77
WSA 77
WSF 77
WSAF 77 |
6P
6P
6P
6P |
80
80
90
86 | |
|
4.1
4.5
4.9
5.2
5.7 |
501
454
437
413
375 |
219.14
201.07
185.25
171.29
158.89 |
0.94
1.06
1.13
1.20
1.32 |
WS 67
WSA 67
WSF 67
WSAF 67 |
6P
6P
6P
6P |
50
51
57
56 | |
|
6.4
7.0
7.6
8.2
8.8
11
12
13 |
342
310
291
275
249
212
193
181 |
219.14
201.07
185.25
171.29
158.89
125.28
116.52
108.65 |
1.40
1.60
1.70
1.80
1.99
2.3
2.6
2.7 |
WS 67
WSA 67
WSF 67
WSAF 67 |
4P
4P
4P
4P |
46
47
53
52 | |
|
7.6
8.2
8.9
9.7
11 |
276
261
247
226
211 |
117.80
108.50
100.29
90.93
83.31 |
1.02
1.07
1.13
1.20
1.33 |
WS 57
WSA 57
WSF 57
WSAF 57 |
6P
6P
6P
6P |
37
37
40
39 | |
|
7.4
8.7
10
11 |
286
249
218
205 |
190.00
161.76
139.47
128.43 |
0.98
1.13
1.28
1.36 |
WS 57
WSA 57
WSF 57
WSAF 57 |
4P
4P
4P
4P |
33
33
36
35 | |
|
12
13
14
15
17
20
22 |
194
173
164
156
142
116
109 |
117.80
108.50
100.29
90.93
83.31
70.61
64.21 |
1.45
1.53
1.70
1.79
2.0
2.3
2.5 |
WS 57
WSA 57
WSF 57
WSAF 57 |
4P
4P
4P
4P |
33
33
36
35 | |
|
12
13
14
15
16
18
19
20
22
25
27
30
31
32
36
43
48
55
59
69
72
79
83 |
188
177
159
152
144
130
125
117
109
110
103
94
91
86
78
66
60
51
48
45
42
39
36 |
117.14
109.88
100.00
94.94
87.53
78.00
73.62
71.25
62.86
56.61
52.70
47.14
45.09
43.64
39.00
32.64
29.31
25.50
23.57
20.22
19.50
17.81
16.32 |
0.88
0.90
1.00
1.05
1.10
1.15
1.27
1.36
1.46
1.34
1.43
1.52
1.61
1.71
1.81
2.2
2.5
2.8
2.9
2.3
2.5
2.6
2.9 |
WS 47
WSA 47
WSF 47
WSAF 47 |
4P
4P
4P
4P |
28
29
31
30 | |
|
32
35
40
44
47
51
55
61
65
70
73
80
87
95
104
113
130
140
160 |
86
77
67
61
60
54
51
48
45
42
40
37
35
32
30
28
25
23
20 |
43.10
39.90
35.00
32.05
30.10
27.56
25.32
23.10
21.55
19.95
19.15
17.50
16.02
14.70
13.50
12.41
10.78
9.98
8.75 |
0.86
0.96
1.02
1.07
1.18
1.30
1.38
1.03
1.07
1.12
1.17
1.24
1.30
1.37
1.47
1.52
1.55
1.55
1.50 |
WS 37
WSA 37
WSF 37
WSAF 37 |
4P
4P
4P
4P |
22
21
23
23 |
|
電動機功率
（kW） |
輸出轉速
（r/min） |
輸出轉矩
（N·m） |
傳動比
（i） |
使用系數
（fB） |
機型號 |
電機極數 |
重量
（kg） |
|
0.55 |
1.4
1.6
1.9
2.3
2.5
2.9
3.3 |
2208
1852
1618
1351
1259
1096
983 |
878
751
602
559
485
422 |
1.08
1.28
1.47
1.68
1.81
2.1
2.3 |
WS 87 WR57
WSA 87 WR57
WSF 87 WR57
WSAF 87 WR57 |
4P
4P
4P
4P |
148
146
168
163 |
|
3.4
3.7
4.5
4.9
5.8 |
1092
1030
840
788
674 |
416
377
312
286
240 |
1.01
1.14
1.31
1.50
1.73 |
WS 77 WR37
WSA 77 WR37
WSF 77 WR37
WSAF 77 WR37 |
4P
4P
4P
4P |
95
95
105
101 | |
|
7.8 |
478 |
179 |
1.3 |
WS 67 WR37
WSA 67 WR37
WSF 67 WR37
WSAF 67 WR37 |
4P
4P
4P
4P |
65
66
72
71 | |
|
2.3
2.5
2.9 |
1384
1260
1109 |
288.70
268.80
228.56 |
1.57
1.72
2.0 |
WS 87
WSA 87
WSF 87
WSAF 87 |
8P
8P
8P
8P |
129
127
149
144 | |
|
3.0
3.3
3.9
4.4 |
1070
977
863
771 |
288.70
268.80
228.56
200.86 |
2.0
2.2
2.5
2.8 |
WS 87
WSA 87
WSF 87
WSAF 87 |
6P
6P
6P
6P |
122
120
142
137 | |
|
3.1
3.7
4.2 |
1013
863
773 |
212.80
182.82
159.16 |
1.19
1.32
1.55 |
WS 77
WSA 77
WSF 77
WSAF 77 |
8P
8P
8P
8P |
89
89
99
95 | |
|
3.8
4.2
4.8
5.6 |
860
786
695
603 |
231.00
212.80
182.82
159.16 |
1.29
1.54
1.70
1.99 |
WS 77
WSA 77
WSF 77
WSAF 77 |
6P
6P
6P
6P |
82
82
92
88 | |
|
6.1
6.6
7.6 |
552
522
458 |
231.00
212.80
182.82 |
2.0
2.3
2.6 |
WS 77
WSA 77
WSF 77
WSAF 77 |
4P
4P
4P
4P |
80
80
90
86 | |
|
6.4
7.0
7.5
8.2
9.6
11
12
13
14
16
18
21
22 |
507
460
433
403
350
316
287
269
253
224
200
178
170 |
219.14
201.07
185.25
171.29
146.06
125.28
116.53
108.65
101.52
88.61
76.85
67.23
63.04 |
0.94
1.07
1.14
1.21
1.34
1.56
1.72
1.83
1.95
2.2
2.5
2.6
2.9 |
WS 67
WSA 67
WSF 67
WSAF 67 |
4P
4P
4P
4P |
50
51
57
56 | |
|
13
14
16
17
18
20
23 |
269
253
221
239
224
200
165 |
70.61
64.21
56.09
54.25
48.52
45.46
38.29 |
1.03
1.11
1.14
0.98
1.04
1.10
1.32 |
WS 57
WSA 57
WSF 57
WSAF 57 |
6P
6P
6P
6P |
39
39
42
41 | |
|
11
12
12
14
15
17
20
22
25
26
29
31
37
43
50
58
62
66
71 |
305
288
272
245
232
211
181
169
152
146
132
123
103
89
80
70
65
61
57 |
128.43
117.80
108.50
100.29
90.93
83.31
70.61
64.21
56.09
54.25
48.52
45.46
38.29
32.63
28.05
24.26
22.60
21.08
19.67 |
0.92
0.97
1.03
1.15
1.21
1.33
1.54
1.66
1.71
1.49
1.59
1.69
2.0
2.4
2.8
3.0
3.2
3.0
2.6 |
WS 57
WSA 57
WSF 57
WSAF 57 |
4P
4P
4P
4P |
37
37
40
39 | |
|
21
22
25
27
30
31
32
36
43
48
55
59
69
72
79
86
96
110
128
149 |
166
162
164
153
139
136
128
115
98
89
79
73
67
63
59
54
48
42
37
32 |
67.47
62.86
56.61
52.70
47.14
45.09
43.64
39.00
32.64
29.31
25.50
23.57
20.22
19.50
17.81
16.32
14.66
12.75
10.91
9.37 |
0.91
0.98
0.90
0.96
1.02
1.08
1.15
1.22
1.50
1.66
1.79
1.89
1.57
1.66
1.75
1.95
2.1
2.5
2.5
2.8 |
WS 47
WSA 47
WSF 47
WSAF 47 |
4P
4P
4P
4P |
32
33
35
34 | |
|
55
61
65
70
73
80
87
95
104
113
130
140
160 |
85
80
75
65
62
57
54
50
44
42
36
34
31 |
25.32
23.10
21.55
19.95
19.15
17.50
16.02
14.70
13.50
12.41
10.78
9.98
8.75 |
1.70
1.81
1.93
2.22
2.33
2.54
2.56
2.65
2.70
2.75
2.80
2.85
2.90 |
WS 37
WSA 37
WSF 37
WSAF 37 |
4P
4P
4P
4P |
26
25
27
27 |
|
電動機功率
（kW） |
輸出轉速
（r/min） |
輸出轉矩
（N·m） |
傳動比
（i） |
使用系數
（fB） |
機型號 |
電機極數 |
重量
（kg） |
|
0.75 |
1.3
1.5
1.8
1.9
2.2
2.4
2.8 |
4001
3534
2958
2747
2428
2107
1924 |
1071
916
785
728
628
584
506 |
1.00
1.13
1.27
1.45
1.64
1.89
2.1 |
WS 97 WR57
WSA 97 WR57
WSF 97 WR57
WSAF 97 WR57 |
4P
4P
4P
4P |
249
244
284
274 |
|
1.9
2.3
2.5
2.9
3.3
3.6
4.4 |
2207
1843
1717
1493
1341
1231
1243 |
751
602
559
485
422
391
319 |
1.08
1.23
1.33
1.53
1.72
1.93
1.51 |
WS 87 WR57
WSA 87 WR57
WSF 87 WR57
WSAF 87 WR57 |
4P
4P
4P
4P |
149
147
169
164 | |
|
4.9
5.8
6.4 |
1075
918
839 |
286
240
220 |
1.10
1.27
1.44 |
WS 77 WR37
WSA 77 WR37
WSF 77 WR37
WSAF 77 WR37 |
4P
4P
4P
4P |
96
96
106
102 | |
|
2.3
2.5
2.9 |
1836
1730
1549 |
292.42
269.87
232.70 |
2.1
2.2
2.5 |
WS 97
WSA 97
WSF 97
WSAF 97 |
8P
8P
8P
8P |
236
231
271
261 | |
|
3.1
3.3
3.9
4.5 |
1423
1299
1148
1025 |
288.70
268.80
228.56
200.86 |
1.52
1.67
1.89
2.1 |
WS 87
WSA 87
WSF 87
WSAF 87 |
6P
6P
6P
6P |
126
124
146
141 | |
|
4.8
5.2
6.1
6.9 |
972
886
780
696 |
288.70
268.80
228.56
200.86 |
2.2
2.4
2.8
3.1 |
WS 87
WSA 87
WSF 87
WSAF 87 |
4P
4P
4P
4P |
121
119
141
136 | |
|
3.9
4.2
4.9
5.7 |
1104
1045
944
801 |
231.00
212.80
182.82
159.16 |
1.09
1.15
1.28
1.49 |
WS 77
WSA 77
WSF 77
WSAF 77 |
6P
6P
6P
6P |
86
86
96
92 | |
|
5.3
6.1
6.6
7.6
8.8
9.6
11
13 |
849
753
712
625
545
512
454
382 |
263.20
231.00
212.80
182.82
159.16
145.60
125.72
107.47 |
1.42
1.60
1.69
1.88
2.2
2.3
2.5
2.9 |
WS 77
WSA 77
WSF 77
WSAF 77 |
4P
4P
4P
4P |
81
81
91
87 | |
|
7.5
8.2
8.8
11
12
13
14
16
18
21
22
26
30
33 |
590
557
504
430
391
367
345
305
273
233
232
206
185
173 |
185.25
171.29
158.89
125.28
116.53
108.65
101.52
88.61
76.85
67.23
63.04
53.44
45.83
42.63 |
0.84
0.89
0.98
1.15
1.26
1.35
1.43
1.62
1.81
1.91
2.1
2.2
2.5
2.6 |
WS 67
WSA 67
WSF 67
WSAF 67 |
4P
4P
4P
4P |
51
52
58
57 | |
|
19
20 |
298
280 |
48.52
45.46 |
0.82
0.83 |
WS 57
WSA 57
WSF 57
WSAF 57 |
4P
4P
4P
4P |
43
43
46
45 | |
|
17
20
22
25
26
29
31
37
43
50
58
62
66
71
78
85
99 |
287
247
230
201
212
199
188
158
134
115
101
100
93
90
82
75
63 |
83.31
70.61
64.21
56.09
54.25
48.52
45.46
38.29
32.63
28.05
24.26
22.60
21.08
19.67
17.91
16.51
14.14 |
0.98
1.13
1.22
1.25
1.10
1.17
1.24
1.47
1.73
2.0
2.2
2.3
2.2
1.74
2.0
2.1
2.5 |
WS 57
WSA 57
WSF 57
WSAF 57 |
4P
4P
4P
4P |
38
38
41
40 | |
|
36
43
48
55
59
69
72
79
86
96 |
156
134
121
106
99
91
86
79
73
66 |
39.00
32.64
29.31
25.50
23.57
20.22
19.50
17.81
16.32
14.66 |
0.94
1.10
1.22
1.31
1.38
1.15
1.21
1.28
1.43
1.57 |
WS 47
WSA 47
WSF 47
WSAF 47 |
4P
4P
4P
4P |
33
34
36
35 | |
|
110
128
149
161 |
57
50
43
40 |
12.75
10.91
9.37
8.70 |
1.82
1.86
2.0
2.1 |
WS 47
WSA 47
WSF 47
WSAF 47 |
4P
4P
4P
4P |
33
34
36
35 | |
|
113
130
130
160 |
57
50
46
42 |
12.41
10.78
9.98
8.75 |
1.20
1.30
1.34
1.38 |
WS 37
WSA 37
WSF 37
WSAF 37 |
6P
6P
6P
6P |
27
26
28
28 |
|
電動機功率
（kW） |
輸出轉速
（r/min） |
輸出轉矩
（N·m） |
傳動比
（i） |
使用系數
（fB） |
機型號 |
電機極數 |
重量
（kg） |
|
1.1 |
1.9
2.2
2.4
2.8
3.4 |
4001
3537
3069
2802
2409 |
728
628
584
506
409 |
1.00
1.13
1.30
1.42
1.66 |
WS 97 WR57
WSA 97 WR57
WSF 97 WR57
WSAF 97 WR57 |
4P
4P
4P
4P |
254
249
289
279 |
|
2.9
3.3
3.6
4.4
5.2
5.9
6.8 |
2255
1954
1794
1811
1559
1388
1199 |
485
422
391
319
268
237
206 |
1.05
1.18
1.32
1.04
1.16
1.29
1.55 |
WS 87 WR57
WSA 87 WR57
WSF 87 WR57
WSAF 87 WR57 |
4P
4P
4P
4P |
154
152
174
169 | |
|
6.4 |
1223 |
220 |
0.99 |
WS 77 WR37
WSA 77 WR37
WSF 77 WR37
WSAF 77 WR37 |
4P
4P
4P
4P |
101
101
111
107 | |
|
2.4
2.5
2.9
3.5 |
2693
2538
2272
1953 |
292.42
269.87
232.70
193.60 |
1.41
1.50
1.67
1.95 |
WS 97
WSA 97
WSF 97
WSAF 97 |
8P
8P
8P
8P |
239
234
274
264 | |
|
3.4
3.5
3.9 |
2016
1954
1742 |
292.87
269.87
232.70 |
1.83
1.95
2.2 |
WS 97
WSA 97
WSF 97
WSAF 97 |
6P
6P
6P
6P |
230
225
265
255 | |
|
3.1
3.4
4.0
4.5 |
2087
1905
1684
1503 |
288.70
268.80
228.56
200.86 |
1.04
1.14
1.29
1.44 |
WS 87
WSA 87
WSF 87
WSAF 87 |
6P
6P
6P
6P |
130
128
150
145 | |
|
4.8
5.2
6.1
6.9
7.5
9.1 |
1416
1290
1137
1014
936
768 |
288.70
268.80
228.56
200.86
186.67
154.29 |
1.53
1.68
1.91
2.1
2.2
2.5 |
WS 87
WSA 87
WSF 87
WSAF 87 |
4P
4P
4P
4P |
126
124
146
141 | |
|
6.1
6.6
7.6
8.8
9.6
11
13
14
16 |
1097
1038
910
794
738
661
556
514
457 |
231.00
212.80
182.82
159.16
145.60
125.72
107.47
98.81
84.39 |
1.10
1.16
1.29
1.51
1.58
1.74
2.0
2.1
2.3 |
WS 77
WSA 77
WSF 77
WSAF 77 |
4P
4P
4P
4P |
86
86
96
92 | |
|
12
13
14
16 |
570
535
502
445 |
116.53
108.65
101.52
88.61 |
0.87
0.92
0.98
1.11 |
WS 67
WSA 67
WSF 67
WSAF 67 |
4P
4P
4P
4P |
56
57
63
62 | |
|
18
21
22
24
26
30
33
38
70
43
46
52 |
397
340
339
305
290
270
253
224
222
209
186
168 |
76.85
67.23
63.04
59.21
53.44
45.83
42.63
37.14
34.77
32.61
30.62
27.11 |
1.24
1.31
1.46
1.5
1.58
1.69
1.81
1.93
2.1
2.2
2.5
2.6 |
WS 67
WSA 67
WSF 67
WSAF 67 |
4P
4P
4P
4P |
56
57
63
62 | |
|
31
37
43
50
58
62
66
71
78
85
99
115
132
152 |
273
230
196
168
150
140
135
126
119
110
91
82
73
63 |
45.46
38.29
32.63
28.05
24.26
22.60
21.08
19.67
17.91
16.51
14.14
12.19
10.59
9.20 |
0.85
1.01
1.19
1.39
1.49
1.60
1.51
1.27
1.34
1.42
1.75
1.89
1.79
1.98 |
WS 57
WSA 57
WSF 57
WSAF 57 |
6P
6P
6P
6P |
43
43
46
45 | |
|
55
59
69
72
79
86
96
110
128
149
161 |
152
141
125
119
113
107
96
85
73
64
59 |
25.50
23.57
20.22
19.50
17.81
16.32
14.66
12.75
10.91
9.37
8.70 |
0.95
0.97
0.83
0.88
0.93
0.98
1.08
1.16
1.27
1.40
1.43 |
WS 47
WSA 47
WSF 47
WSAF 47 |
4P
4P
4P
4P |
38
39
41
40 |
|
電動機功率
（kW） |
輸出轉速
（r/min） |
輸出轉矩
（N·m） |
傳動比
（i） |
使用系數
（fB） |
機型號 |
電機極數 |
重量
（kg） |
|
1.5 |
2.8
3.4
4.3 |
3822
3286
2639 |
506
409
323 |
1.04
1.21
1.51 |
WS 97 WR57
WSA 97 WR57
WSF 97 WR57
WSAF 97 WR57 |
4P
4P
4P
4P |
258
253
293
283 |
|
5.9
6.8 |
1759
1660 |
237
206 |
1.07
1.13 |
WS 87 WR57
WSA 87 WR57
WSF 87 WR57
WSAF 87 WR57 |
4P
4P
4P
4P |
158
156
178
173 | |
|
2.6
3.0
3.6 |
3416
3059
2627 |
269.87
232.70
193.60 |
1.11
1.24
1.45 |
WS 97
WSA 97
WSF 97
WSAF 97 |
8P
8P
8P
8P |
247
242
282
272 | |
|
3.2
3.4
4.0
4.8 |
2804
2627
2351
2016 |
292.42
269.87
232.70
193.60 |
1.36
1.44
1.62
1.88 |
WS 97
WSA 97
WSF 97
WSAF 97 |
6P
6P
6P
6P |
236
231
271
261 | |
|
4.8
5.2
6.0
7.2 |
1911
1802
1616
1387 |
292.42
269.87
232.70
193.60 |
1.99
2.1
2.4
2.7 |
WS 97
WSA 97
WSF 97
WSAF 97 |
4P
4P
4P
4P |
230
225
265
255 | |
|
4.5
4.9 |
2029
1920 |
200.86
186.67 |
1.07
1.10 |
WS 87
WSA 87
WSF 87
WSAF 87 |
6P
6P
6P
6P |
136
134
156
151 | |
|
4.8
5.2
6.1
6.9
7.5
9.1
10
11
13
14 |
1931
1759
1550
1383
1277
1047
992
942
759
722 |
288.70
268.80
228.56
200.86
186.67
154.29
141.33
13.00
107.25
100.57 |
1.12
1.23
1.40
1.57
1.61
1.95
2.0
2.1
2.5
2.6 |
WS 87
WSA 87
WSF 87
WSAF 87 |
4P
4P
4P
4P |
130
128
150
145 | |
|
7.6
8.8
9.6
11
13
14
16
19
21
22
25
29
33 |
1241
1083
1017
901
759
700
623
554
497
482
441
400
360 |
182.82
159.16
145.60
125.72
107.47
98.81
74.39
72.85
67.90
63.41
55.54
48.88
43.03 |
0.95
1.10
1.16
1.28
1.47
1.55
1.68
1.84
1.89
1.98
2.1
2.5
2.9 |
WS 77
WSA 77
WSF 77
WSAF 77 |
4P
4P
4P
4P |
90
90
100
96 | |
|
18
21
22
24
26
30
33
38
40
43
46
52
58
61
69
81
89
101 |
542
497
482
411
410
368
344
301
288
276
253
230
214
203
188
154
145
129 |
76.85
67.23
63.04
59.21
53.44
45.83
42.63
37.14
34.77
32.61
30.62
27.11
24.76
22.76
20.32
17.21
15.76
13.92 |
0.91
1.07
1.12
1.16
1.11
1.24
1.32
1.41
1.51
1.60
1.80
1.91
2.1
2.2
1.7
2.1
2.2
2.5 |
WS 67
WSA 67
WSF 67
WSAF 67 |
4P
4P
4P
4P |
60
61
67
66 | |
|
50
58
62
66
71
78
85
99
115
132
152 |
229
202
190
184
172
162
150
124
110
100
86 |
28.05
24.26
22.60
21.08
19.67
17.91
16.51
14.14
12.19
10.59
9.20 |
1.02
1.09
1.18
1.11
0.93
0.98
1.04
1.28
1.38
1.32
1.45 |
WS 57
WSA 57
WSF 57
WSAF 57 |
4P
4P
4P
4P |
47
47
50
49 | |
|
96
110
128
149
161 |
131
113
102
91
82 |
14.66
12.75
10.91
9.37
8.70 |
0.80
0.92
0.93
1.03
1.05 |
WS 47
WSA 47
WSF 47
WSAF 47 |
4P
4P
4P
4P |
42
43
45
44 |
| 頁次：2/4 每頁10條 共33條信息 分頁：[1][2][3][4] |
