選型參數
|
55 |
40
47
58 |
13300
11200
9010 |
0.90
1.10
1.35 |
TXFA-127-Y250M-4
TXFAF-127-Y250M-4
TXF-127-Y250M-4
TXFF-127-Y250M-4 |
879
915
879
915 |
|
69
78
90
101
118
145
166
187
217
267
315 |
7610
6720
5820
5180
4470
3630
3160
2810
2420
1970
1670 |
1.60
1.65
1.90
2.10
2.20
2.60
2.20
2.10
2.90
3.00
3.60 |
TXFA-127-Y250M-4
TXFAF-127-Y250M-4
TXF-127-Y250M-4
TXFF-127-Y250M-4 |
879
915
879
915 |
|
75 |
47
58 |
15200
12200 |
0.80
1.00 |
TXFA-127-Y280S-4
TXFAF-127-Y280S-4
TXF-127-Y280S-4
TXFF-127-Y280S-4 |
1014
1050
1014
1050 |
|
功率
Kw |
輸出轉數
r/min |
輸出扭矩
N·m |
服務系數
fB |
型號 |
參考重量
kg |
|
75 |
69
78
90
102
118
145
167
188
218
268
316 |
10300
9130
7920
7040
6070
4930
4290
3810
3290
2670
2270 |
1.15
1.20
1.40
1.55
1.65
1.95
1.65
1.55
2.10
2.20
2.70 |
TXFA-127-Y280S-4
TXFAF-127-Y280S-4
TXF-127-Y280S-4
TXFF-127-Y280S-4 |
1014
1050
1014
1050 |
|
90 |
58 |
14700 |
0.80 |
TXFA-127-Y280M-4
TXFAF-127-Y280M-4
TXF-127-Y280M-4
TXFF-127-Y280M-4 |
1120
1155
1120
1155 |
|
69
78
90
102
118
145
167
188
218
268
316 |
12400
11000
9500
8450
7280
5920
5150
4580
3950
3210
2720 |
0.95
1.00
1.15
1.30
1.35
1.60
1.35
1.30
1.75
1.85
2.20 |
TXFA-127-Y280M-4
TXFAF-127-Y280M-4
TXF-127-Y280M-4
TXFF-127-Y280M-4 |
1120
1155
1120
1155 |

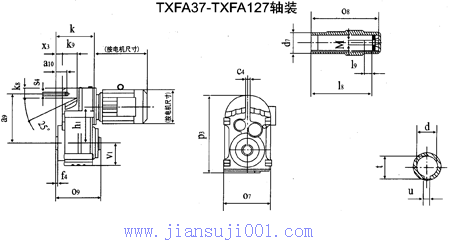

5 TXF系列外形安裝尺寸
|
型號 |
a9 |
a10 |
c4 |
f4 |
h1 |
k |
k8 |
k9 |
o7 |
o8 |
o9 |
p3 |
s4 |
v1 |
x3 |
d |
d7 |
l8 |
l9 |
t |
u |
M |
|
TXFA37 |
158 |
31.5 |
12 |
0.5 |
112 |
110 |
30 |
46 |
165 |
120 |
123 |
252 |
14 |
76 |
15 |
30 |
45 |
105 |
17 |
33.3 |
8 |
M10 |
|
TXFA47 |
170 |
32 |
12 |
1 |
128.1 |
133 |
22 |
64 |
180 |
150 |
153 |
269 |
14 |
77 |
12 |
35 |
50 |
132 |
22 |
38.3 |
10 |
M10 |
|
TXFA57 |
198 |
40.5 |
14 |
1 |
136 |
150 |
31 |
60 |
200 |
166 |
170 |
317 |
14 |
93 |
19.5 |
40 |
55 |
142 |
29 |
43.3 |
12 |
M16 |
|
TXFA67 |
218 |
41 |
16 |
1 |
159.5 |
161 |
40 |
65 |
212 |
180 |
184 |
343 |
14 |
97 |
21 |
40 |
55 |
156 |
29 |
43.3 |
12 |
M16 |
|
TXFA77 |
278 |
50 |
20 |
1 |
200 |
193 |
49 |
69 |
270 |
210 |
213 |
426 |
22 |
121 |
28 |
50 |
70 |
183 |
32 |
53.8 |
14 |
M16 |
|
TXFA87 |
346 |
62 |
26 |
1 |
246.7 |
224 |
57 |
79 |
330 |
240 |
243 |
531 |
22 |
152 |
32 |
60 |
85 |
210 |
36 |
64.4 |
18 |
M20 |
|
TXFA97 |
395 |
70 |
30 |
1 |
285 |
274 |
88 |
104 |
400 |
300 |
303 |
623 |
26 |
178 |
34 |
70 |
95 |
270 |
34 |
74.9 |
20 |
M20 |
|
TXFA107 |
485 |
88 |
36 |
2.5 |
332.4 |
312 |
108 |
100 |
450 |
350 |
353 |
717 |
26 |
200 |
57 |
90 |
118 |
313 |
40 |
95.4 |
25 |
M24 |
|
TXFA127 |
550 |
110 |
40 |
2.5 |
382.6 |
373 |
138 |
125 |
530 |
410 |
413 |
856 |
33 |
236 |
66 |
100 |
135 |
373 |
38 |
106.4 |
28 |
M24 |
*電機尺寸參見附頁，括號內尺寸為參考尺寸

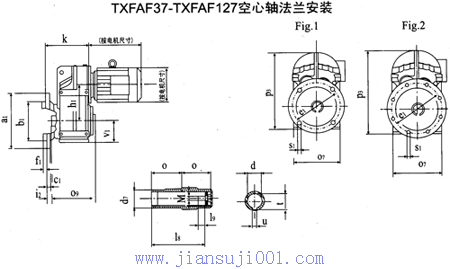

TXFAF37-TXFAF127型平行軸斜齒輪減速電機外形及安裝尺寸
|
型號 |
Fig |
a1 |
b1 |
c1 |
e1 |
f1 |
h1 |
i2 |
k |
o |
o7 |
o9 |
p3 |
s1 |
v1 |
d |
d7 |
l8 |
l9 |
t |
u |
M |
|
TXFAF37 |
1 |
160 |
110 |
10 |
130 |
3.5 |
112 |
24 |
138 |
60 |
165 |
123 |
252 |
9 |
76 |
30 |
45 |
105 |
17 |
33.3 |
8 |
M10 |
|
TXFAF47 |
1 |
200 |
130 |
12 |
165 |
3.5 |
128.1 |
25 |
162 |
75 |
180 |
153 |
269 |
11 |
77 |
35 |
50 |
132 |
22 |
38.3 |
10 |
M10 |
|
TXFAF57 |
1 |
250 |
180 |
15 |
215 |
4 |
136 |
23.5 |
177 |
83 |
200 |
170 |
317 |
13.5 |
93 |
40 |
55 |
142 |
29 |
43.3 |
12 |
M16 |
|
TXFAF67 |
1 |
250 |
180 |
15 |
215 |
4 |
159.5 |
23 |
188 |
90 |
212 |
184 |
343 |
13.5 |
97 |
40 |
55 |
156 |
29 |
43.3 |
12 |
M16 |
|
TXFAF77 |
1 |
300 |
230 |
16 |
265 |
4 |
200 |
37 |
234 |
105 |
270 |
213 |
426 |
13.5 |
121 |
50 |
70 |
183 |
32 |
53.8 |
14 |
M16 |
|
TXFAF87 |
1 |
350 |
250 |
18 |
300 |
5 |
246.7 |
30 |
259 |
120 |
330 |
243 |
531 |
17.5 |
152 |
60 |
85 |
210 |
36 |
64.4 |
18 |
M20 |
|
TXFAF97 |
2 |
450 |
350 |
22 |
400 |
5 |
285 |
41.5 |
321 |
150 |
400 |
303 |
623 |
17.5 |
178 |
70 |
95 |
270 |
34 |
74.9 |
20 |
M20 |
|
TXFAF107 |
2 |
450 |
350 |
22 |
400 |
5 |
332.4 |
41 |
358 |
175 |
450 |
353 |
717 |
17.5 |
200 |
90 |
118 |
313 |
40 |
95.4 |
25 |
M24 |
|
TXFAF127 |
2 |
550 |
450 |
25 |
500 |
5 |
382.6 |
51 |
429 |
205 |
530 |
413 |
856 |
17.5 |
236 |
100 |
135 |
373 |
38 |
106.4 |
28 |
M24 |
*電機尺寸參見附頁，括號內尺寸為參考尺寸

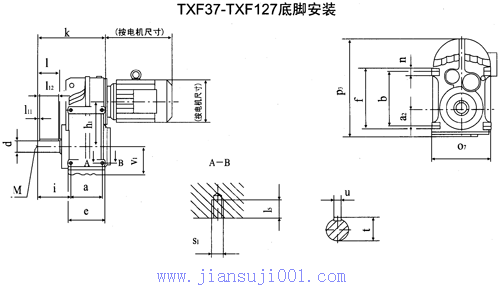

TXF37-TXF127型平行軸斜齒輪減速電機外形及安裝尺寸
|
型號 |
a |
a2 |
b |
e |
f |
h1 |
i |
k |
l5 |
n |
o7 |
p3 |
s1 |
v1 |
d |
l |
l11 |
l12 |
t |
u |
M |
|
TXF37 |
77 |
31 |
115 |
95 |
135 |
112 |
72.5 |
160 |
11 |
20 |
165 |
252 |
M8 |
76 |
25 |
50 |
5 |
40 |
28 |
8 |
M10 |
|
TXF47 |
93 |
43 |
145 |
109 |
165 |
128.1 |
91 |
193 |
15 |
20 |
180 |
269 |
M10 |
77 |
30 |
60 |
3.5 |
50 |
33 |
8 |
M10 |
|
TXF57 |
102 |
55 |
170 |
126 |
195 |
136 |
104.5 |
221 |
17 |
25 |
200 |
317 |
M12 |
93 |
35 |
70 |
7 |
56 |
38 |
10 |
M16 |
|
TXF67 |
112 |
60 |
190 |
131 |
215 |
159.5 |
118.5 |
242 |
17 |
25 |
212 |
343 |
M12 |
97 |
40 |
80 |
5 |
70 |
43 |
12 |
M16 |
|
TXF77 |
140 |
70 |
240 |
165 |
275 |
200 |
137.5 |
294 |
26 |
35 |
270 |
426 |
M16 |
121 |
50 |
100 |
10 |
80 |
53.5 |
14 |
M16 |
|
TXF87 |
165 |
100 |
310 |
195 |
350 |
246.7 |
163 |
344 |
26 |
40 |
330 |
531 |
M16 |
152 |
60 |
120 |
5 |
110 |
64 |
18 |
M20 |
|
TXF97 |
205 |
120 |
350 |
240 |
400 |
285 |
190.5 |
416 |
28 |
50 |
400 |
623 |
M20 |
178 |
70 |
140 |
7.5 |
125 |
74.5 |
20 |
M20 |
|
TXF107 |
220 |
125 |
400 |
260 |
460 |
332.4 |
241.5 |
484 |
36 |
60 |
450 |
717 |
M24 |
200 |
90 |
170 |
5 |
160 |
95 |
25 |
M24 |
|
TXF127 |
270 |
142 |
450 |
316 |
520 |
382.6 |
291 |
585 |
45 |
70 |
530 |
856 |
M30 |
236 |
110 |
210 |
15 |
180 |
116 |
28 |
M24 |
*電機尺寸參見附頁，括號內尺寸為參考尺寸

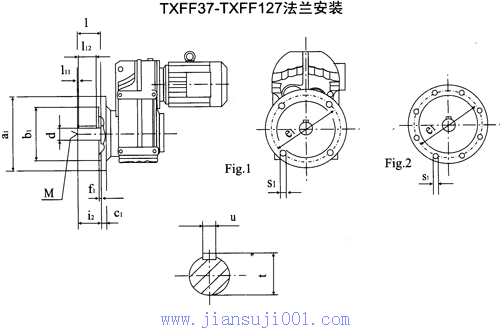

TXFF37-TXFF127型平行軸斜齒輪減速電機外形及安裝尺寸
|
型號 |
a1 |
Fig |
b1 |
c1 |
e1 |
f1 |
i2 |
s1 |
d |
l11 |
l12 |
t |
u |
M |
|
TXFF37 |
160 |
1 |
110 |
10 |
130 |
3.5 |
50 |
9 |
25 |
5 |
40 |
28 |
8 |
M10 |
|
TXFF47 |
200 |
1 |
130 |
12 |
165 |
3.5 |
60 |
11 |
30 |
3.5 |
50 |
33 |
8 |
M10 |
|
TXFF57 |
250 |
1 |
180 |
15 |
215 |
4 |
70 |
13.5 |
35 |
7 |
56 |
38 |
10 |
M16 |
|
TXFF67 |
250 |
1 |
180 |
15 |
215 |
4 |
80 |
13.5 |
40 |
5 |
70 |
43 |
12 |
M16 |
|
TXFF77 |
300 |
1 |
230 |
16 |
265 |
4 |
100 |
13.5 |
50 |
10 |
80 |
53.5 |
14 |
M16 |
|
TXFF87 |
350 |
1 |
250 |
18 |
300 |
5 |
120 |
17.5 |
60 |
5 |
110 |
64 |
18 |
M20 |
|
TXFF97 |
450 |
2 |
350 |
22 |
400 |
5 |
140 |
17.5 |
70 |
7.5 |
125 |
74.5 |
20 |
M20 |
|
TXFF107 |
450 |
2 |
350 |
22 |
400 |
5 |
170 |
17.5 |
90 |
5 |
160 |
95 |
25 |
M24 |
|
TXFF127 |
550 |
2 |
450 |
25 |
500 |
5 |
210 |
17.5 |
110 |
15 |
180 |
116 |
28 |
M24 |
*其余尺寸參加TXFAF37-TXFAF127空心軸法蘭安裝外形尺寸

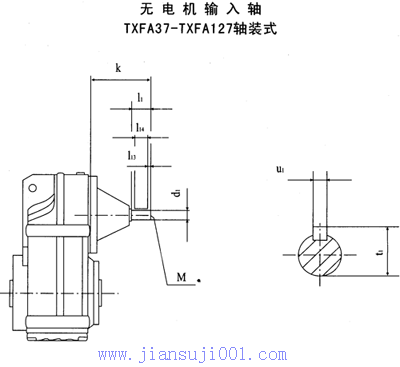

TXF37-TXF127型軸裝式外形及安裝尺寸
|
型號 |
d1 |
k2 |
l1 |
l13 |
l14 |
t1 |
u1 |
M |
|
TXF37 |
16 |
115 |
40 |
4 |
32 |
18 |
5 |
M5 |
|
TXF47 |
16 |
115 |
40 |
4 |
32 |
18 |
5 |
M5 |
|
TXF57 |
19 |
120 |
40 |
4 |
32 |
21.5 |
6 |
M6 |
|
TXF67 |
19 |
120 |
40 |
4 |
32 |
21.5 |
6 |
M6 |
|
TXF77 |
24 |
140 |
50 |
5 |
40 |
27 |
8 |
M8 |
|
TXF87 |
28 |
180 |
60 |
5 |
50 |
31 |
8 |
M10 |
|
TXF97 |
38 |
220 |
80 |
5 |
70 |
41 |
10 |
M12 |
|
TXFA107 |
42 |
270 |
110 |
10 |
70 |
45 |
12 |
M16 |
|
TXF127 |
55 |
297 |
110 |
10 |
90 |
59 |
16 |
M20 |
*TXF、TXFAF、TXFF型無電機輸軸按此圖外形尺寸
