選型參數
|
18.5 |
9.6
10
12 |
18500
16900
14700 |
0.90
0.95
1.13 |
TXR-167-Y200L1-6
TXRF-167-Y200L1-6 |
882
877 |
|
14
16
19
20
22
25 |
13000
11200
10000
8890
8130
7070 |
1.26
1.44
1.63
1.80
1.98
2.25 |
TXR-167-Y180M-4
TXRF-167-Y180M-4 |
844
839 | |
|
18
20
22
24
28
31
36 |
10100
8690
8080
7370
6380
5630
4860 |
1.17
1.35
1.44
1.58
1.8
2.07
2.43 |
TXR-147-Y180M-4
TXRF-147-Y180M-4 |
642
638 | |
|
33
39
45
53
61
67
77
87 |
5350
4540
3970
3360
2910
2650
2300
2030 |
1.35
1.58
1.80
2.07
2.52
2.7
3.15
3.60 |
TXR-137-Y180M-4
TXRF-137-Y180M-4 |
460
456 |
|
功率
Kw |
輸出轉數
r/min |
輸出扭矩
N·m |
服務系數
fB |
型號 |
參考重量
kg |
|
18.5 |
59
65
73
80
94
107
126
145
186
220 |
3000
2730
2420
2200
1890
1650
1400
1220
950
800 |
1.30
1.44
1.62
1.76
2.07
2.34
2.76
3.15
3.24
3.33 |
TXR-107-Y180M-4
TXRF-107-Y180M-4 |
381
378 |
|
100
118
135
158
175
206
236
282
326 |
1760
1490
1310
1120
1010
860
750
625
545 |
1.17
1.28
1.44
1.62
1.80
2.07
2.25
2.52
2.7 |
TXR-97-Y180M-4
TXRF-97-Y180M-4 |
294
290 | |
|
349
384
433
477
555
636 |
505
460
410
370
320
280 |
1.49
1.61
1.8
1.98
2.34
2.7 |
TXRX-107-Y180M-4
TXRXF-107-Y180M-4 |
247
245 | |
|
402
444
501
554
654 |
440
400
355
320
270 |
1.22
1.35
1.52
1.67
1.98 |
TXRX-97-Y180M-4
TXRXF-97-Y180M-4 |
247
245 | |
|
22.0 |
12
14
16
18
20
22
25
28
33 |
17500
15400
13400
11900
10600
9670
8410
7420
6430 |
0.95
1.04
1.22
1.35
1.53
1.67
1.89
2.16
2.52 |
TXR-167-Y180L-4
TXRF-167-Y180L-4 |
852
847 |
|
功率
Kw |
輸出轉數
r/min |
輸出扭矩
N·m |
服務系數
fB |
型號 |
參考重量
kg |
|
22.0 |
20
22
24
28
31
36
41
49 |
10300
9610
8760
7580
6690
5780
5110
4300 |
1.13
1.22
1.35
1.53
1.76
1.98
2.25
2.70 |
TXR-147-Y180L-4
TXRF-147-Y180L-4 |
650
646 |
|
39
45
53
61
67
77
87
101
114 |
5400
4720
3990
3460
3150
2730
2410
2080
1840 |
1.35
1.53
1.71
2.05
2.25
2.65
2.97
3.42
3.80 |
TXR-137-Y180L-4
TXRF-137-Y180L-4 |
468
464 | |
|
73
80
94
107
126
145
171
186
220
252 |
2880
2610
2240
1960
1660
1450
1230
1130
960
840 |
1.35
1.49
1.71
1.98
2.30
2.70
3.14
2.34
2.79
2.95 |
TXR-107-Y180L-4
TXRF-107-Y180L-4 |
389
386 | |
|
135
158
175
206
236
282
326 |
1550
1330
1200
1020
890
745
645 |
1.22
1.35
1.53
1.76
1.89
2.16
2.25 |
TXR-97-Y180L-4
TXRF-97-Y180L-4 |
302
300 | |
|
349
384
433
477
555
636 |
600
545
485
400
380
330 |
1.26
1.35
1.53
1.71
1.98
2.25 |
TXRX-107-Y180L-4
TXRXF-107-Y180L-4 |
286
284 | |
|
402
444
501
554
654 |
520
475
420
380
320 |
1.04
1.13
1.26
1.40
1.67 |
TXRX-97-Y180L-4
TXRXF-97-Y180L-4 |
255
253 |
選型參數
|
功率
Kw |
輸出轉數
r/min |
輸出扭矩
N·m |
服務系數
fB |
型號 |
參考重量
kg |
|
30 |
20
22
25
28
33 |
14400
13100
11400
10100
8740 |
1.13
1.22
1.40
1.62
1.89 |
TXR-167-Y200L-4
TXRF-167-Y200L-4 |
932
927 |
|
37
43
53
62 |
7780
6710
5450
4620 |
2.08
2.41
2.97
3.46 |
TXR-167-Y200L-4
TXRF-167-Y200L-4 |
932
927 | |
|
32
36
41
49
61
72
82
94 |
9090
7850
6950
5840
4710
3980
3510
3050 |
1.30
1.49
1.67
1.98
2.25
2.70
2.73
3.10 |
TXR-147-Y200L-4
TXRF-147-Y200L-4 |
730
725 | |
|
53
61
67
77
88
101
115
136
194
230 |
5420
4700
4290
3710
3270
2830
2500
2100
1480
1240 |
1.20
1.53
1.67
1.98
2.16
2.50
2.79
3.30
3.40
3.60 |
TXR-137-Y200L-4
TXRF-137-Y200L-4 |
548
545 | |
|
94
108
127
145
172
187
221
252
299 |
3050
2660
2260
1940
1670
1530
1300
1140
960 |
1.26
1.44
1.71
1.98
2.00
2.05
2.15
2.34
2.70 |
TXR-107-Y200L-4
TXRF-107-Y200L-4 |
469
466 | |
|
207
237
283
327 |
1390
1210
1010
880 |
1.20
1.31
1.45
1.55 |
TXR-97-Y200L-4
TXRF-97-Y200L-4 |
382
379
| |
|
434
479
557
638 |
660
600
515
450 |
1.13
1.26
1.44
1.67 |
TXRX-107-Y200L-4
TXRXF-107-Y200L-4 |
366
364 | |
|
503
556
656 |
570
515
435 |
0.91
1.02
1.20 |
TXRX-97-Y200L-4
TXRXF-97-Y200L-4 |
335
333 |
|
功率
Kw |
輸出轉數
r/min |
輸出扭矩
N·m |
服務系數
fB |
型號 |
參考重量
kg |
|
37 |
20
22
25
28
33
37
43
53
60
67
77
87 |
17700
16200
14100
12400
10800
9600
8270
6720
5900
5250
4580
4080 |
0.9
0.99
1.17
1.30
1.49
1.70
1.98
2.03
2.15
2.25
3.15
3.33 |
TXR-167-Y225S-4
TXRF-167-Y225S-4 |
946
941 |
|
32
36
41
49
61
72
82
94
106 |
11200
9680
8570
7200
5810
4910
4340
3760
3340 |
1.04
1.22
1.35
1.60
1.80
2.15
2.20
3.15
3.45 |
TXR-147-Y225S-4
TXRF-147-Y225S-4 |
744
739 | |
|
61
67
77
88
101
115
136
169
194
230
285 |
5800
5290
4580
4040
3490
3080
2590
2090
1820
1530
1240 |
1.26
1.35
1.58
1.80
2.07
2.78
2.78
3.30
3.31
3.33
3.35 |
TXR-137-Y225S-4
TXRF-137-Y225S-4 |
562
558 | |
|
108
127
145
172
187
221
252
299 |
3280
2790
2430
2060
1890
1600
1400
1180 |
1.17
1.40
1.58
1.69
1.70
1.67
1.89
2.18 |
TXR-107-Y225S-4
TXRF-107-Y225S-4 |
483
480 |
|
功率
Kw |
輸出轉數
r/min |
輸出扭矩
N·m |
服務系數
fB |
型號 |
參考重量
kg |
|
37 |
434
479
557
638
752 |
810
740
635
555
470 |
0.90
0.99
1.17
1.35
1.49 |
TXRX-107-Y225S-4
TXRXF-107-Y225S-4 |
380
377 |
選型參數
|
45 |
28
33
37
43
53
62
68
77
87 |
15100
13100
11700
10100
8170
6930
6390
5560
4960 |
1.08
1.22
1.40
1.60
1.98
2.00
2.15
2.60
2.70 |
TXR-167-Y225M-4
TXRF-167-Y225M-4 |
982
977 |
|
49
61
72
82
94
106
123
203 |
8760
7070
5970
5270
4570
4070
3510
2120 |
1.35
1.52
1.67
1.80
2.25
2.5
2.97
3.35 |
TXR-147-Y225M-4
TXRF-147-Y225M-4 |
780
775 | |
|
88
101
115
136
169
194
230
285 |
4940
4240
3750
3150
2550
2220
1860
1510 |
1.49
4.71
1.89
2.25
2.80
2.80
2.43
2.85 |
TXR-137-Y225M-4
TXRF-137-Y225M-4 |
598
594 | |
|
127
145
172
187
221
252
299 |
3390
2960
2500
2300
1950
1700
1440 |
1.13
1.30
1.52
1.45
1.52
1.58
1.80 |
TXR-107-Y225M-4
TXRF-107-Y225M-4 |
519
515 | |
|
479
557
638
752 |
900
770
675
570 |
0.81
0.99
1.13
1.22 |
TXRX-107-Y250M-4
TXRXF-107-Y250M-4 |
416
413 | |
|
55 |
29
33
37
43 |
18400
16000
14200
12300 |
0.88
0.99
1.10
1.26 |
TXR-167-Y250M-4
TXRF-167-Y250M-4 |
1009
1084 |
|
功率
Kw |
輸出轉數
r/min |
輸出扭矩
N·m |
服務系數
fB |
型號 |
參考重量
kg |
|
55 |
53
62
68
77
87
102
123 |
9960
8440
7780
6780
6050
5150
4270 |
1.61
1.68
1.70
2.00
2.20
2.75
3.29 |
TXR-167-Y250M-4
TXRF-167-Y250M-4 |
1009
1084 |
|
49
61
72
82
94
106
123
151
203
250 |
10700
8610
7280
6420
5570
4950
4270
3470
2580
2100 |
1.00
1.12
1.30
1.33
1.52
2.00
2.31
2.62
2.92
3.33 |
TXR-147-Y250M-4
TXRF-147-Y250M-4 |
887
883 | |
|
77
88
102
115
137
169
194
231
286 |
6780
5980
5170
4570
3840
3100
2700
2270
1830 |
1.02
1.15
1.32
1.48
1.50
1.58
1.62
1.87
2.13 |
TXR-137-Y250M-4
TXRF-137-Y250M-4 |
705
703 | |
|
75 |
43
53
62
68
78
87
102
123
145 |
16700
13500
11500
10600
9210
8220
7000
5800
4950 |
0.94
1.15
1.21
1.21
1.49
1.57
1.81
1.99
2.50 |
TXR-167-Y280S-4
TXRF-167-Y280S-4 |
1224
1214
|
|
72
82
95
106
123
152
179
204
251
296 |
9890
8730
7570
6730
5800
4710
4000
3510
2850
2420 |
1.00
1.05
1.31
1.57
1.87
1.91
1.98
2.13
2.55
3.06 |
TXR-147-Y280S-4
TXRF-147-Y280S-4 |
1022
1017 |
|
功率
Kw |
輸出轉數
r/min |
輸出扭矩
N·m |
服務系數
fB |
型號 |
參考重量
kg |
|
90 |
53
62
68
78
87
102
123
145 |
16200
13800
12700
11100
9860
8410
6960
5940 |
0.94
1.11
1.12
1.23
1.27
1.58
1.88
2.12 |
TXR-167-Y280M-4
TXRF-167-Y280M-4 |
1329
1323 |
|
72
82
95
106
123
152
179
204
251
296 |
11900
10500
9080
8080
6960
5660
4800
4210
3430
2900 |
0.8
0.82
1.16
1.24
1.48
1.65
1.88
1.79
2.00
2.4 |
TXR-147-Y280M-4
TXRF-147-Y280M-4 |
1127
1122 |

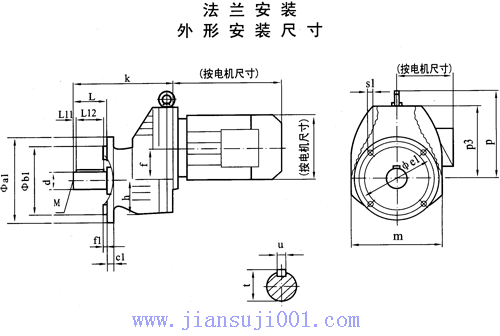

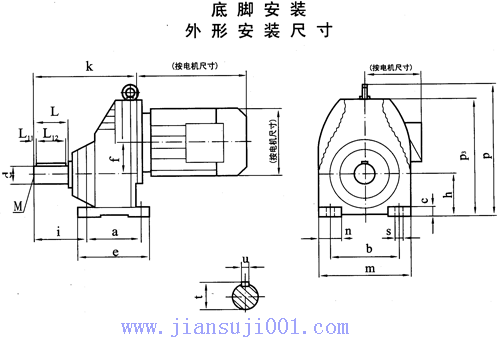

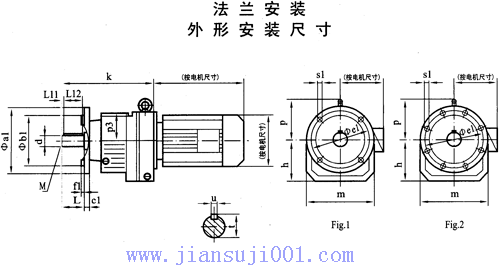

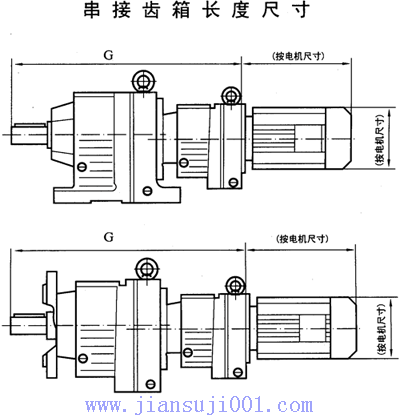

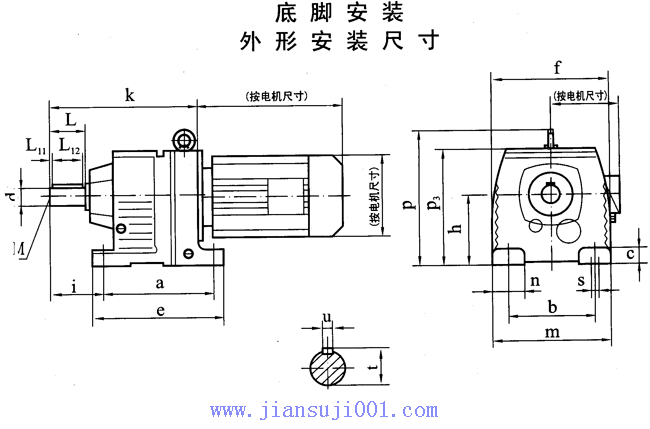

5 TXR系列外形安裝尺寸
|
型號 |
a |
b |
c |
e |
f |
h |
i |
k |
m |
n |
p |
p3 |
s |
d |
L |
L11 |
L12 |
t |
u |
M |
|
TXR-37 |
130 |
110 |
18 |
160 |
161 |
90 |
75 |
201 |
145 |
35 |
- |
151 |
9 |
25 |
50 |
3.5 |
40 |
28 |
8 |
M10 |
|
TXR-47 |
165 |
135 |
24 |
195 |
178 |
115 |
90 |
235 |
170 |
42 |
- |
187 |
13.5 |
30 |
60 |
3.5 |
50 |
33 |
8 |
M10 |
|
TXR-57 |
165 |
135 |
24 |
200 |
202 |
115 |
100 |
257 |
190 |
55 |
- |
187 |
13.5 |
35 |
70 |
7 |
56 |
38 |
10 |
M12 |
|
TXR-67 |
195 |
150 |
30 |
235 |
215 |
130 |
100 |
280 |
210 |
60 |
243 |
212 |
14 |
35 |
70 |
7 |
56 |
38 |
10 |
M12 |
|
TXR-77 |
205 |
170 |
30 |
245 |
235 |
140 |
115 |
300 |
230 |
60 |
269 |
228 |
17.5 |
40 |
80 |
5 |
70 |
43 |
12 |
M16 |
|
TXR-87 |
260 |
215 |
45 |
310 |
297 |
180 |
140 |
372 |
290 |
75 |
345 |
295 |
17.5 |
50 |
100 |
10 |
80 |
53.5 |
14 |
M16 |
|
TXR-97 |
310 |
250 |
55 |
365 |
348 |
225 |
160 |
440 |
340 |
90 |
418 |
368 |
22 |
60 |
120 |
5 |
110 |
64 |
18 |
M20 |
|
TXR-107 |
370 |
290 |
65 |
440 |
409 |
250 |
185 |
495 |
400 |
110 |
475 |
408 |
26 |
70 |
140 |
7.5 |
125 |
74.5 |
20 |
M20 |
|
TXR-137 |
410 |
340 |
70 |
490 |
458 |
315 |
220 |
589 |
450 |
110 |
562 |
495 |
33 |
90 |
170 |
5 |
160 |
95 |
25 |
M24 |
|
TXR-147 |
500 |
380 |
80 |
590 |
540 |
355 |
260 |
695 |
530 |
150 |
637 |
565 |
39 |
110 |
210 |
15 |
180 |
116 |
28 |
M24 |
|
TXR-167 |
580 |
500 |
100 |
670 |
670 |
425 |
270 |
790 |
660 |
160 |
749 |
675 |
39 |
120 |
210 |
5 |
200 |
127 |
32 |
M24 |
*電機尺寸參見附頁，括號內尺寸為參考尺寸
TXR37-TXR167斜齒輪減速電機法蘭安裝外形安裝尺寸
|
型號 |
a1 |
b1 |
e1 |
f1 |
c1 |
L |
L11 |
L12 |
h |
k |
d |
u |
t |
p3 |
p |
m |
Fig |
s1 |
M |
|
TXRF-37 |
120 |
80 |
100 |
3 |
8 |
50 |
3.5 |
40 |
94 |
207 |
25 |
8 |
28 |
61 |
- |
161 |
1 |
6.6 |
M10 |
|
TXRF-47 |
140 |
95 |
115 |
3 |
10 |
60 |
3.5 |
50 |
118 |
235 |
30 |
8 |
33 |
72 |
- |
178 |
1 |
9 |
M10 |
|
TXRF-57 |
160 |
110 |
130 |
3.5 |
10 |
70 |
7 |
56 |
121 |
257 |
35 |
10 |
38 |
72 |
- |
202 |
1 |
9 |
M12 |
|
TXRF-67 |
200 |
130 |
165 |
3.5 |
12 |
70 |
7 |
56 |
134 |
280 |
35 |
10 |
38 |
82 |
113 |
215 |
1 |
13.5 |
M12 |
|
TXRF-77 |
250 |
180 |
215 |
4 |
15 |
80 |
5 |
70 |
144 |
300 |
40 |
12 |
43 |
88 |
129 |
235 |
1 |
13.5 |
M16 |
|
TXRF-87 |
300 |
230 |
265 |
4 |
16 |
100 |
10 |
80 |
184 |
372 |
50 |
14 |
53.5 |
115 |
165 |
297 |
1 |
17.5 |
M16 |
|
TXRF-97 |
350 |
250 |
300 |
5 |
18 |
120 |
5 |
110 |
230 |
440 |
60 |
18 |
64 |
144 |
193 |
348 |
1 |
17.5 |
M20 |
|
TXRF-107 |
350 |
250 |
300 |
5 |
20 |
140 |
7.5 |
125 |
255 |
495 |
70 |
20 |
74.5 |
158 |
224 |
409 |
1 |
17.5 |
M20 |
|
TXRF-137 |
450 |
350 |
400 |
5 |
22 |
170 |
5 |
160 |
320 |
589 |
90 |
25 |
95 |
180 |
247 |
458 |
2 |
17.5 |
M24 |
|
TXRF-147 |
450 |
350 |
400 |
5 |
22 |
210 |
15 |
180 |
361 |
695 |
110 |
28 |
116 |
210 |
285 |
540 |
2 |
17.5 |
M24 |
|
TXRF-167 |
550 |
450 |
500 |
5 |
25 |
210 |
5 |
200 |
430 |
790 |
120 |
32 |
127 |
250 |
324 |
670 |
2 |
17.5 |
M24 |
*電機尺寸參見附頁，括號內尺寸為參考尺寸
TXRX57-TXRX107斜齒輪減速電機底腳安裝外形安裝尺寸
|
型號 |
a |
b |
c |
e |
f |
h |
i |
k |
m |
n |
p |
p3 |
s |
d |
L |
L11 |
L12 |
t |
u |
M |
|
TXRX-57 |
110 |
125 |
18 |
137 |
52 |
63 |
56 |
174 |
156 |
31 |
- |
202 |
11 |
20 |
40 |
3.5 |
32 |
22.5 |
6 |
M6 |
|
TXRX-67 |
120 |
135 |
20 |
150 |
60 |
80 |
75 |
201 |
170 |
35 |
- |
226 |
13.5 |
25 |
50 |
3.5 |
40 |
28 |
8 |
M10 |
|
TXRX-77 |
150 |
170 |
25 |
190 |
72 |
90 |
85 |
227 |
204 |
50 |
311 |
271 |
17.5 |
30 |
60 |
3.5 |
50 |
33 |
8 |
M10 |
|
TXRX-87 |
160 |
215 |
30 |
206 |
93.5 |
100 |
110 |
269 |
266 |
60 |
372 |
332 |
17.5 |
40 |
80 |
5 |
70 |
43 |
12 |
M16 |
|
TXRX-97 |
185 |
250 |
35 |
240 |
116 |
112 |
140 |
316 |
320 |
70 |
440 |
393 |
22 |
50 |
100 |
10 |
80 |
53.5 |
14 |
M16 |
|
TXRX-107 |
210 |
310 |
45 |
260 |
130 |
140 |
152 |
364 |
360 |
80 |
506 |
459 |
22 |
60 |
120 |
5 |
110 |
64 |
18 |
M20 |
*電機尺寸參見附頁，括號內尺寸為參考尺寸
TXRXF57-TXRXF107斜齒輪減速電機法蘭安裝外形安裝尺寸
|
型號 |
a1 |
b1 |
e1 |
f1 |
c1 |
L |
L11 |
L12 |
h |
k |
d |
u |
t |
p3 |
p |
m |
s1 |
M |
|
TXRXF-57 |
140 |
95 |
115 |
3 |
10 |
40 |
5 |
32 |
62 |
174 |
20 |
6 |
22.5 |
139 |
- |
162 |
9 |
M6 |
|
TXRXF-67 |
160 |
110 |
130 |
3.5 |
10 |
50 |
3.5 |
40 |
70 |
201 |
25 |
8 |
28 |
147 |
- |
175 |
9 |
M10 |
|
TXRXF-77 |
200 |
130 |
165 |
3.5 |
12 |
60 |
3.5 |
50 |
78 |
227 |
30 |
8 |
33 |
181 |
221 |
210 |
11 |
M10 |
|
TXRXF-87 |
250 |
180 |
215 |
4 |
15 |
80 |
5 |
70 |
98 |
269 |
40 |
12 |
43 |
232 |
272 |
272 |
13.5 |
M16 |
|
TXRXF-97 |
300 |
230 |
265 |
4 |
16 |
100 |
10 |
80 |
118 |
316 |
50 |
14 |
53.5 |
281 |
328 |
328 |
13.5 |
M16 |
|
TXRXF-107 |
350 |
250 |
300 |
5 |
18 |
120 |
5 |
110 |
135 |
364 |
60 |
18 |
64 |
319 |
366 |
370 |
17.5 |
M20 |
*電機尺寸參見附頁，括號內尺寸為參考尺寸
TXR系列斜齒輪減速電機串接齒箱長度尺寸
|
機座號 |
TXR-47/37
TXRF-47/37 |
TXR-57/37
TXRF-57/37 |
TXR-67/37
TXRF-67/37 |
TXR-77/37
TXRF-77/37 |
TXR-87/57
TXRF-87/57 |
|
G |
405 |
426 |
450 |
472 |
575 |
|
機座號 |
TXR-97/57
TXRF-97/57 |
TXR-87/67
TXRF-87/67 |
TXR-97/67
TXRF-97/67 |
TXR-107/77
TXRF-107/77 |
TXR-137/77
TXRF-137/77 |
|
G |
642 |
600 |
670 |
735 |
830 |
|
機座號 |
TXR-147/77
TXRF-147/77 |
TXR-147/87
TXRF-147/87 |
TXR-167/97
TXRF-167/97 |
TXR-167/107
TXRF-167/107 |
- |
|
G |
940 |
998 |
1140 |
1175 |
- |
*1、其余外形安裝尺寸參見單個齒箱的相關尺寸；
2、電機尺寸參見附頁，括號內尺寸為參考尺寸。
資料整理中！
| 頁次：2/2 每頁10條 共19條信息 分頁：[1][2] |
