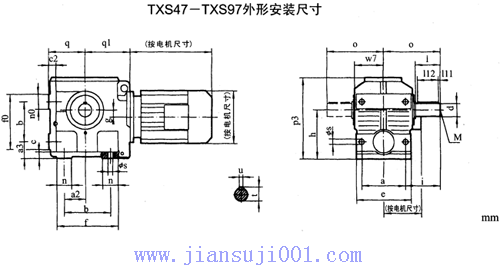

TXS47-TXS97斜齒輪—蝸輪減速電機外形安裝尺寸
|
型號 |
a |
a2 |
a3 |
b |
c |
c2 |
e |
f |
f0 |
g |
h |
i |
n |
n0 |
o |
p3 |
q |
q1 |
s |
w7 |
d |
l |
l11 |
l12 |
u |
t |
M |
|
TXS47 |
100 |
35 |
35 |
80 |
15 |
12 |
120 |
112 |
108 |
8 |
100 |
65 |
30 |
25 |
115 |
165 |
75 |
96 |
11 |
60 |
25 |
50 |
5 |
40 |
8 |
28 |
M10 |
|
TXS57 |
110 |
45 |
35 |
100 |
15 |
12 |
136 |
130 |
130 |
20 |
112 |
79 |
30 |
30 |
134 |
189 |
80 |
107 |
11 |
71 |
30 |
60 |
3.5 |
50 |
8 |
33 |
M10 |
|
TXS67 |
130 |
60 |
40 |
130 |
20 |
15 |
160 |
175 |
170 |
22 |
140 |
95 |
45 |
40 |
160 |
236 |
106 |
135 |
13.5 |
85.5 |
35 |
70 |
7 |
56 |
10 |
38 |
M12 |
|
TXS77 |
150 |
75 |
70 |
135 |
25 |
25 |
185 |
204 |
177 |
34 |
180 |
120 |
69 |
42 |
195 |
301 |
125 |
162 |
17.5 |
101 |
45 |
90 |
5 |
80 |
14 |
48.5 |
M16 |
|
TXS87 |
200 |
92 |
82 |
180 |
30 |
30 |
250 |
247 |
230 |
37.5 |
225 |
155 |
67 |
50 |
255 |
368 |
150 |
190 |
22 |
130 |
60 |
120 |
5 |
110 |
18 |
64 |
M20 |
|
TXS97 |
250 |
115 |
90 |
235 |
35 |
35 |
300 |
320 |
295 |
52 |
280 |
170 |
85 |
60 |
295 |
455 |
180 |
240 |
26 |
150 |
70 |
140 |
7.5 |
125 |
20 |
74.5 |
M20 |
*電機尺寸參見附頁，括號內尺寸為參考尺寸

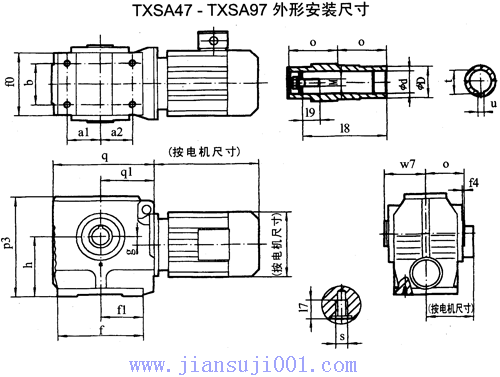

TXSA47-TXSA97斜齒輪—蝸輪減速電機外形安裝尺寸
|
型號 |
a1 |
a2 |
b |
f0 |
h |
f1 |
f |
p3 |
q |
q1 |
g |
w7 |
l7 |
s |
f4 |
o |
18 |
l19 |
D |
d |
u |
t |
M |
|
TXSA47 |
35 |
52 |
60 |
94 |
100 |
67 |
127 |
179 |
171 |
96 |
8 |
63 |
20 |
M10 |
2.5 |
60 |
105 |
17 |
45 |
30 |
8 |
33.3 |
M10 |
|
TXSA57 |
58.5 |
58.5 |
60 |
100 |
112 |
73 |
146 |
189 |
187 |
107 |
20 |
78 |
20 |
M10 |
3 |
75 |
132 |
22 |
50 |
35 |
10 |
38.3 |
M12 |
|
TXSA67 |
71.5 |
80.5 |
88 |
128 |
140 |
95.5 |
182 |
236 |
242 |
135 |
22 |
87 |
25 |
M12 |
3.5 |
8.4 |
144 |
29 |
65 |
45 |
14 |
48.8 |
M16 |
|
TXSA77 |
85 |
85 |
102 |
154 |
180 |
104 |
204 |
301 |
287 |
162 |
34 |
108 |
32 |
M16 |
4 |
105 |
180 |
37 |
80 |
60 |
18 |
64.4 |
M20 |
|
TXSA87 |
115 |
110 |
118 |
194 |
225 |
125 |
260 |
368 |
340 |
190 |
37.5 |
128 |
32 |
M16 |
5 |
125 |
220 |
34 |
95 |
70 |
20 |
74.9 |
M20 |
|
TXSA97 |
135 |
113 |
160 |
236 |
280 |
140 |
301 |
455 |
420 |
240 |
52 |
149 |
36 |
M20 |
5 |
145 |
255 |
41 |
120 |
90 |
25 |
95.4 |
M24 |
*電機尺寸參見附頁，括號內尺寸為參考尺寸

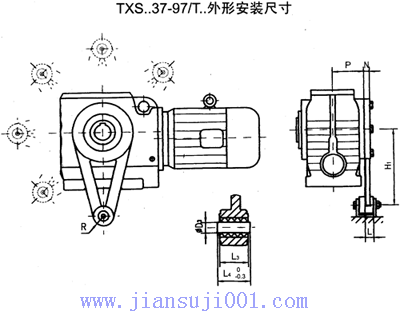

RXS..37-97/T..斜齒輪—蝸輪減速電機外形安裝尺寸
|
型號 |
P |
N |
H1 |
R |
L |
L3 |
L4 |
фD3 |
|
RXS..37/T |
57 |
10 |
110 |
21 |
26 |
31 |
|
10±0.01 |
|
RXS..47/T |
57.5 |
15 |
130 |
21 |
20.5 |
31 |
|
10±0.01 |
|
RXS..57/T |
72 |
15 |
160 |
21 |
18.5 |
31 |
|
10±0.01 |
|
RXS..67/T |
80.5 |
18 |
200 |
21 |
19.5 |
31 |
|
10±0.01 |
|
RXS..77/T |
101 |
18 |
250 |
30 |
32.5 |
54 |
|
16.4±0.08 |
|
RXS..88/T |
120 |
24 |
310 |
30 |
25.5 |
54 |
|
16.4±0.08 |
|
RXS..97/T |
140 |
26 |
380 |
40 |
33 |
72 |
|
25±0.08 |

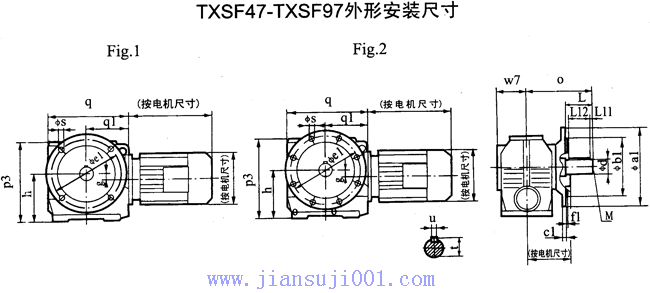

TXSF47-TXSF97斜齒輪—蝸輪減速電機外形安裝尺寸
|
型號 |
a1 |
b1 |
e1 |
Fig |
S |
h |
f1 |
c1 |
p3 |
q |
q1 |
g |
w7 |
o |
L |
L11 |
L12 |
d |
u |
t |
M |
|
TXSF47 |
160 |
110 |
130 |
1 |
9 |
100 |
3.5 |
10 |
179 |
171 |
96 |
8 |
57.5 |
133.5 |
50 |
5 |
40 |
25 |
8 |
28 |
M10 |
|
TXSF57 |
200 |
1130 |
165 |
1 |
11 |
112 |
3.5 |
12 |
189 |
187 |
107 |
20 |
72 |
160 |
60 |
3.5 |
50 |
30 |
8 |
33 |
M10 |
|
TXSF67 |
200 |
130 |
165 |
1 |
11 |
140 |
3.5 |
12 |
236 |
242 |
135 |
22 |
80.5 |
190 |
70 |
7 |
56 |
35 |
10 |
38 |
M12 |
|
TXSF77 |
250 |
180 |
215 |
1 |
13.5 |
180 |
4 |
15 |
301 |
287 |
162 |
34 |
131 |
232 |
90 |
5 |
80 |
45 |
14 |
48.5 |
M16 |
|
TXSF87 |
350 |
250 |
300 |
1 |
17.5 |
225 |
5 |
18 |
368 |
340 |
190 |
37.5 |
145 |
290 |
120 |
5 |
110 |
60 |
18 |
64 |
M20 |
|
TXSF97 |
450 |
350 |
400 |
2 |
17.5 |
280 |
5 |
22 |
455 |
420 |
240 |
52 |
165 |
340 |
140 |
7.5 |
125 |
70 |
20 |
74.5 |
M20 |
*電機尺寸參見附頁，括號內尺寸為參考尺寸

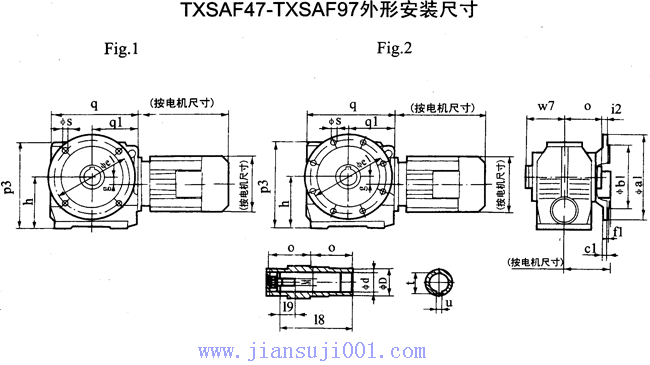

TXSAF47-TXSAF97斜齒輪—蝸輪減速電機外形安裝尺寸
|
型號 |
a1 |
b1 |
e1 |
Fig |
S |
h |
f1 |
c1 |
p3 |
q |
q1 |
g |
w7 |
o |
i2 |
l8 |
l9 |
D |
d |
u |
t |
M |
|
TXSAF47 |
160 |
110 |
130 |
1 |
9 |
100 |
3.5 |
10 |
179 |
171 |
96 |
8 |
63 |
60 |
24 |
105 |
17 |
45 |
30 |
8 |
33.3 |
M10 |
|
TXSAF57 |
200 |
1130 |
165 |
1 |
11 |
112 |
3.5 |
12 |
189 |
187 |
107 |
20 |
78 |
75 |
25 |
132 |
22 |
50 |
35 |
10 |
38.3 |
M12 |
|
TXSAF67 |
200 |
130 |
165 |
1 |
11 |
140 |
3.5 |
12 |
236 |
242 |
135 |
22 |
87 |
84 |
42.5 |
144 |
29 |
65 |
45 |
14 |
48.8 |
M16 |
|
TXSAF77 |
250 |
180 |
215 |
1 |
13.5 |
180 |
4 |
15 |
301 |
287 |
162 |
34 |
108 |
105 |
45.5 |
180 |
37 |
80 |
60 |
18 |
64.4 |
M20 |
|
TXSAF87 |
350 |
250 |
300 |
1 |
17.5 |
225 |
5 |
18 |
368 |
340 |
190 |
37.5 |
128 |
125 |
52.5 |
220 |
34 |
95 |
70 |
20 |
74.9 |
M20 |
|
TXSAF97 |
450 |
350 |
400 |
2 |
17.5 |
280 |
5 |
22 |
455 |
420 |
240 |
52 |
149 |
145 |
60 |
255 |
41 |
120 |
90 |
25 |
95.4 |
M24 |
*電機尺寸參見附頁，括號內尺寸為參考尺寸
