JTS系列斜齒輪-蝸輪減速電機特點：
JTS系列斜齒輪-蝸輪減速電機是由斜齒輪與蝸輪結合一體實現傳動的，該系列產品傳動平穩，體積小巧、轉速范圍寬廣、通用性好，可適用于各種安裝方式。
該減速電機可配置除Y系列三相異步電動機以外的各種類電機，以滿足不同用戶的需要。

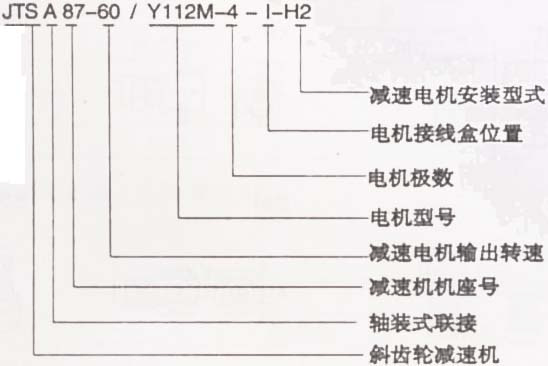

JTS系列斜齒輪-蝸輪減速電機形式代號：
聯接代號及形式；
|
JTS 底腳安裝、軸伸式安裝 |
JTSA 軸裝式聯接、底面安裝 |
|
JTSF 底腳安裝、軸伸式安裝 |
JTSAF 法蘭安裝、軸裝式聯接 |

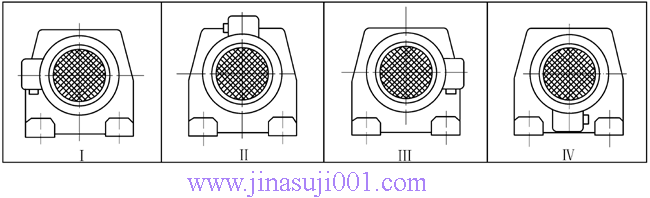

電機接線盒位置：

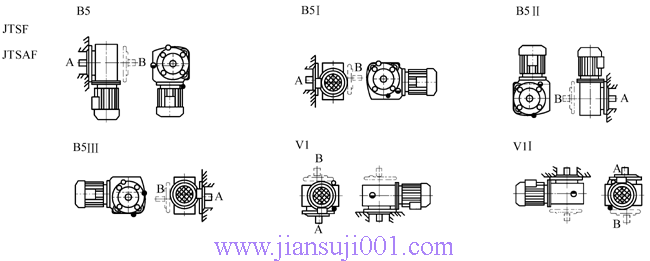

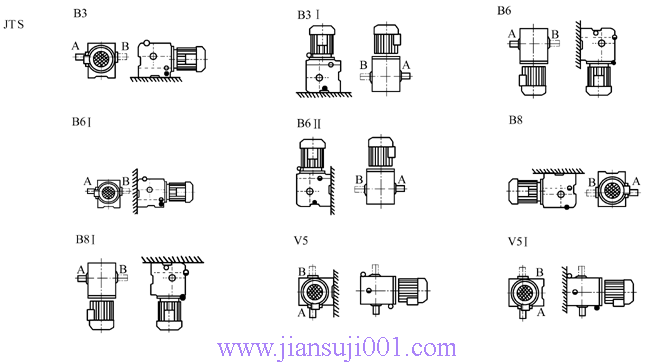

安裝形式JTS JTSF JTSA JTSAF形式：
JTS系列減速機型號選擇：
1、確定功率
負載所需功率：P1
工況系數SF，其值根據下式求出
SF=F×C
其中：
F=考慮了載荷性質和持續工作時間因素的最低工況系數。（見表1或附頁工況系數表）
表1
|
載荷特征 |
F | ||
|
8h/24h |
16h/24h |
24h/24h | |
|
平穩載荷 |
1 |
1 |
1 |
|
中等沖擊載荷 |
1.15 |
1.25 |
1.4 |
|
重沖擊載荷 |
1.25 |
1.4 |
1.7 |
C=取決于每小時啟動次數的修正系數（見表2）
表2
|
|
C | |||
|
8h/24h |
16h/24h |
24h/24h | ||
|
啟動次數/每小時 |
＜10 |
1 |
1 |
1 |
|
＜100 |
1.15 |
1.25 |
1.4 | |
|
＜500 |
1.25 |
1.4 |
1.7 | |
按下式確定功率
P=SF×P1
2、確定規格
根據計算功率P和輸出轉速由選型表選定減速電機規格，同時保證SF≤fB
fB =減速機服務系數 選型參數表：
|
功率kw |
輸出轉數r/min |
輸出扭矩N.m |
服務系數fB |
型號 |
參考重量kg |
|
0.18 |
4.4
5.0
5.9 |
200
180
157 |
1.40
1.55
1.70 |
JTS57-Y711-6
JTSF57-Y711-6
JTSA57-Y711-6
JTSAF57-Y711-6 |
21
21
20
21 |
|
6.7
7.6
8.9 |
140
125
109 |
1.90
2.10
2.30 |
JTS57-Y632-4
JTSF57-Y632-4
JTSA57-Y632-4
JTSAF57-Y632-4 |
20
20
19
20 | |
|
6.5
7.4
8.7
10
11
13
15
17 |
146
130
114
100
89
82
72
63 |
0.95
1.00
1.15
1.25
1.35
1.45
1.65
1.80 |
JTS47-Y632-4
JTSF47-Y632-4
JTSA47-Y632-4
JTSAF47-Y632-4 |
15.5
15.5
15
15.5 | |
|
8.0
9.3
11
13
15
16 |
114
100
87
76
67
61 |
0.8
0.9
1.00
1.10
1.20
1.35 |
JTS37-Y632-4
JTSF37-Y632-4
JTSAF37-Y632-4 |
12
12
12 | |
|
19
22
26
31
36
41
46
54
63
74
87
100
116
130 |
53
55
48
41
36
32
28
24
23
20
17
15
13
12 |
1.50
1.45
1.65
1.85
2.00
2.12
2.30
2.51
2.60
2.65
2.75
2.92
3.30
3.55 |
JTS37-Y632-4
JTSF37-Y632-4
JTSAF37-Y632-4 |
12
12
12 | |
|
95
112
130 |
15
13
12 |
2.88
3.10
3.55 |
JTS37-Y632-4
JTSF37-Y632-4
JTSAF37-Y632-4 |
12
12
12 | |
|
0.25 |
3.3
3.6
3.8
4.3 |
415
390
370
330 |
1.4
1.45
1.48
1.6 |
JTS67-Y802-8
JTSF67-Y802-8
JTSA67-Y802-8
JTSAF67-Y802-8 |
44
44
42
44 |
|
4.3
4.9
5.6 |
295
265
255 |
1.7
1.85
1.95 |
JTS67-Y712-6
JTSF67-Y712-6
JTSA67-Y712-6
JTSAF67-Y712-6 |
32
32
30.5
32 | |
|
5.5
6.3
7.3 |
240
210
188 |
2.0
2.2
2.4 |
JTS67-Y711-4
JTSF67-Y711-4
JTSA67-Y711-4
JTSAF67-Y711-4 |
32
32
30.5
32 | |
|
4.5
5.1
5.9 |
275
245
215 |
1.05
1.15
1.25 |
JTS57-Y712-6
JTSF57-Y712-6
JTSA57-Y712-6
JTSAF57-Y712-6 |
21
21
20
21 | |
|
6.6
7.5
8.8
10
12
13
15 |
196
176
153
135
121
111
97 |
1.35
1.50
1.65
1.80
2.00
2.20
2.40 |
JTS57-Y711-4
JTSF57-Y711-4
JTSA57-Y711-4
JTSAF57-Y711-4 |
21
21
20
21 | |
|
9.9
11
12
14
17
20
22
26 |
141
125
115
101
89
92
81
70 |
0.9
0.95
1.05
1.15
1.30
1.40
1.50
1.70 |
JTS47-Y711-4
JTSF47-Y711-4
JTSA47-Y711-4
JTSAF47-Y711-4 |
16.5
16.5
16
16.5 | |
|
19
22
26
30
35
40
46
54
62
73
85
99
114
128
150
175
208 |
74
78
67
58
51
45
40
34
32
28
24
21
18
16
14
12
10 |
1.05
1.05
1.15
1.30
1.45
1.65
1.80
2.00
1.60
1.80
2.00
2.30
2.50
2.70
3.00
3.40
3.80 |
JTS37-Y711-4
JTSF37-Y711-4
JTSAF37-Y711-4 |
13
13
13 | |
|
93
109
127
148
174
202 |
21
18
16
14
12
11 |
2.80
2.90
2.70
3.00
3.40
3.70 |
JTS37-Y632-2
JTSF37-Y632-2
JTSAF37-Y632-2 |
12
12
12 |
選型參數表：
|
功率kw |
輸出轉數r/min |
輸出扭矩N.m |
服務系數fB |
型號 |
參考重量kg |
|
0.37 |
2.4
2.6
3.1 |
980
890
775 |
2.3
2.5
2.95 |
JTS87-Y90S-8
JTSF87-Y90S-8
JTSA87-Y90S-8
JTSAF87-Y90S-8 |
123
123
120
123 |
|
3.0
3.2
3.6
4.2 |
735
700
630
545 |
1.6
1.7
1.88
2.00 |
JTS77-Y90S-8
JTSF77-Y90S-8
JTSA77-Y90S-8
JTSAF77-Y90S-8 |
72.5
72.5
70
72.5 | |
|
3.9
4.2 |
495
545 |
1.91
2.00 |
JTS77-Y801-6
JTSF77-Y801-6
JTSA77-Y801-6
JTSAF77-Y801-6 |
67.5
67.5
66
67.5 | |
|
4.4
5.0
5.7 |
430
395
380 |
1.15
1.25
1.40 |
JTS67-Y801-6
JTSF67-Y801-6
JTSA67-Y801-6
JTSAF67-Y801-6 |
43
43
41
43 | |
|
6.7
7.7
8.7
9.6
11
12 |
295
265
235
220
195
174 |
1.55
1.70
1.90
2.0
2.2
2.5 |
JTS67-Y712-4
JTSF67-Y712-4
JTSA67-Y712-4
JTSAF67-Y712-4 |
32
32
30
32 | |
|
7.0
8.0
9.3
11
12
14
16
18
21
24 |
275
245
215
190
169
156
137
121
106
113 |
0.95
1.05
1.15
1.30
1.40
1.55
1.70
1.90
2.10
1.90 |
JTS57-Y712-4
JTSF57-Y712-4
JTSA57-Y712-4
JTSAF57-Y712-4 |
21.5
21.5
20.5
21.5 | |
|
18
21
24
28
32
36 |
125
128
114
98
86
76 |
0.90
1.00
1.05
1.20
1.35
1.50 |
JTS47-Y712-4
JTSF47-Y712-4
JTSA47-Y712-4
JTSAF47-Y712-4 |
17
17
16
17 | |
|
40
46
54
62
67
77
88 |
70
61
53
46
46
40
35 |
1.60
1.80
2.00
2.30
2.0
2.20
2.50 |
JTS47-Y712-4
JTSF47-Y712-4
JTSA47-Y712-4
JTSAF47-Y712-4 |
17
17
16
17 | |
|
27
32
37
43
48
57
66
77
91
105
121
136
160
186
221 |
94
81
71
62
56
48
45
39
34
29
26
23
20
17
14 |
0.85
0.95
1.05
1.15
1.25
1.45
1.15
1.30
1.45
1.60
1.75
1.95
2.20
2.40
2.80 |
JTS37-Y712-4
JTSF37-Y712-4
JTSAF37-Y712-4 |
13.5
13.5
13.5 | |
|
82
93
109
127
148
174
202
232
262
307 |
34
31
26
24
21
18
16
14
12
10 |
1.85
1.85
1.95
1.80
2.00
2.30
2.50
2.80
3.10
3.50 |
JTS37-Y711-2
JTSF37-Y711-2
JTSAF37-Y711-2 |
13
13
13 | |
|
0.55 |
2.4
2.6
3.1 |
1450
1320
1150 |
1.55
1.65
1.98 |
JTS87-Y90L-8
JTSF87-Y90L-8
JTSA87-Y90L-8
JTSAF87-Y90L-8 |
128
128
125
128 |
|
3.1
3.5
4.1
4.4 |
1130
1020
900
820 |
2.0
2.0
2.5
2.7 |
JTS87-Y802-6
JTSF87-Y802-6
JTSA87-Y802-6
JTSAF87-Y802-6 |
119
119
116
119 | |
|
3.0
3.2
3.6
4.2 |
1090
1040
930
810 |
1.02
1.05
1.25
1.40 |
JTS77-Y90L-8
JTSF77-Y90L-8
JTSA77-Y90L-8
JTSAF77-Y90L-8 |
77.5
77.5
75
77.5 | |
|
3.9
4.8
5.6 |
735
685
635 |
1.55
1.80
1.90 |
JTS77-Y802-6
JTSF77-Y802-6
JTSA77-Y802-6
JTSAF77-Y802-6 |
68.5
68.5
66.5
68.5 | |
|
5.3
5.9
6.7
7.3 |
660
510
460
425 |
1.85
2.10
2.30
2.40 |
JTS77-Y801-4
JTSF77-Y801-4
JTSA77-Y801-4
JTSAF77-Y801-4 |
67.5
67.5
65.5
67.5 | |
|
6.6
7.6
8.6
9.4
11
12
14
16
20 |
445
400
355
330
295
260
235
210
200 |
1.05
1.15
1.25
1.35
1.50
1.65
1.8
2.00
2.20 |
JTS67-Y801-4
JTSF67-Y801-4
JTSA67-Y801-4
JTSAF67-Y801-4 |
43
43
41.5
43 | |
|
13
16
19
20
24 |
250
245
215
200
176 |
1.00
1.05
1.10
1.20
1.45 |
JTS57-Y802-6
JTSF57-Y802-6
JTSA57-Y802-6
JTSAF57-Y802-6 |
33
33
32
33 | |
|
11
12
13
15
18
21
27
31
36
39
46
53
61
68 |
285
255
235
205
182
160
147
129
114
104
91
80
69
67 |
0.85
0.95
1.00
1.15
1.25
1.40
1.40
1.60
1.75
1.90
2.10
2.40
2.70
2.40 |
JTS57-Y801-4
JTSF57-Y801-4
JTSA57-Y801-4
JTSAF57-Y801-4 |
32
32
31
32 | |
|
27
31
36
39
46
53
61
66 |
148
130
115
105
91
80
70
69 |
0.80
0.90
1.00
1.05
1.20
1.35
1.50
1.35 |
JTS47-Y801-4
JTSF47-Y801-4
JTSA47-Y801-4
JTSAF47-Y801-4 |
27.5
27.5
26.5
27.5 | |
|
76
86
95
110
127
147 |
60
53
48
42
36
32 |
1.50
1.65
1.75
1.95
2.20
2.40 |
JTS47-Y801-4
JTSF47-Y801-4
JTSA47-Y801-4
JTSAF47-Y801-4 |
27.5
27.5
26.5
27.5 | |
|
48
56
65
77
89
104
119
134
157
183
218 |
84
73
63
54
51
44
38
34
29
25
22 |
0.85
0.95
1.05
1.20
0.95
1.05
1.15
1.30
1.45
1.60
1.80 |
JTS37-Y801-4
JTSF37-Y801-4
JTSAF37-Y801-4 |
24
24
24 | |
|
63
73
84
95
111
129
151
177
206
236
266
313
364
433 |
65
57
50
45
38
36
31
26
23
20
18
15
13
11 |
1.05
1.15
1.25
1.30
1.35
1.25
1.40
1.55
1.70
1.90
2.10
2.40
2.30
2.40 |
JTS37-Y712-2
JTSF37-Y712-2
JTSAF37-Y712-2 |
13.5
13.5
13.5 |
選型參數表：
|
功率kw |
輸出轉數r/min |
輸出扭矩N.m |
服務系數fB |
型號 |
參考重量kg |
|
0.75 |
2.4
2.6
3.0 |
2040
1890
1690 |
1.85
1.90
2.20 |
JTS97-Y100L-8
JTSF97-Y100L-8
JTSA97-Y100L-8
JTSAF97-Y100L-8 |
199
199
195
199 |
|
3.1
3.5
4.1
4.4 |
1540
1400
1220
1120 |
1.5
1.6
1.8
1.95 |
JTS87-Y90S-6
JTSF87-Y90S-6
JTSA87-Y90S-6
JTSAF87-Y90S-6 |
123
123
120
123 | |
|
4.9
5.9
6.7
7.2 |
920
770
690
580 |
2.20
2.50
2.80
3.00 |
JTS87-Y802-4
JTSF87-Y802-4
JTSA87-Y802-4
JTSAF87-Y802-4 |
119
119
116
119 | |
|
3.9
4.8
5.6 |
1090
990
860 |
1.15
1.30
1.40 |
JTSAF77-Y90S-6
JTSF77-Y90S-6
JTSA77-Y90S-6
JTSAF77-Y90S-6 |
72.5
72.5
71
72.5 | |
|
6.0
6.8
7.4
8.4
9.5
11
12 |
690
620
575
515
465
420
375 |
1.55
1.70
1.80
2.00
2.20
2.40
2.60 |
JTS77-Y802-4
JTSF77-Y802-4
JTSA77-Y802-4
JTSAF77-Y802-4 |
68.5
68.5
67
68.5 | |
|
8.7
9.6
11
12
14
16
20
23
25
28
32 |
480
445
395
355
315
280
270
245
225
197
175 |
0.95
1.00
1.10
1.20
1.35
1.50
1.60
1.75
1.90
2.10
2.40 |
JTSF67-Y802-4
JTSF67-Y802-4
JTSA67-Y802-4
JTSAF67-Y802-4 |
44
44
42.5
44 | |
|
13
16
19
20 |
345
295
295
275 |
0.8
0.9
0.9
1.00 |
JTS57-Y90S-6
JTSF57-Y90S-6
JTSA57-Y90S-6
JTSAF57-Y90S-6 |
37
37
36
37 | |
|
16
18
21
28
32
36
40
46
54
62
69
79
87
101 |
275
245
215
198
174
153
140
122
107
93
89
79
72
62 |
0.85
0.95
1.05
1.05
1.20
1.30
1.40
1.60
1.80
2.00
1.75
1.95
2.10
2.40 |
JTS57-Y802-4
JTSF57-Y802-4
JTSA57-Y802-4
JTSAF57-Y802-4 |
33
33
32
33 | |
|
46
54
62
67
77 |
123
107
94
92
80 |
0.90
1.00
1.10
1.00
1.10 |
JTS47-Y802-4
JTSF47-Y802-4
JTSA47-Y802-4
JTSAF47-Y802-4 |
28.5
28.5
28
28.5 | |
|
88
96
112
129
149
175 |
71
65
56
49
43
37 |
1.25
1.30
1.45
1.60
1.80
2.00 |
JTS47-Y802-4
JTSF47-Y802-4
JTSA47-Y802-4
JTSAF47-Y802-4 |
28.5
28.5
28
28.5 | |
|
79
121
136
160
186
221 |
72
52
46
40
34
29 |
0.90
0.85
0.95
1.05
1.20
1.35 |
JTS37-Y802-4
JTSF37-Y802-4
JTSAF37-Y802-4 |
25
25
25 | |
|
73
84
95
111
129
154
177
206
236
266
313
364 |
77
68
61
52
45
39
36
31
27
24
21
18 |
0.85
0.95
0.95
1.00
1.00
1.00
1.15
1.25
1.40
1.55
1.75
1.70 |
JTS37-Y801-2
JTSF37-Y801-2
JTSAF37-Y801-2 |
24
24
24 | |
|
1.1 |
2.4
2.6
2.9 |
3030
2800
2500 |
1.3
1.4
1.6 |
JTS97-Y100L2-8
JTSF97-Y100L2-8
JTSA97-Y100L2-8
JTSAF97-Y100L2-8 |
204
204
199
204 |
|
3.5
3.2
3.5
3.9 |
2160
2310
2130
1900 |
1.85
1.7
1.85
2.05 |
JTS97-Y90L-6
JTSF97-Y90L-6
JTSA97-Y90L-6
JTSAF97-Y90L-6 |
193
193
188
193 | |
|
3.3
3.5
4.0 |
2280
2130
1760 |
1.05
1.15
1.3 |
JTS87-Y90L-6
JTSF87-Y90L-6
JTSA87-Y90L-6
JTSAF87-Y90L-6 |
128
128
124
128 | |
|
4.5
5.0
6.0
6.8
7.6
8.5
9.6 |
1620
1330
1110
1000
900
820
740 |
1.4
1.5
1.75
1.90
2.10
2.20
2.50 |
JTS87-Y90S-4
JTSF87-Y90S-4
JTSA87-Y90S-4
JTSAF87-Y90S-4 |
123
123
119
123 | |
|
6.1
6.9
7.5
8.5
9.6
11
12
14
16 |
1000
900
830
745
670
605
545
480
425 |
1.10
1.20
1.25
1.35
1.50
1.65
1.80
2.00
2.20 |
JTS77-Y90S-4
JTSF77-Y90S-4
JTSA77-Y90S-4
JTSAF77-Y90S-4 |
72.5
72.5
71
72.5 | |
|
16
20
23
25
29
33
37
42
50 |
405
395
350
325
285
255
225
198
170 |
1.00
1.10
1.25
1.30
1.50
1.65
1.80
2.00
2.30 |
JTS67-Y90S-4
JTSF67-Y90S-4
JTSA67-Y90S-4
JTSAF67-Y90S-4 |
48
48
46.5
48 | |
|
32
37
41
47
54
63
70
80
88
103
118
137
160 |
250
220
205
177
155
135
129
114
104
90
79
68
59 |
0.80
0.90
0.95
1.10
1.25
1.35
1.20
1.35
1.45
1.65
1.85
2.1
2.4 |
JTS57-Y90S-4
JTSF57-Y90S-4
JTSA57-Y90S-4
JTSAF57-Y90S-4 |
37
37
36
37 | |
|
89
98
114
131
152
177 |
102
94
81
71
61
53 |
0.85
0.90
1.00
1.10
1.25
1.40 |
JTS47-Y90S-4
JTSF47-Y90S-4
JTSA47-Y90S-4
JTSAF47-Y90S-4 |
32.5
32.5
32
32.5 | |
|
189
224 |
49
42 |
0.85
0.95 |
JTS37-Y90S-4
JTSF37-Y90S-4
JTSAF37-Y90S-4 |
29
29
29 | |
|
206
236
266
313
364
433 |
45
40
35
30
26
22 |
0.85
0.95
1.05
1.20
1.15
1.20 |
JTS37-Y802-2
JTSF37-Y802-2
JTSAF37-Y802-2 |
25
25
25 |
選型參數表：
|
功率kw |
輸出轉數r/min |
輸出扭矩N.m |
服務系數fB |
型號 |
參考重量kg |
|
1.5 |
2.4
2.7
3.0
3.6 |
4030
3720
3330
2870 |
0.95
1.05
1.15
1.30 |
JTS97-Y112M-8
JTSF97-Y112M-8
JTSA97-Y112M-8
JTSQ97-Y112M-8 |
209
209
204
209 |
|
3.2
3.5
4.0
4.7 |
3150
2910
2600
2230 |
1.2
1.3
1.45
1.75 |
JTS97-Y100L-6
JTSF97-Y100L-6
JTSA97-Y100L-6
JTSAF97-Y100L-6 |
202
202
197
202 | |
|
4.9
5.4
6.1
7.2 |
2130
1970
1760
1510 |
1.75
1.85
2.1
2.45 |
JTS97-Y90L-4
JTSF97-Y90L-4
JTSA97-Y90L-4
JTSAF97-Y90L-4 |
193
193
188
193 | |
|
5.0
6.1
6.9
7.7
8.6
9.6
11
13 |
1800
1510
1350
1220
1110
1000
880
790 |
1.10
1.30
1.40
1.55
1.65
1.80
2.00
2.20 |
JTS87-Y90L-4
JTSF87-Y90L-4
JTSA87-Y90L-4
JTSAF87-Y90L-4 |
128
128
124
128 | |
|
8.6
9.7
11
12
14
16
20
22
25
29
32 |
1010
910
820
735
650
580
485
505
450
400
360 |
1.00
1.10
1.20
1.35
1.50
1.65
1.95
1.85
2.10
2.30
2.50 |
JTS77-Y90L-4
JTSF77-Y90L-4
JTSA77-Y90L-4
JTSAF77-Y90L-4 |
78
78
76
78 | |
|
20
23
25
29
33
37
43
50
60
67
77
88
99 |
535
475
435
385
340
305
270
230
196
186
163
144
128 |
0.85
0.90
0.95
1.10
1.20
1.35
1.50
1.70
2.00
1.70
1.90
2.10
2.30 |
JTS67-Y90L-4
JTSF67-Y90L-4
JTSA67-Y90L-4
JTSAF67-Y90L-4 |
53
53
51.5
53 | |
|
47
55
63
71
81
89
103
119
138
161 |
240
210
183
175
154
141
122
106
93
80 |
0.80
0.90
1.00
0.90
1.00
1.10
1.25
1.40
1.55
1.60 |
JTS57-Y90L-4
JTSF57-Y90L-4
JTSA57-Y90L-4
JTSAF57-Y90L-4 |
42
42
41
42 | |
|
132
152
179 |
96
83
72 |
0.85
0.90
1.05 |
JTS47-Y90L-4
JTSF47-Y90L-4
JTSA47-Y90L-4
JTSAF47-Y90L-4 |
37.5
37.5
37
37.5 | |
|
313
364
433 |
41
36
30 |
0.85
0.85
0.90 |
JTS37-Y90S-2
JTSF37-Y90S-2
JTSAF37-Y90S-2 |
29
29
29 | |
|
2.2 |
3.3
3.6
4.1
4.8 |
4530
4180
3730
3210 |
0.85
0.9
1.00
1.20 |
JTS97-Y112M-6
JTSF97-Y112M-6
JTSA97-Y112M-6
JTSAF97-Y112M-6 |
209
209
204
209 |
|
4.8
5.9
6.6
7.5
8.4
10
12
18 |
2740
2280
2070
1840
1660
1430
1230
990 |
1.3
1.5
1.65
1.80
1.95
2.20
2.60
2.10 |
JTS97-Y100L1-4
JTSF97-Y100L1-4
JTSA97-Y100L1-4
JTSAF97-Y100L1-4 |
200
200
194
200 | |
|
6.8
7.6
8.5
9.6
11
12
15
18
20
22
25 |
2000
1810
1640
1480
1300
1170
1000
830
890
790
710 |
0.95
1.05
1.15
1.25
1.40
1.50
1.75
2.00
1.60
1.75
1.90 |
JTS87-Y100L1-4
JTSF87-Y100L1-4
JTSA87-Y100L1-4
JTSAF87-Y100L1-4 |
135
135
131
135 | |
|
12
14
16
20
22
25
29
32
36
42
48
63
71 |
1090
960
850
715
745
660
590
535
475
415
365
290
260 |
0.9
1.00
1.10
1.30
1.25
1.40
1.55
1.70
1.90
2.10
2.40
2.00
2.20 |
JTS77-Y100L1-4
JTSF77-Y100L1-4
JTSA77-Y100L1-4
JTSAF77-Y100L1-4 |
84.5
84.5
82
84.5 | |
|
33
37
42
50
59
67
77
87
99
113
133
159 |
505
450
395
340
290
275
240
215
189
166
141
120 |
0.8
0.9
1.00
1.15
1.35
1.15
1.30
1.45
1.60
1.80
2.10
2.20 |
JTS67-Y100L1-4
JTSF67-Y100L1-4
JTSA67-Y100L1-4
JTSAF67-Y100L1-4 |
60
60
58.5
60 | |
|
103
118
137
160 |
180
157
137
117 |
0.85
0.95
1.06
1.20 |
JTS57-Y100L1-4
JTSF57-Y100L1-4
JTSA57-Y100L1-4
JTSAF57-Y100L1-4 |
49
49
48
49 |
選型參數表：
|
功率kw |
輸出轉數r/min |
輸出扭矩N.m |
服務系數fB |
型號 |
參考重量kg |
|
3.0 |
4.8
5.9
6.6
7.5
8.4
10
12
13
16
18 |
3740
3110
2820
2510
2270
1960
1670
1490
1280
1350 |
0.95
1.10
1.2
1.3
1.45
1.65
1.9
1.98
2.00
2.10 |
JTS97-Y100L2-4
JTSF97-Y100L2-4
JTSA97-Y100L2-4
JTSAF97-Y100L2-4 |
204
204
199
204 |
|
9.6
11
12
15
18
20
22
25 |
2010
1770
1590
1370
1140
1210
1070
970 |
0.9
1.00
1.10
1.25
1.50
1.15
1.30
1.40 |
JTS87-Y100L2-4
JTSF87-Y100L2-4
JTSA87-Y100L2-4
JTSAF87-Y100L2-4 |
139
139
135
139 | |
|
28
31
36
41 |
870
780
680
610 |
1.55
1.70
1.90
2.10 |
JTS87-Y100L2-4
JTSF87-Y100L2-4
JTSA87-Y100L2-4
JTSAF87-Y100L2-4 |
139
139
135
139 | |
|
20
25
29
32
36
42
48
58
63
71
80
91
105
119
145
171 |
980
900
810
725
645
565
500
415
400
355
320
280
245
215
179
153 |
0.95
1.05
1.15
1.25
1.40
1.55
1.75
2.00
1.50
1.60
2.10
2.30
2.50
2.50
2.55
2.60 |
JTS77-Y100L2-4
JTSF77-Y100L2-4
JTSA77-Y100L2-4
JTSAF77-Y100L2-4 |
89
89
87
89 | |
|
50
59
67
77
87
99
113
133
159 |
465
395
375
330
290
260
225
193
163 |
0.85
1.00
0.85
0.95
1.05
1.15
1.35
1.55
1.65 |
JTS67-Y100L2-4
JTSF67-Y100L2-4
JTSA67-Y100L2-4
JTSAF67-Y100L2-4 |
64
64
62.5
64 | |
|
4.0 |
7.6
8.6
10
12
14
16
18
22
25 |
3300
2990
2570
2200
1970
1680
1780
1460
1310 |
1.00
1.10
1.25
1.45
1.60
1.85
2.0
1.95
2.10 |
JTS97-Y112M-4
JTSF97-Y112M-4
JTSA97-Y112M-4
JTSAF97-Y112M-4 |
209
209
204
209 |
|
15
18
23
25
28
32 |
1800
1500
1410
1270
1150
1030 |
0.95
1.15
1.00
1.05
1.15
1.30 |
JTS87-Y112M-4
JTSF87-Y112M-4
JTSA87-Y112M-4
JTSAF87-Y112M-4 |
144
144
140
144 | |
|
37
41
49
60
63 |
900
800
680
560
535 |
1.45
1.60
1.85
2.20
2.00 |
JTS87-Y112M-4
JTSF87-Y112M-4
JTSA87-Y112M-4
JTSAF87-Y112M-4 |
144
144
140
144 | |
|
29
32
37
42
48
59
64
72
81
92
106
121
148
173 |
1060
960
850
740
655
545
525
465
420
370
325
285
235
200 |
0.85
0.95
1.05
1.20
1.30
1.50
1.15
1.20
1.55
1.75
1.90
1.90
1.85
1.85 |
JTS77-Y112M-4
JTSF77-Y112M-4
JTSA77-Y112M-4
JTSAF77-Y112M-4 |
93.5
93.5
92
93.5 | |
|
88
100
115
135
161 |
380
340
295
255
215 |
0.8
0.9
1.00
1.15
1.25 |
JTS67-Y112M-4
JTSF67-Y112M-4
JTSA67-Y112M-4
JTSAF67-Y112M-4 |
69
69
67.5
69 | |
|
5.5 |
10
12
14
16
22
25
28
32
38 |
3520
3010
2690
2290
1990
1790
1580
1420
1210 |
0.90
1.05
1.15
1.35
1.40
1.50
1.85
2.00
2.30 |
JTS97-Y132S-4
JTSF97-Y132S-4
JTSA97-Y132S-4
JTSAF97-Y132S-4 |
234
234
229
234 |
|
28
32
37
41
49
60
64
74
83
98
120
138 |
1570
1400
1220
1090
930
765
735
640
570
485
395
350 |
0.85
0.95
1.05
1.15
1.35
1.60
1.50
1.65
1.80
2.00
2.40
2.50 |
JTS87-Y132S-4
JTSF87-Y132S-4
JTSA87-Y132S-4
JTSAF87-Y132S-4 |
169
169
165
169 | |
|
43
49
59
81
92
107
122
149
174 |
1010
890
740
570
505
440
390
320
275 |
0.85
0.95
1.10
1.15
1.30
1.4
1.55
1.70
1.95 |
JTS77-Y132S-4
JTSF77-Y132S-4
JTSA77-Y132S-4
JTSAF77-Y132S-4 |
119
119
117
119 |
選型參數表：
|
功率kw |
輸出轉數r/min |
輸出扭矩N.m |
服務系數fB |
型號 |
參考重量kg |
|
7.5 |
14
16
22
25
28
32
38
45
51
55
62
73 |
3660
3130
2720
2440
2160
1940
1650
1400
1240
1160
1040
880 |
0.85
1.00
1.05
1.10
1.35
1.45
1.70
2.00
2.20
1.95
2.10
2.30 |
JTS97-Y132M-4
JTSF97-Y132M-4
JTSA97-Y132M-4
JTSAF97-Y132M-4 |
247
247
242
247 |
|
41
49
60
64
74
83
98
120
138
168 |
1490
1260
1040
1000
870
775
660
540
475
390 |
0.85
1.00
1.20
1.10
1.20
1.35
1.50
1.75
1.85
1.95 |
JTS87-Y132M-4
JTSF87-Y132M-4
JTSA87-Y132M-4
JTSAF87-Y132M-4 |
182
182
178
182 | |
|
81
92
107
122
149
174 |
780
690
600
530
440
375 |
0.85
0.95
1.00
1.15
1.3
1.4 |
JTS77-Y132M-4
JTSF77-Y132M-4
JTSA77-Y132M-4
JTSAF77-Y132M-4 |
132
132
130
132 | |
|
11.0 |
29
32
38
45
51
56 |
3140
2820
2410
2040
1810
1680 |
0.9
1.00
1.15
1.35
1.50
1.35 |
JTS97-Y160M-4
JTSF97-Y160M-4
JTSA97-Y160M-4
JTSAF97-Y160M-4 |
289
289
284
289 |
|
62
74
88
100
119
144 |
1510
1290
1090
960
810
675 |
1.45
1.55
1.80
1.80
1.80
1.75 |
JTS97-Y160M-4
JTSF97-Y160M-4
JTSA97-Y160M-4
JTSAF97-Y160M-4 |
289
289
284
289 | |
|
61
74
84
99
121
139
169 |
1520
1270
1130
960
790
690
570 |
0.80
0.85
0.90
1.05
1.20
1.25
1.35 |
JTS87-Y160M-4
JTSF87-Y160M-4
JTSA87-Y160M-4
JTSAF87-Y160M-4 |
224
224
220
224 | |
|
15.0 |
38
46
52
57
63
75
89
101
121
146 |
3240
2740
2430
2270
2030
1730
1460
1290
1090
910 |
0.85
1.00
1.10
1.00
1.10
1.15
1.35
1.30
1.30
1.30 |
JTS97-Y160L-4
JTSF97-Y160L-4
JTSA97-Y160L-4
JTSAF97-Y160L-4 |
310
310
305
310 |
|
123
141
172 |
1060
930
770 |
0.9
0.95
1.00 |
JTS87-Y160L-4
JTSF87-Y160L-4
JTSA87-Y160L-4
JTSAF87-Y160L-4 |
245
245
241
245 | |
|
18.5 |
52
75
89
101
121
147 |
2990
2130
1800
1590
1340
1120 |
0.9
0.95
1.10
1.05
1.15
1.2 |
JTS97-Y180M-4
JTSF97-Y180M-4
JTSA97-Y180M-4
JTSAF97-Y180M-4 |
348
348
343
348 |
|
22.0 |
89
101
121
147 |
2140
1890
1600
1330 |
0.9
0.9
1.05
1.2 |
JTS97-Y180L-4
JTSF97-Y180L-4
JTSA97-Y180L-4
JTSAF97-Y180L-4 |
356
356
351
356 |
| 頁次：1/2 每頁10條 共15條信息 分頁：[1][2] |
