產品展示

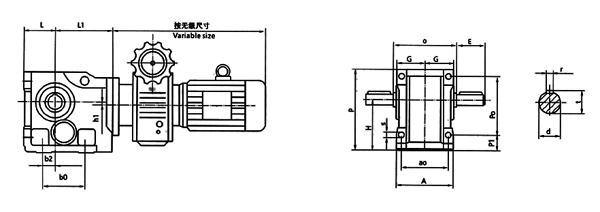

MB-KC組合型減變器外形尺寸
|
機型號 |
中心高 |
外型尺寸 |
軸輸出尺寸 |
安裝尺寸 |
配置無級機型號 | ||||||||||||||
|
H |
A |
P |
h1 |
L |
L1 |
G |
D |
E |
d |
t |
r |
a0 |
b0 |
b2 |
p0 |
p1 |
s | ||
|
KCW-37 |
110 |
120 |
164 |
8.5 |
63 |
139 |
58 |
120 |
50 |
30 |
33 |
8 |
100 |
110 |
28 |
115 |
32 |
11 |
MB02、MB04 |
|
KCW-47 |
112 |
145 |
186 |
7.2 |
71 |
166 |
73 |
150 |
60 |
35 |
38 |
10 |
120 |
130 |
35 |
130 |
37 |
11 |
MB02、MB04、MB07 |
|
KCW-67 |
140 |
170 |
228 |
20 |
90 |
179 |
88 |
180 |
80 |
40 |
43 |
12 |
140 |
120 |
30 |
160 |
45 |
13.5 |
MB04、MB07、MB15 |
|
KCW-77 |
180 |
200 |
228 |
31.3 |
112 |
202 |
103 |
210 |
100 |
50 |
53.5 |
14 |
165 |
150 |
40 |
200 |
55 |
17.5 |
MB07、 MB15、MB22 |
|
KCW-87 |
212 |
230 |
340 |
25.9 |
132 |
257 |
118 |
240 |
120 |
60 |
64 |
18 |
180 |
180 |
55 |
233 |
70 |
22 |
MB07、 MB15、
MB22、MB40 |
|
KCW-97 |
265 |
290 |
417 |
32.3 |
160 |
276 |
148 |
300 |
140 |
70 |
74.5 |
20 |
240 |
240 |
75 |
295 |
83 |
26 |
MB15、MB22、MB40 |
|
KCW-107 |
315 |
340 |
503 |
52 |
200 |
341 |
173 |
350 |
170 |
90 |
95 |
25 |
270 |
280 |
95 |
360 |
95 |
33 |
MB22、MB40、MB55 |
|
KCW-127 |
375 |
400 |
592 |
53 |
225 |
390 |
203 |
410 |
210 |
100 |
106 |
28 |
330 |
350 |
115 |
420 |
110 |
39 |
MB40、MB55、MB75 |
|
無級變速器
機型號 |
配置電機
功率（KW） |
FC系列
機型號 |
減速比i | |||||||||||
|
8.06 |
9.93 |
11.08 |
12.45 |
14.24 |
17.56 |
21.97 |
28.15 |
36.16 |
49.74 |
62.91 |
102.9 | |||
|
輸出轉距 N.M | ||||||||||||||
|
MB02 |
0.12 |
KC37 |
14-7 |
18-9 |
19-9.5 |
21-10.5 |
24-12 |
30-15 |
38-19 |
48-24 |
60-30 |
84-42 |
108-94 |
180-90 |
|
0.18 |
20-10 |
25-12.5 |
28-14 |
32-16 |
36-18 |
44-22 |
56-28 |
72-36 |
92-46 |
128-64 |
160-80 |
| ||
|
MB04 |
0.25 |
30-15 |
36-18 |
40-20 |
44-22 |
48-24 |
58-29 |
70-35 |
100-50 |
130-65 |
170-85 |
|
| |
|
0.37 |
48-24 |
58-29 |
64-32 |
70-35 |
84-42 |
92-46 |
112-56 |
142-71 |
180-90 |
|
|
| ||
|
輸出轉數 r/min |
25-125 |
20-100 |
18-90 |
16-80 |
14-70 |
11.5-57.5 |
9-45 |
7-35 |
5.5-27.5 |
4-20 |
3.2-16 |
2-10 | ||
|
無級變速器
機型號 |
配置電機
功率（KW） |
FC系列
機型號 |
減速比i | ||||||
|
8.24 |
9.82 |
11.28 |
12.42 |
14.37 |
17.13 |
21.65 | |||
|
輸出轉距 N.M | |||||||||
|
MB02 |
0.18 |
KC47 |
|
|
|
|
|
|
|
|
MB04 |
0.25 |
|
|
|
|
|
|
| |
|
0.37 |
|
|
|
|
|
|
| ||
|
MB07 |
0.55 |
70-35 |
84-42 |
96-48 |
106-53 |
120-60 |
144-72 |
184-92 | |
|
0.75 |
84-42 |
100-50 |
116-58 |
126-63 |
146-73 |
174-87 |
220-110 | ||
|
輸出轉數 r/min |
21.5-122.5 |
20.5-102.5 |
18-90 |
16-80 |
14-70 |
11.5-57.5 |
9-45 | ||
|
無級變速器
機型號 |
配置電機
功率（KW） |
FC系列
機型號 |
減速比i | ||||||
|
28.05 |
36.07 |
49.38 |
63.27 |
78.92 |
101.5 |
126.4 | |||
|
輸出轉距 N.M | |||||||||
|
MB02 |
0.18 |
KC47 |
|
|
|
|
200-100 |
258-129 |
320-160 |
|
MB04 |
0.25 |
|
|
|
214-107 |
268-134 |
340-170 |
| |
|
0.37 |
|
|
250-125 |
320-160 |
|
|
| ||
|
MB07 |
0.55 |
240-120 |
306-153 |
416-208 |
|
|
|
| |
|
0.75 |
286-143 |
368-184 |
|
|
|
|
| ||
|
輸出轉數 r/min |
7-35 |
5.5-27.5 |
4-20 |
3.2-16 |
2.5-12.5 |
2-10 |
1.6-8 | ||
|
無級變速器
機型號 |
配置電機
功率（KW） |
FC系列
機型號 |
減速比i | ||||||
|
8.14 |
9.73 |
11.04 |
11.28 |
14.42 |
17.23 |
21.74 | |||
|
輸出轉距 N.M | |||||||||
|
MB04 |
0.25 |
KC67 |
|
|
|
|
|
|
|
|
0.37 |
|
|
|
|
|
|
| ||
|
MB07 |
0.55 |
|
|
|
|
|
|
| |
|
0.75 |
|
|
|
|
|
|
| ||
|
MB15 |
1.1 |
|
|
|
|
|
|
| |
|
1.5 |
124-62 |
148-74 |
168-84 |
186-93 |
220-110 |
264-132 |
332-166 | ||
|
輸出轉數 r/min |
25-125 |
20-100 |
18-90 |
16-80 |
14-70 |
11.5-57.5 |
9-45 | ||
|
無級變速器
機型號 |
配置電機
功率（KW） |
FC系列
機型號 |
減速比i | |||||
|
27.33 |
36.46 |
49.43 |
61.45 |
102.1 |
143.7 | |||
|
輸出轉距 N.M | ||||||||
|
MB04 |
0.25 |
KC67 |
|
|
|
|
|
|
|
0.37 |
|
|
|
|
|
488-244 | ||
|
MB07 |
0.55 |
|
|
|
|
520-260 |
| |
|
0.75 |
|
|
420-210 |
522-261 |
|
| ||
|
MB15 |
1.1 |
|
|
500-250 |
626-313 |
|
| |
|
1.5 |
418-209 |
556-278 |
|
|
|
| ||
|
輸出轉數 r/min |
7.5-37.5 |
5.5-27.5 |
4-20 |
3.2-16 |
2-10 |
1.4-7 | ||
|
無級變速器
機型號 |
配置電機
功率（KW） |
FC系列
機型號 |
減速比i | ||||||
|
8.22 |
9.83 |
11.15 |
12.4 |
14.37 |
17.17 |
21.67 | |||
|
輸出轉距 N.M | |||||||||
|
MB07 |
0.55 |
KC77 |
|
|
|
|
|
|
|
|
0.75 |
|
|
|
|
|
|
| ||
|
MB15 |
1.1 |
|
|
|
|
|
|
| |
|
1.5 |
|
|
|
|
|
|
| ||
|
MB22 |
2.2 |
250-125 |
300-150 |
340-70 |
380-190 |
440-220 |
526-263 |
660-330 | |
|
輸出轉數 r/min |
25-125 |
20-100 |
18-90 |
16-80 |
14-70 |
11.5-57.5 |
9-45 | ||
|
無級變速器
機型號 |
配置電機
功率（KW） |
FC系列
機型號 |
減速比i | |||||
|
27.23 |
36.46 |
49.43 |
61.45 |
102.1 |
175.4 | |||
|
輸出轉距 N.M | ||||||||
|
MB07 |
0.55 |
KC77 |
|
|
|
|
868-434 |
1490-745 |
|
0.75 |
|
|
|
|
1040-520 |
| ||
|
MB15 |
1.1 |
|
|
|
940-470 |
|
| |
|
1.5 |
|
742-371 |
1006-503 |
1252-626 |
|
| ||
|
MB22 |
2.2 |
832-416 |
1114-557 |
|
|
|
| |
|
輸出轉數 r/min |
7.5-37.5 |
5.5-27.5 |
4-20 |
3.3-16.5 |
2-10 |
1.2-6 | ||
|
無級變速器
機型號 |
配置
電機
功率（KW） |
FC系列
機型號 |
減速比i | |||||||
|
8.01 |
9.89 |
11.04 |
12.72 |
14.11 |
17.42 |
22.41 |
27.88 | |||
|
輸出轉距 N.M | ||||||||||
|
MB07 |
0.75 |
KC87 |
|
|
|
|
|
|
|
|
|
MB15 |
1.1 |
|
|
|
|
|
|
|
| |
|
1.5 |
|
|
|
|
|
|
|
| ||
|
MB22 |
2.2 |
|
|
|
|
|
|
|
| |
|
MB40 |
3.0 |
334-167 |
400-200 |
454-227 |
506-253 |
584-292 |
700-350 |
884-442 |
1110-555 | |
|
輸出轉數 r/min |
25-125 |
20-100 |
18-90 |
16-80 |
14-70 |
11.5-57.5 |
9-45 |
7.5-37.5 | ||
|
無級變速器
機型號 |
配置
電機
功率（KW） |
FC系列
機型號 |
減速比i | |||||
|
35.66 |
69.16 |
63.0 |
102.7 |
139.9 |
197.4 | |||
|
輸出轉距 N.M | ||||||||
|
MB07 |
0.75 |
KC87 |
|
|
|
|
|
2014-1007 |
|
MB15 |
1.1 |
|
|
|
|
2518-1259 |
| |
|
1.5 |
|
|
|
2096-1048 |
|
| ||
|
MB22 |
2.2 |
|
1504-752 |
1928-964 |
|
|
| |
|
MB40 |
3.0 |
1444-722 |
1994-997 |
2570-1288 |
|
|
| |
|
輸出轉數 r/min |
5.5-27.5 |
4-20 |
3.2-16 |
2-10 |
1.5-7.5 |
1-5 | ||
|
無級變速器
機型號 |
配置
電機
功率（KW） |
FC系列
機型號 |
減速比i | |||||||
|
8.20 |
9.79 |
11.93 |
12.6 |
14.58 |
17.41 |
22.4 |
27.87 | |||
|
輸出轉距 N.M | ||||||||||
|
MB15 |
1.1 |
KC97 |
|
|
|
|
|
|
|
|
|
1.5 |
|
|
|
|
|
|
|
| ||
|
MB22 |
2.2 |
|
|
|
|
|
|
|
| |
|
MB40 |
3.0 |
|
|
|
|
|
|
|
| |
|
4.0 |
446-223 |
534-267 |
594-297 |
686-343 |
794-397 |
948-474 |
1218-609 |
1516-758 | ||
|
輸出轉數 r/min |
25-125 |
20-100 |
18-90 |
16-80 |
14-70 |
11.5-57.5 |
9-45 |
7.5-37.5 | ||
|
無級變速器
機型號 |
配置
電機
功率（KW） |
FC系列
機型號 |
減速比i | |||||
|
36.87 |
49.16 |
63.0 |
102.7 |
147.4 |
197.4 | |||
|
輸出轉距 N.M | ||||||||
|
MB15 |
1.1 |
KC97 |
|
|
|
|
|
3020-1510 |
|
1.5 |
|
|
|
|
3006-1503 |
| ||
|
MB22 |
2.2 |
|
|
|
3142-1571 |
|
| |
|
MB40 |
3.0 |
|
|
|
4190-2095 |
|
| |
|
4.0 |
2004-1002 |
2674-1337 |
3428-1714 |
|
|
| ||
|
輸出轉數 r/min |
5.5-27.5 |
4-20 |
3.2-16 |
2-10 |
1.5-7.5 |
1-5 | ||
|
無級變速器
機型號 |
配置
電機
功率（KW） |
FC系列
機型號 |
減速比i | |||||||
|
7.99 |
9.87 |
11.02 |
12.7 |
14.02 |
17.31 |
22.27 |
27.7 | |||
|
輸出轉距 N.M | ||||||||||
|
MB22 |
2.2 |
KC107 |
|
|
|
|
|
|
|
|
|
MB40 |
3.0 |
|
|
|
|
|
|
|
| |
|
4.0 |
|
|
|
|
|
|
|
| ||
|
MB55 |
5.5 |
612-306 |
756-378 |
844-422 |
972-486 |
1072-536 |
1324-664 |
1704-852 |
2120-1060 | |
|
輸出轉數 r/min |
25-125 |
20-100 |
18-90 |
16-80 |
14-70 |
11.5-57.5 |
9-45 |
7.5-37.5 | ||
|
無級變速器
機型號 |
配置
電機
功率（KW） |
FC系列
機型號 |
減速比i | |||||
|
35.45 |
48.87 |
70.4 |
102.1 |
146.4 |
196.2 | |||
|
輸出轉距 N.M | ||||||||
|
MB22 |
2.2 |
KC107 |
|
|
|
|
4478-2239 |
6000-3000 |
|
MB40 |
3.0 |
|
|
|
|
5974-2987 |
| |
|
4.0 |
|
|
3830-1915 |
5554-2777 |
|
| ||
|
MB55 |
5.5 |
2712-1356 |
3738-1869 |
5386-2693 |
|
|
| |
|
輸出轉數 r/min |
5.5-27.5 |
4-20 |
3.2-16 |
2-10 |
1.5-7.5 |
1-5 | ||
|
無級變速器
機型號 |
配置電
機功率（KW） |
FC系列
機型號 |
減速比i | |||||||
|
8.18 |
9.77 |
11.09 |
12.73 |
14.42 |
17.23 |
22.43 |
27.67 | |||
|
輸出轉距 N.M | ||||||||||
|
MB40 |
3.0 |
KC127 |
|
|
|
|
|
|
|
|
|
4.0 |
|
|
|
|
|
|
|
| ||
|
MB55 |
5.5 |
|
|
|
|
|
|
|
| |
|
MB75 |
7.5 |
820-410 |
980-490 |
1102-551 |
1276-638 |
1446-723 |
1728-864 |
2250-1125 |
2776-1388 | |
|
輸出轉數 r/min |
25-125 |
20-100 |
18-90 |
16-80 |
14-70 |
11.5-57.5 |
9-45 |
7.5-37.5 | ||
|
無級變速器
機型號 |
配置電
機功率（KW） |
FC系列
機型號 |
減速比i | |||||
|
36.45 |
49.32 |
70.0 |
102.1 |
145.4 |
196.2 | |||
|
輸出轉距 N.M | ||||||||
|
MB40 |
3.0 |
KC127 |
|
|
|
|
|
8000-4000 |
|
4.0 |
|
|
|
|
7910-3950 |
10672-5336 | ||
|
MB55 |
5.5 |
|
|
|
7810-3950 |
11120-5560 |
| |
|
MB75 |
7.5 |
3656-1828 |
4946-2473 |
7016-3508 |
10240-5120 |
|
| |
|
輸出轉數 r/min |
5.5-27.5 |
4-20 |
3.2-16 |
2-10 |
1.5-7.5 |
1-5 | ||
