MB-SC組合型減變器外形尺寸

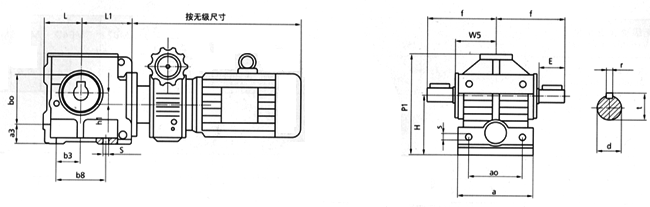

MB-SCW外型及安裝尺寸
|
機型號 |
中心高 |
外型尺寸 |
軸輸出尺寸 |
安裝尺寸 |
配置無級機型號 | ||||||||||||||
|
H |
a |
p1 |
W5 |
o |
h1 |
L |
L1 |
E |
d |
t |
r |
b8 |
a3 |
b0 |
a0 |
f |
s | ||
|
SCW-37 |
88 |
110 |
150 |
55 |
120 |
0 |
80 |
80 |
40 |
20 |
22.5 |
6 |
63 |
40 |
80 |
90 |
100 |
9 |
MB02、MB04 |
|
SCW-47 |
110 |
120 |
165 |
55 |
120 |
11 |
96 |
96 |
50 |
25 |
28 |
8 |
80 |
35 |
80 |
100 |
110 |
11 |
MB02、MB04、MB07 |
|
SCW-57 |
112 |
136 |
188 |
70 |
150 |
24 |
107 |
107 |
60 |
30 |
33 |
8 |
100 |
35 |
100 |
110 |
134 |
11 |
MB02、MB04、MB07 |
|
SCW-67 |
140 |
160 |
240 |
79 |
168 |
24 |
135 |
135 |
70 |
35 |
38 |
10 |
130 |
40 |
130 |
130 |
160 |
14 |
MB04、MB07、MB15 |
|
SCW-77 |
180 |
185 |
300 |
100 |
210 |
33 |
162 |
162 |
90 |
45 |
48．5 |
14 |
135 |
70 |
135 |
135 |
195 |
18 |
MB07、MB15、
MB22、MB40 |
|
SCW-87 |
225 |
250 |
368 |
120 |
250 |
40 |
190 |
190 |
120 |
60 |
64 |
18 |
180 |
82 |
180 |
180 |
245 |
22 |
MB15、MB22、
MB40、MB55 |
|
SCW-97 |
280 |
300 |
455 |
140 |
290 |
53 |
240 |
240 |
140 |
70 |
74.5 |
20 |
235 |
90 |
235 |
250 |
285 |
26 |
MB22、MB40、
MB55、MB75 |
|
無級變速器機型號 |
MB02 |
MB04 |
MB07 |
MB15 |
MB22 |
MB40 |
MB55 |
MB75 | |||||||
|
輸入功率（KW） |
0.12 |
0.18 |
0.25 |
0.37 |
0.55 |
0.75 |
1.1 |
1.5 |
2.2 |
3.0 |
4.0 |
5.5 |
7.5 | ||
|
SC系列
機型號 |
減速比
i |
輸出轉數
r/min |
輸出轉矩 N.M | ||||||||||||
|
SC37 |
23.90 |
8.5-42.5 |
36-18 |
52-26 |
70-35 |
100-50 |
|
|
|
|
|
|
|
|
|
|
32.88 |
6-30 |
50-25 |
74-37 |
98-49 |
|
|
|
|
|
|
|
|
|
| |
|
47.58 |
4.3-21.5 |
60-30 |
92-46 |
|
|
|
|
|
|
|
|
|
|
| |
|
58.24 |
3.5-17.5 |
74-37 |
|
|
|
|
|
|
|
|
|
|
|
| |
|
71.22 |
2.8-14 |
92-46 |
|
|
|
|
|
|
|
|
|
|
|
| |
|
98.65 |
2-10 |
100-50 |
|
|
|
|
|
|
|
|
|
|
|
| |
|
141.8 |
1.5-7.5 |
100-75 |
|
|
|
|
|
|
|
|
|
|
|
| |
|
SC47 |
23.90 |
8.5-42.5 |
|
|
|
|
160-80 |
|
|
|
|
|
|
|
|
|
32.88 |
6-30 |
|
|
|
146--73 |
|
|
|
|
|
|
|
|
| |
|
47.25 |
4.3-21.5 |
|
|
120-60 |
|
|
|
|
|
|
|
|
|
| |
|
58.24 |
3.5-17.5 |
|
112-56 |
150-75 |
|
|
|
|
|
|
|
|
|
| |
|
71.22 |
2.8-14 |
|
130-65 |
|
|
|
|
|
|
|
|
|
|
| |
|
98.65 |
2-10 |
|
160-80 |
|
|
|
|
|
|
|
|
|
|
| |
|
141.8 |
1.5-7.5 |
150-75 |
|
|
|
|
|
|
|
|
|
|
|
| |
|
SC57 |
23.90 |
8.5-42.5 |
|
|
|
|
|
214-107 |
|
|
|
|
|
|
|
|
32.88 |
6-30 |
|
|
|
|
246-123 |
|
|
|
|
|
|
|
| |
|
47.25 |
4.3-21.5 |
|
|
|
184-92 |
|
|
|
|
|
|
|
|
| |
|
58.24 |
3.5-17.5 |
|
|
|
226-113 |
|
|
|
|
|
|
|
|
| |
|
71.22 |
2.8-14 |
|
|
130-65 |
|
|
|
|
|
|
|
|
|
| |
|
98.65 |
2-10 |
|
|
216-108 |
|
|
|
|
|
|
|
|
|
| |
|
141.8 |
1.5-7.5 |
|
234-117 |
|
|
|
|
|
|
|
|
|
|
| |
|
SC67 |
24.11 |
8.5-42.5 |
|
|
|
|
|
|
320-160 |
|
|
|
|
|
|
|
32.68 |
6-30 |
|
|
|
|
|
294-147 |
440-220 |
|
|
|
|
|
| |
|
45.68 |
4.5-22.8 |
|
|
|
|
296-148 |
356-178 |
|
|
|
|
|
|
| |
|
56.74 |
3.5-17.5 |
|
|
|
|
368-184 |
442-221 |
|
|
|
|
|
|
| |
|
72.32 |
2.8-14 |
|
|
|
282-141 |
460-230 |
|
|
|
|
|
|
|
| |
|
98.04 |
2-10 |
|
|
|
324-162 |
|
|
|
|
|
|
|
|
| |
|
137.1 |
1.5-7.5 |
|
|
|
450-225 |
|
|
|
|
|
|
|
|
| |
|
無級變速器機型號 |
MB02 |
MB04 |
MB07 |
MB15 |
MB22 |
MB40 |
MB55 |
MB75 | |||||||
|
輸入功率（KW） |
0.12 |
0.18 |
0.25 |
0.37 |
0.55 |
0.75 |
1.1 |
1.5 |
2.2 |
3.0 |
4.0 |
5.5 |
7.5 | ||
|
SC系列
機型號 |
減速比
i |
輸出轉數
r/min |
輸出轉矩 N.M | ||||||||||||
|
SC77 |
24.11 |
8.5-42.5 |
|
|
|
|
|
|
|
430-215 |
650-325 |
860-430 |
|
|
|
|
32.68 |
6-30 |
|
|
|
|
|
|
|
588-294 |
882-441 |
1170-585 |
|
|
| |
|
45.68 |
4.5-22.5 |
|
|
|
|
|
|
534-267 |
712-356 |
1060-530 |
|
|
|
| |
|
56.74 |
3.5-17.5 |
|
|
|
|
|
|
664-332 |
880-440 |
|
|
|
|
| |
|
72.32 |
2.8-14 |
|
|
|
|
|
564-282 |
846-423 |
1128-564 |
|
|
|
|
| |
|
98.04 |
2-10 |
|
|
|
|
|
646-323 |
1146-573 |
|
|
|
|
|
| |
|
137.1 |
1.5-7.5 |
|
|
|
|
|
900-450 |
|
|
|
|
|
|
| |
|
SC87 |
23.44 |
8.5-42.5 |
|
|
|
|
|
|
|
|
|
|
1124-562 |
1580-790 |
|
|
32.30 |
6-30 |
|
|
|
|
|
|
|
|
|
|
1550-775 |
|
| |
|
46.3 |
4.5-22.5 |
|
|
|
|
|
|
|
|
|
1440-720 |
|
|
| |
|
56.74 |
3.5-17.5 |
|
|
|
|
|
|
|
|
1320-660 |
1770-885 |
|
|
| |
|
70.31 |
2.9-14.5 |
|
|
|
|
|
|
|
|
1640-820 |
|
|
|
| |
|
96.92 |
2-10 |
|
|
|
|
|
|
|
1280-640 |
|
|
|
|
| |
|
138.9 |
1.5-7.5 |
|
|
|
|
|
|
|
1830-915 |
|
|
|
|
| |
|
SC97 |
24.33 |
8.5-42.5 |
|
|
|
|
|
|
|
|
|
|
|
|
2150-1075 |
|
32.31 |
6-30 |
|
|
|
|
|
|
|
|
|
|
|
2180-1090 |
2860-1430 | |
|
46.3 |
4.5-22.5 |
|
|
|
|
|
|
|
|
|
|
1920-960 |
2700-1350 |
3500-1750 | |
|
56.74 |
3.5-17.5 |
|
|
|
|
|
|
|
|
|
|
2360-1180 |
3290-1645 |
| |
|
72.69 |
2.8-14 |
|
|
|
|
|
|
|
|
|
2260-1130 |
3000-1500 |
|
| |
|
96.92 |
2-10 |
|
|
|
|
|
|
|
|
1920-960 |
2550-1275 |
|
|
| |
|
138.9 |
1.5-7.5 |
|
|
|
|
|
|
|
|
2750-1375 |
|
|
|
| |
