C31、C41、C61、C71、C81、C91、C101、C121、C151、系列一級斜齒輪減速機安裝尺寸圖表 |
 |
| |
詳細介紹： |
發布時間：2006/4/18 9:21:14 |
|
| |

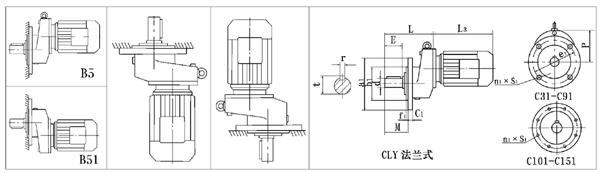

C系列一級斜齒輪減速機安裝尺寸圖表
|
|
A1 |
a |
a0 |
a1 |
b |
b0 |
b1 |
c |
c1 |
d |
E |
e1 |
f1 |
h |
L |
M |
n1 |
P |
r |
S |
S1 |
t |
|
C31 |
52 |
140 |
110 |
160 |
160 |
125 |
110 |
12 |
8 |
20 |
40 |
130 |
3 |
55 |
140 |
50 |
4 |
104 |
6 |
9 |
9 |
22.5 |
|
C41 |
72 |
140 |
110 |
200 |
180 |
135 |
130 |
16 |
12 |
25 |
50 |
165 |
3.5 |
70 |
162 |
60 |
4 |
132 |
8 |
11 |
11 |
28 |
|
C61 |
75 |
155 |
120 |
200 |
180 |
135 |
130 |
20 |
12 |
25 |
50 |
165 |
3.5 |
80 |
170 |
60 |
4 |
138 |
8 |
14 |
11 |
28 |
|
C71 |
105 |
190 |
150 |
250 |
230 |
170 |
180 |
25 |
15 |
40 |
80 |
215 |
4 |
90 |
230 |
90 |
4 |
173 |
12 |
18 |
14 |
43 |
|
C81 |
120 |
210 |
160 |
350 |
290 |
215 |
250 |
35 |
18 |
45 |
90 |
300 |
5 |
100 |
250 |
100 |
4 |
218 |
14 |
18 |
18 |
48.5 |
|
C91 |
133 |
240 |
180 |
400 |
340 |
260 |
300 |
40 |
20 |
50 |
100 |
350 |
5 |
120 |
283 |
110 |
4 |
265 |
14 |
20 |
18 |
53.5 |
|
C101 |
152 |
270 |
210 |
450 |
400 |
310 |
350 |
45 |
22 |
60 |
120 |
400 |
5 |
140 |
327 |
130 |
8 |
305 |
18 |
22 |
18 |
64 |
|
C121 |
175 |
350 |
270 |
450 |
510 |
400 |
350 |
55 |
22 |
75 |
140 |
400 |
5 |
160 |
400 |
150 |
8 |
381 |
20 |
26 |
18 |
79.5 |
|
C151 |
221 |
400 |
300 |
550 |
620 |
500 |
450 |
70 |
25 |
90 |
170 |
500 |
5 |
200 |
477 |
180 |
8 |
462 |
25 |
33 |
22 |
95 | |
|
|
|
