FA37、FA47、FA67、FA77、FA87、FA97、FA107、FA127系列平行軸斜齒輪減速機外形及安裝尺寸 |
 |
| |
詳細介紹： |
發布時間：2006/4/22 13:52:17 |
|
| |

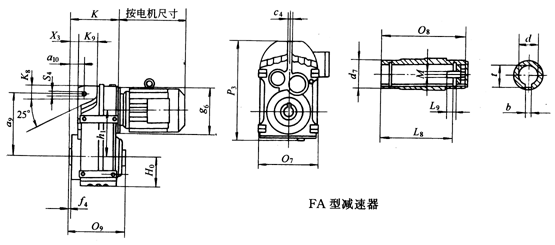

FA系列平行軸斜齒輪減速機外形及安裝尺寸
FA型減速器主要尺寸 /mm
|
型號 |
a9
a10 |
c4
f4 |
g6 |
h1 |
K8
K9 |
O7
O8 |
O9
P3 |
S4
H0 |
X3 |
d
(H7) |
K |
d7 |
L8 |
L9 |
t
b |
M |
|
FA37 |
158
31.5 |
12
2.5 |
120 |
112 |
30
41.5 |
169
120 |
123
250 |
14
74 |
7.5 |
30 |
145 |
45 |
105 |
17 |
33.3
8 |
M10 |
|
FA47 |
170
32 |
12
3 |
120 |
128.1 |
22
54 |
185
150 |
153
272 |
14
80 |
14 |
35 |
165 |
50 |
130 |
22 |
38.3
10 |
M12 |
|
FA67 |
218
41 |
16
3.5 |
160 |
159.5 |
52
67 |
217
180 |
184
343 |
22
97 |
12.5 |
40 |
230 |
55 |
156 |
29 |
43.3
12 |
M16 |
|
FA77 |
278
50 |
20
4 |
200 |
200 |
49
76 |
275
210 |
213
426 |
22
121 |
12 |
50 |
250 |
70 |
183 |
32 |
53.8
14 |
M16 |
|
FA87 |
346
62 |
26
4 |
250 |
246.7 |
57
85 |
336
240 |
243
531 |
22
152 |
16 |
60 |
300 |
85 |
210 |
36 |
64.4
18 |
M20 |
|
FA97 |
395
70 |
30
4 |
300 |
285 |
88
100 |
405
300 |
303
623 |
26
178 |
28 |
70 |
350 |
95 |
270 |
34 |
74.9
20 |
M20 |
|
FA107 |
485
88 |
36
2.5 |
350 |
332.4 |
105
121 |
450
350 |
353
717 |
26
200 |
32 |
90 |
400 |
120 |
310 |
40 |
95.4
25 |
M24 |
|
FA127 |
550
110 |
40
2.5 |
450 |
382.6 |
138
153 |
530
410 |
410
856 |
33
236 |
30 |
100 |
455 |
140 |
370 |
38 |
106.4
28 |
M24 | |
|
|
|
