WJL40、WJL50、WJL63、WJL75、WJL90、WJL110、WJL130、蝸輪蝸桿減速機外形及安裝尺寸 |
 |
| |
詳細介紹： |
發布時間：2006/6/7 17:09:48 |
|
| |

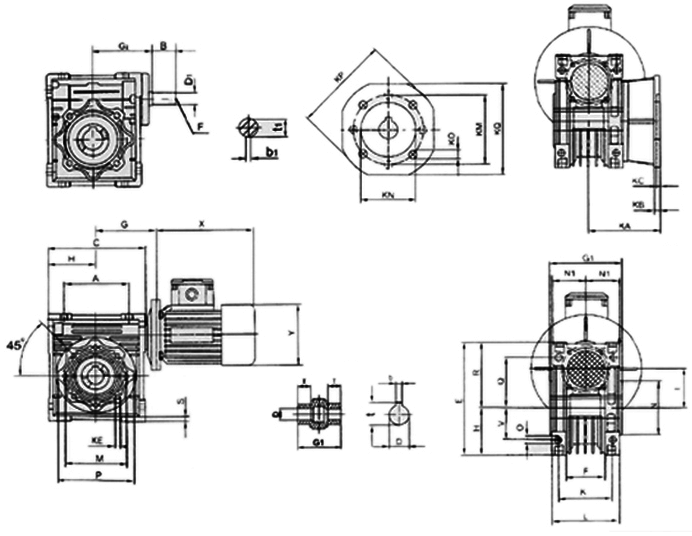

WJL減速器外形及安裝尺寸
|
|
A |
B |
C |
D（H7） |
D1（j6） |
E |
F |
G |
G1 |
G2 |
H |
l |
L |
M |
N(h8) |
N1 |
O |
P |
Q |
R |
|
40 |
70 |
23 |
100 |
19 |
11 |
121.5 |
43 |
70 |
78 |
60 |
50 |
40 |
71 |
75 |
60 |
36.5 |
6.5 |
87 |
55 |
71.5 |
|
50 |
80 |
30 |
120 |
25 |
14 |
144 |
49 |
80 |
92 |
74 |
60 |
50 |
85 |
85 |
70 |
43.5 |
8.5 |
100 |
64 |
84 |
|
63 |
100 |
40 |
144 |
25 |
19 |
174 |
67 |
95 |
112 |
90 |
72 |
63 |
103 |
95 |
80 |
53 |
8.5 |
110 |
80 |
102 |
|
75 |
120 |
50 |
172 |
28 |
24 |
205 |
72 |
112.5 |
120 |
105 |
86 |
75 |
112 |
115 |
95 |
57 |
11 |
140 |
93 |
119 |
|
90 |
140 |
50 |
206 |
35 |
24 |
238 |
74 |
129.5 |
140 |
125 |
103 |
90 |
130 |
130 |
110 |
67 |
13 |
160 |
102 |
135 |
|
110 |
170 |
60 |
252.5 |
42 |
28 |
295 |
- |
160 |
155 |
142 |
127.5 |
110 |
144 |
165 |
130 |
74 |
14 |
200 |
125 |
167.5 |
|
130 |
200 |
80 |
292.5 |
45 |
30 |
335 |
- |
180 |
170 |
162 |
147.5 |
130 |
155 |
215 |
180 |
81 |
16 |
250 |
140 |
187.5 |
|
|
S |
T |
V |
K |
KA |
KB |
KC |
KE |
KM |
KN(H8) |
KO |
KP |
KQ |
b |
b1 |
f |
t |
t1 |
|
40 |
6.5 |
26 |
35 |
60 |
67 |
7 |
4 |
M6×8(n.4) |
87 |
60 |
9(n.4) |
110 |
95 |
6 |
4 |
- |
21.8 |
12.5 |
|
50 |
7 |
30 |
40 |
70 |
90 |
9 |
5 |
M8×10(n.4) |
90 |
70 |
11(n.4) |
125 |
110 |
8 |
5 |
M6 |
28.3 |
16.0 |
|
63 |
8 |
36 |
50 |
85 |
82 |
10 |
6 |
M8×14 (n.4) |
150 |
115 |
11(n.4) |
180 |
142 |
8 |
6 |
M6 |
28.3 |
21.5 |
|
75 |
10 |
40 |
60 |
90 |
111 |
13 |
6 |
M8×14(n.4) |
165 |
130 |
14(n.4) |
200 |
170 |
8 |
8 |
M8 |
31.3 |
27.0 |
|
90 |
11 |
45 |
70 |
100 |
111 |
13 |
6 |
M10×18(n.4) |
175 |
152 |
14(n.4) |
210 |
200 |
10 |
8 |
M8 |
38.3 |
27.0 |
|
110 |
14 |
50 |
85 |
115 |
131 |
15 |
6 |
M10×18(n.4) |
230 |
170 |
14(n.4) |
280 |
260 |
12 |
8 |
M10 |
45.3 |
31.0 |
|
130 |
15 |
60 |
100 |
120 |
140 |
15 |
6 |
M12×21(n.4) |
255 |
180 |
16(n.4) |
320 |
290 |
14 |
8 |
M10 |
48.8 |
33.0 | |
|
|
|
