一、概述

CDJT系列產品由THD高轉差率變極多速三相異步電動機和JDK節能控制箱組成。YHD高專差率變極多速電動機是在YD系列電動機上派生的產品。JSK電控箱具有轉素切換、短路、缺相、過載、過溫、功率、補償及自控接口等功能。改裝置可廣泛用于各種類型抽油機配套使用。

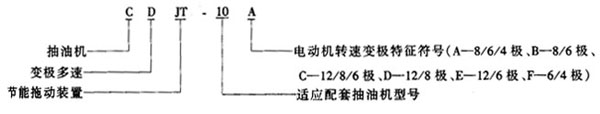

型號含義

型號	額定功率 KW	額定電流 /A	額定轉矩 （r/min）	效率 （%）	功率 因數	堵轉電流	堵轉轉矩	中心高 mm
						額定電流	額定轉矩
CDJT-3A CDJT-3B CDJT-4A CDJT-3C CDJT-4 CDJT-4B CDJT-4C CDJT-5 CDJT-5B CDJT-5C1 CDJT-5E CDJT-6 CDJT-6B CDJT-6C CDJT-10 CDJT-10B CDJT-10C CDJT-10D CDJT-12 CDJT-12B CDJT-12C CDJT-12D CDJT-14 CDJT-14B CDJT-14C1 CDJT-14D1 CDJT-14D2 CDJT-5D CDJT-5C2 CDJT-14	3.3/4/5.5 4.5/6 4.5/6/7.5 3.3/5.5/6.5 7/9/12 5.5/7.5 4/5.5/7.5 8/12/16 5.5/11 6.5/9/13 12/17 14/18.5/24 14/18.5 9.5/14/18.5 22/26/30 16/22 12/18.5/22 16/22 24/26/34 30/37 18.5/30/37 20/30 30/34/42 37/45 22/37/45 24/37 37/45 7/10 8/12/16 25/45	11/10.4/11.9 13.5/13.4 12.2/13.9/15.1 12/13.9/15.1 12/16.1/14.7 22.7/20.1/31.1 16.1/17.4 16.9/16.1/16.7 24/26.8/33 14.6/24.9 20.4/20.6/26.8 30/38 40.9/41.3/46 37/41.3 30.5/30.5/38.9 54.5/56/60.2 43.5/51.2 38.5/40.8/47.4 31/44.7 54.9/57.3/69.1 60.2/76.9 58.6/65.4/73.5 53.6/68.6 69.5/71.5/84.3 78.9/80.7/88.3 73.2/86.2 103/102.4 24.7/31.9 23.4/27.8/31.4 62.4/88.3	710/900/1400 700/900 710/900/1400 450/700/900 700/900/1400 700/900 450/700/900 700/900/1400 700/900 450/700/900 700/900 700/900/1400 700/900 450/700/900 52/54/86 86/87 79/81/83 89/87 82/83/85 88/85 80/86/85 81/83 80/85/86 86/86 82/85/86 83/87 84/89 420/670 450/710/900 470/940	73/78/80 78/80 80/82/84 70/80/82 70/80/65 80/82 72/80/82 78/82/82 82/82 78/81/82 81/82 80/82/88 82/85 79/82/83 82/85/86 86/87 79/81/83 89/87 82/83/85 88/85 80/86/85 83/83 80/85/86 86/86 82/85/86 83/87 84/89 72/68 80/82/88 87/86	0.62/0.75/0.88 0.65/0.85 0.7/0.8/0.9 0.6/0.65/0.82 0.67/0.85/0.9 0.65/0.8 0.5/0.65/0.83 0.65/0.83/0.9 0.7/0.82 0.62/0.82/0.9 0.75/0.83 0.65/0.83/0.9 0.7/0.8/0.8 0.6/0.850.87 0.75/0.83/0.88 0.65/0.75 0.6/0.85/0.85 0.88/0.86 0.81/0.83/0.88 0.86/0.86 0.6/0.81/0.9 0.7/0.8 0.82/0.85/0.88 0.82/0.88 0.6/0.82/0.9 0.6/0.75 0.65/0.75 0.6/0.7 0.65/0.8/0.88 0.7/0.9	4.5/6/6 6/6.5 4.5/6/6 5/7/7.1 6/6/6.5 5.5/6.5 4.5/7/6.5 5.5/7/6.5 6/7 4.2/5.5/5.7 5.5/7 5/5.5/6.5 4.5/6 4/4.5/5 5/5.5/6 6/16.5 4.5/5/7.8 6.5/7.2 6/6.2/7 7.5/7.2 5/7/7.2 4.5/6.5 5.5/6.2/7 6.5/7 5/7/7.2 6.5/7 4.5/6 4.2/4.5 4.5/6/6.5 5/6	2.5/3.5/2.1 3/2.4 2/2.5/2.1 2.5/3.2/2.5 3/3/2.5 3/3.5 2.5/3.5/2.4 3/2.8/2.5 3.2/2.8 3.4/3.2/2.7 3.2/2.8 3/2.5/2.8 2.5/3 2.5/3/2.5 3/2.5/2 2.7/3.2 3.5/2.5/2.5 3/3.5 2.8/3/2.5 3.5/3.5 3.2/3.4/3.4 3.5/3.5 3/2.6/2.6 3.2/3.2 3/2.5/2.5 2.8/3 2.5/3 3/3 3.5/3/3.2 2/2.2	160 160 160 160 180 180 180 200 180 200 200 225 200 250 225 200 280 225 250 250 280 250 280 280 280 280 280 200 225 280
