YSR-Z系列制冷機用耐氟三相異步電動機外形及安裝尺寸 |
 |
| |
詳細介紹： |
發布時間：2007/8/15 17:59:37 |
|
| |

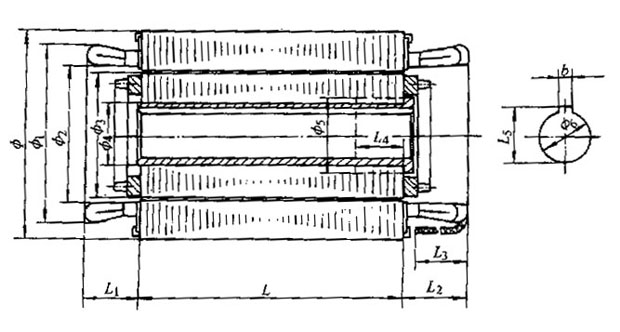

YSR-Z外形尺寸圖（見表3）表3
|
型號 |
定子主要尺寸/mm |
|
有繞組定子 |
引出線 |
|
定子鐵心
外徑φ |
φ1 |
φ2 |
L |
L1 |
L2 |
根數/mm2 |
L3 |
|
YSR0.6-2ZA |
147 |
120 |
85 |
45 |
35 |
40 |
3/1 |
150 |
|
YSR1.1-4ZA |
145 |
135 |
105 |
80 |
40 |
40 |
3/1 |
165 |
|
YSR1.1-4ZB |
145 |
135 |
105 |
80 |
40 |
40 |
3/1 |
165 |
|
YSR2.2-4ZA |
175 |
160 |
120 |
80 |
45 |
50 |
3/1.5 |
170 |
|
YSR3-4ZB |
175 |
160 |
120 |
110 |
45 |
50 |
3/1.5 |
170 |
|
YSR3-4ZA |
250 |
220 |
180 |
50 |
53 |
58 |
3/1.5 |
300 |
|
YSR4-4ZA |
250 |
220 |
180 |
70 |
53 |
58 |
3/1.5 |
300 |
|
YSR4-4ZB |
210 |
188 |
146 |
115 |
60 |
70 |
3/2.5 |
200 |
|
YSR5.5-4ZA |
250 |
220 |
180 |
85 |
53 |
58 |
6/2.5 |
350 |
|
YSR5.5-4ZB |
250 |
220 |
180 |
85 |
53 |
58 |
3/2.5 |
300 |
|
YSR7.5-4ZA |
279.4 |
270 |
220 |
120 |
65 |
75 |
6/2.5 |
400 |
|
YSR7.5-4ZB |
250 |
230 |
185 |
115 |
55 |
60 |
3/4 |
400 |
|
YSR10-4ZA |
245 |
225 |
185 |
155 |
63 |
73 |
6/2.5 |
400 |
|
YSR11-4ZA |
279.5 |
250 |
205 |
130 |
65 |
75 |
6/4 |
400 |
|
YSR13-4ZA |
280 |
250 |
205 |
155 |
70 |
75 |
6/25 |
400 |
|
YSR13-4ZA |
245 |
225 |
145 |
140 |
70 |
75 |
6/4 |
400 |
|
YSR15-4ZA |
245 |
225 |
145 |
160 |
65 |
75 |
6/4 |
400 |
|
YSR15-4ZA |
279.5 |
250 |
205 |
170 |
65 |
75 |
9/4 |
400 |
|
YSR22-4ZA |
326.5 |
290 |
235 |
160 |
80 |
90 |
9/6 |
500 |
|
YSR22-4ZC |
326.5 |
290 |
235 |
160 |
80 |
90 |
6/6 |
350 |
|
YSR30-4ZA |
326.5 |
290 |
235 |
230 |
80 |
90 |
9/6 |
500 |
|
YSR50-4ZA |
368 |
340 |
230 |
230 |
150 |
160 |
3/25 |
300 |
|
YSR55-4ZA |
423 |
375 |
290 |
190 |
110 |
120 |
6/2×6 |
500 |
|
YSR75-4ZA |
423 |
375 |
290 |
250 |
110 |
120 |
6/2×6 |
500 |
|
YSR125-2ZA |
462 |
420 |
285 |
380 |
310 |
320 |
9/35 |
400 |
|
YSR180-2ZA |
493 |
420 |
310 |
330 |
190 |
210 |
9/35 |
400 |
|
型號 |
轉子主要尺寸/mm |
附注 |
|
轉子 |
轉子帶擴孔 |
轉子帶軸套 |
|
φ3 |
φ4 |
φ5 |
L |
φ6 |
L5 |
b |
|
YSR0.6-2ZA |
72.2 |
22 |
35 |
13 |
— |
— |
— |
端面定位圈φ123孔4×φ6.3 |
|
YSR1.1-4ZA |
89.2 |
32 |
— |
— |
20 |
20 |
6 |
|
|
YSR1.1-4ZA |
89.2 |
40 |
— |
— |
28 |
28 |
8 |
|
|
YSR2.2-4ZA |
109.2 |
46 |
— |
— |
32 |
32 |
10 |
|
|
YSR3-4ZB |
109.2 |
46 |
— |
— |
32 |
35.6 |
10 |
|
|
YSR-4ZA |
166 |
60 |
— |
— |
36 |
39.6 |
10 |
|
|
YSR-4ZA |
166 |
60 |
— |
— |
36 |
39.6 |
10 |
|
|
YSR-4ZB |
185.2 |
48 |
— |
— |
30 |
33.3 |
8 |
|
|
YSR-4ZA |
166 |
60 |
— |
— |
45 |
48.6 |
12 |
|
|
YSR-4ZA |
166 |
60 |
— |
— |
40 |
43.6 |
12 |
|
|
YSR-4ZA |
178.8 |
70 |
— |
— |
52 |
57.1 |
16 |
|
|
YSR-4ZB |
106 |
60 |
— |
— |
45 |
48.6 |
12 |
|
|
YSR-4ZA |
160.8 |
60 |
— |
— |
45 |
48.6 |
12 |
有定子鐵心套φ300×110 |
|
YSR-4ZA |
179.1 |
60 |
— |
— |
— |
— |
— |
|
|
YSR-4ZA |
178.8 |
60 |
— |
— |
45 |
48.6 |
12 |
有定子鐵心套φ300×110 |
|
YSR-4ZA |
134.7 |
52 |
— |
— |
— |
— |
— |
|
|
YSR-4ZA |
134.7 |
52 |
— |
— |
— |
— |
— |
|
|
YSR-4ZA |
179.1 |
60 |
— |
— |
— |
— |
— |
|
|
YSR-4ZA |
213.4 |
80 |
— |
— |
— |
— |
— |
|
|
YSR-4ZC |
213.4 |
80 |
— |
— |
45 |
48.3 |
12 |
|
|
YSR-4ZA |
213.4 |
80 |
— |
— |
— |
— |
— |
|
|
YSR-4ZA |
207.8 |
80 |
— |
— |
— |
— |
— |
|
|
YSR-4ZA |
278.3 |
95 |
— |
— |
— |
— |
— |
|
|
YSR-4ZA |
278.3 |
95 |
— |
— |
— |
— |
— |
|
|
YSR-4ZA |
271.4 |
105 |
— |
— |
— |
— |
— |
|
|
YSR-4ZA |
296 |
115 |
— |
— |
— |
— |
— |
有機座
外殼 |
|
|
|
|
