| 本產(chǎn)品詳細參數(shù) |
 |

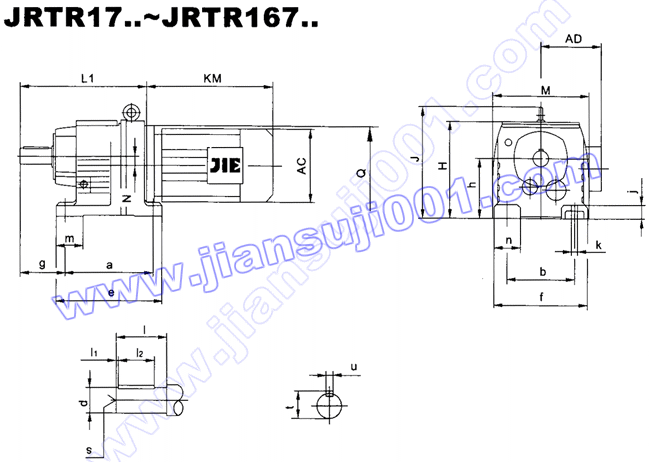

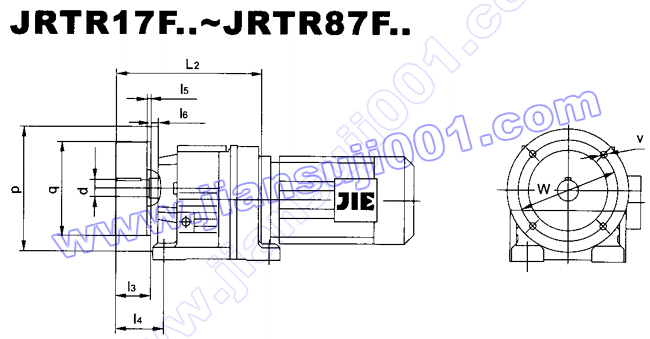

JRTR斜齒輪減速電機安裝尺寸(JRTR17..～JRTR167..,JRTR17F..～JRTR87F..) |
 |
| |
詳細介紹： |
發(fā)布時間：2007/12/8 11:06:34 |
|
| |
|
型號 |
a
b |
e
f |
g |
h |
j |
k |
m
n |
軸伸尺寸 |
|
d |
l |
l1
l2 |
s |
t
u |
|
JRTR17
JRTR17F |
110
110 |
131
135 |
58 |
75-0.5 |
12
|
9 |
28
25 |
20k6 |
40 |
4
32 |
M6 |
22.5
6 |
|
JRTR27
JRTR27F |
130
110 |
152
145 |
75 |
90-0.5 |
18 |
9 |
27
32 |
25k6 |
50 |
3.5
40 |
M10 |
28
8 |
|
JRTR37
JRTR37F |
130
110 |
160
145 |
75 |
90-0.5 |
18 |
9 |
40
35 |
25k6 |
50 |
3.5
40 |
M10 |
28
8 |
|
JRTR47
JRTR47F |
165
135 |
195
170 |
90 |
115-0.5 |
24 |
13.5 |
50
42 |
30k6 |
60 |
3.5
50 |
M10 |
33
8 |
|
JRTR57
JRTR57F |
165
135 |
200
190 |
100 |
115-0.5 |
24 |
13.5 |
60
55 |
35k6 |
70 |
7
56 |
M12 |
38
10 |
|
JRTR67
JRTR67F |
195
150 |
235
21011530 |
100 |
130-0.5 |
30 |
14 |
60
60 |
35k6 |
70 |
7
56 |
M12 |
38
10 |
|
JRTR77
JRTR77F |
205
170 |
245
230 |
115 |
140-0.5 |
30 |
17.5 |
60
60 |
40k6 |
80 |
5
70 |
M16 |
43
12 |
|
JRTR87
JRTR87F |
260
215 |
310
290 |
140 |
180-0.5 |
45 |
17.5 |
90
75 |
50k6 |
100 |
10
80 |
M16 |
53.5
14 |
|
型號 |
法蘭尺寸 |
H |
J |
L1 |
L2 |
M |
N |
Q |
|
p
q |
l3 |
l4 |
l5
l6 |
v
w |
|
JRTR17
JRTR17F |
120
80j6 |
40 |
66 |
3
8 |
6.5
100 |
134 |
/ |
207 |
215 |
140 |
0 |
/ |
|
JRTR27
JRTR27F |
120
80j6 |
50 |
81 |
3
8 |
6.5
100 |
147 |
/ |
193 |
199 |
151 |
3.4 |
120 |
|
JRTR37
JRTR37F |
120
80j6 |
50 |
81 |
3
8 |
6.6
100 |
151 |
/ |
201 |
207 |
145 |
10.1 |
120 |
|
JRTR47
JRTR47F |
140
95j6 |
60 |
90 |
3
10 |
9
115 |
187 |
/ |
235 |
235 |
178 |
14 |
160 |
|
JRTR57
JRTR57F |
160
110j6 |
70 |
100 |
3.5
10 |
9
130 |
187 |
/ |
257 |
257 |
202 |
11.2 |
160 |
|
JRTR67
JRTR67F |
200
130j6 |
70 |
100 |
3.5
12 |
11
165 |
212 |
243 |
280 |
280 |
215 |
20.7 |
160 |
|
JRTR77
JRTR77F |
250
180j6 |
80 |
115 |
4
15 |
13.5
215 |
228 |
269 |
300 |
300 |
235 |
15.9 |
200 |
|
JRTR87
JRTR87F |
300
230j60 |
100 |
140 |
4
16 |
13.5
265 |
295 |
345 |
372 |
372 |
297 |
12.6 |
250 |
|
型
號 |
a
b |
e
f |
g |
h |
j |
k |
m
n |
軸伸尺寸 |
H |
J |
L
M |
N |
Q |
|
d |
l |
l1
l2 |
s |
t
u |
|
JRTR97 |
310
250 |
365
340 |
160 |
225-0.5 |
55 |
22 |
100
90 |
60m6 |
120 |
5
110 |
M20 |
64
18 |
368 |
418 |
440
348 |
10.2 |
300 |
|
JRTR107 |
370
290 |
440
400 |
185 |
250-0.5 |
65 |
26 |
125
110 |
70m6 |
140 |
7.5
125 |
M20 |
74.5
20 |
408 |
475 |
495
409 |
20.4 |
350 |
|
JRTR137 |
410
340 |
490
450 |
220 |
315-1 |
70 |
33 |
130
110 |
90m6 |
170 |
5
160 |
M24 |
95
25 |
495 |
562 |
589
458 |
25.1 |
400 |
|
JRTR147 |
500
380 |
590
530 |
260 |
355-1 |
80 |
39 |
150
150 |
110m6 |
210 |
15
180 |
M24 |
116
28 |
565 |
637 |
695
540 |
33.4 |
450 |
|
JRTR167 |
580
500 |
670
660 |
270 |
425-1 |
100 |
39 |
160
160 |
120m6 |
210 |
5
200 |
M24 |
127
32 |
675 |
749 |
790
670 |
59.9 |
550 | |
|
|
|
